Stiebel Eltron Accelera 300 E Heat Pump Water Heater

Stiebel Eltron Accelera 300 E Heat Pump Water Heater

2

SKU 233059

by Stiebel Eltron

Save $600.00

$3,199.00

$3,199.00 - $3,199.00

$3,199.00

$2,599.00

$2,599.00 - $2,599.00

$2,599.00

Availability:

in stock

Earn 3 points for every $1 spent as a Rise Rewards Member

Are You a Pro?

Get exclusive Rise PRO™ pricing and benefits

Helps Limit Water Usage

Helps You Save Money

Helps You Save Energy

Professional Installation Recommended

Authorized Retailer

30-Day Happiness Guarantee

FREE Shipping Over $99

The Stiebel Eltron Accelera 300 E Heat Pump Water Heater represents the pinnacle of water heating technology, engineered in Germany and leading the European market for over 30 years. Unlike traditional models, this heat pump water heater is designed to operate primarily on its heat pump mechanism rather than relying on a backup element, ensuring maximum efficiency. It offers an impressive reduction in hot water costs by up to 80%, providing both comfort and the lowest possible energy expenditure. Moreover, the Accelera 300 E is backed by a robust 10-year warranty, emphasizing its reliability and long-term performance.

Capacity: 79.8 gal
Refrigerant: R134a
Operating temperature range: 42°F to 108°F (6°C to 42°C)
Water connection: 1˝ male NPT
Condensate connection: 3/4˝ male NPT to ½˝ barbed elbow
Safety condenser: Wraps around outside
Voltage / Frequency: 220–240 V / 60 Hz
Circuit breaker: 15 A

* Installation location has to have a minimum size of 10´ x 10´ x 8´.

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Quantity

Specifications

General Data	Accelera® 220 E	Accelera® 300 E
Item No.	233058	233059
Operating temperature range	42°F to 108°F (6°C to 42°C)
DHW temperature	149 °F (65°C)
Air flow rate	324 CFM
Sound power level*	60 dB
Sound pressure level* @ 3.3 feet (1 m)	52 dB(a)
Capacity	58 gal (220 l)	79.8 gal (302 l)
Refrigerant / fi lling weight	R134a / 850 g	R134a / 900 g
Height	60 7/8˝ (1545 mm)	75¼˝ (1913 mm)
Diameter	27 1/8˝ (690 mm)
Height of unit when tilted incl. packing	74 1/8˝ (1895 mm)	87¾˝ (2230 mm)
Weight dry	264.5 lb (120 kg)	297.6 lb (135 kg)
Weight wet	748.5 lb (339.5 kg)	956.6 lb (433.9 kg)
Water connection	1˝ male NPT
Condensate connection	3/4˝ male NPT to ½˝ barbed elbow
Safety condenser	Wraps around outside
Operating pressure, water side	87 psi (600 kPa)
High pressure cutoff, refrigerant side	348.1 psi (2.4 MPa)
Electrical Data & Performance
Voltage / Frequency	220–240 V / 60 Hz
Circuit breaker	15 A
Rated current compressor & fan	2.7 A
Rated power consumption compressor and fan (2)	650 W
Rated power, booster heater	1500 W
Heating output, heat pump3	approx. 1700 W
Energy factor	3.05	3.39
DOE est. yearly energy usage / cost	1040 kWh	1289 kWh
DOE est. yearly energy cost	$169	$155
First hour rating	50.3 gal (190.4 l)	74.2 gal (280.8 l)

* Sound Power Level measures the sound energy emitted by a source. Sound Pressure Level (SPL) measures the sound level (loudness) at a distance from the source. SPL varies depending on the acoustic environment and the accuracy of the measurement device.

1 Tamb = 107.6 °F (42 °C) Twater = 149 °F (65 °C) / 240 V

2 Test point to DIN 8497 at 59 °F (15 °C) air temperature, 70% rel. humidity and 113 °F (45 °C) water temperature.

3 Test point at 59 °F (15 °C) air temperature, 70% rel. humidity, heating up water from 59 °F (15 °C) to 149 °F (65 °C), according to EN 255 T3, 240 V / 60 Hz

Heat Pump Comparison and Mode

"Hybrid" Water Heaters		Accelera Heat Pump Water Heaters

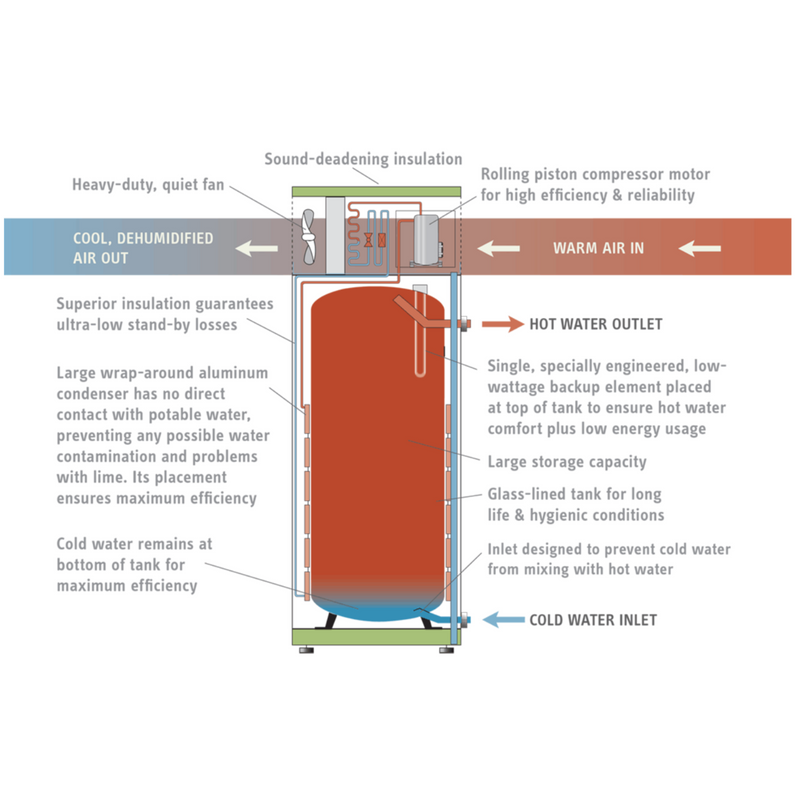

Their most efficient mode provides the greatest savings they're capable of. Water heaters operates only with the heat pump. "Hybrids" must be set to the correct mode in order to either save energy or provide comfort.	Heat Pump Mode	This is the main setting. Accelera is engineered to satisfy 90% of hot water needs through the use of the heat pump alone. In cases of high demand, one specially-designed electric "booster" element is located at the very top of the tank. Positioned near the hot water draw point, the element has been designed and engineered to run as little as possible so that comfort is maintained and savings maximized.
Two standard electric elements activate for fast water temperature recovery. System allows heat pump to work once demand has been met via electric elements.	Hybrid Mode	Accelera is designed to satisfy hot water needs without having to pick a setting. There is nothing to remember to choose i order to have both comfort and savings.
Twi standard electric elements activate sooner and stay on longer than in their "hybrid" mode.	High Demand Mode	Accelera is engineered to work as a harmonious whole to offer comfort and savings without having to ask, "what setting do I need to choose today?" In cases of extraordinarily high demand the Accelera 220 E has a user accessible booster function that will engage the booster element.
Heat pump is disabled and, just like a standard electric tank, two electric elements heat the water. "Hybrids" don't have active defrost and must enable this mode so the evaporator can defrost. This mode is also selected if the heat pump fails.	Standard Mode	Accelera was engineered so that the heat pump doesn't need to be disabled for a defrost cycle. We also engineered for reliability. Why pay extra for a heat pump water heater if you're just going to end up with a standard electric tank?
Water heater maintains a very low temperature in the tank then reheats the water the day before you return.	Vacation Mode	Our super-insulated tank keeps water hot in an Accelera during a 2-week vacation for less than $4. No one has t worry if vacation mode was set to wake up on the correct day.

Downloads

Brochure

Spec Sheet

Installation Guide

Electrical Requirements
