Vents-US TwinFresh Expert RW1-85-2 V.2 Ductless Energy Recovery Ventilator

Vents-US TwinFresh Expert RW1-85-2 V.2 Ductless Energy Recovery Ventilator

1 review
SKU TwinFresh Expert RW1-85-2 V.2
by Vents-US
Sale Sale
$1,009.00
$1,009.00 - $1,009.00
$1,009.00
$925.00
$925.00 - $925.00
$925.00
Fall into savings 🍂. Save 10% on select products with harvest at Checkout. Brand and product exclusions apply

New to Rise? Get to know us.

Why Is This Product On Rise?

The TwinFresh Expert RW1-85-2 V.2 is the most powerful Twinfresh unit with up to 50 CFM to ensure filtration and supply of fresh air into the room as well as exhaust of stale air with energy regeneration. WI-Fi enabled (Android and IOS app available) the RW1-85-2 V.2 can be paired with multiple units for whole-home coverage or single rooms up to 500 sq ft.

Benefits:

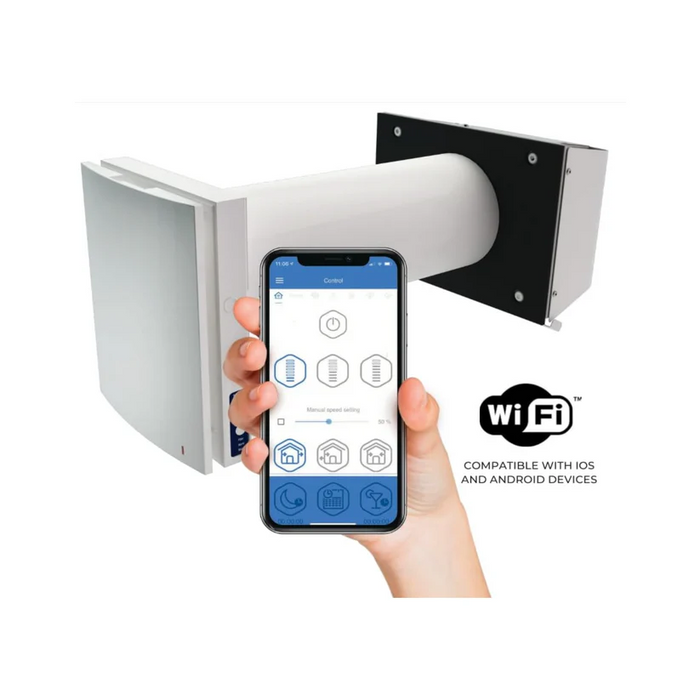

  • Controlled by Android or iOS smartphone through the cloud server from any part of the world.
  • One TwinFresh Expert unit in ventilation mode can serve rooms up to 500 sq. ft
  • Wi-Fi communication between several ventilators for coordinated operation.
  • Efficient supply and exhaust single-room ventilation with air flow up to 50 CFM.
  • High-tech ceramic heat exchanger with regeneration efficiency up to 70 %.
  • Reversible DC motors with low energy demand from 3.78 W and safe voltage of 12V.

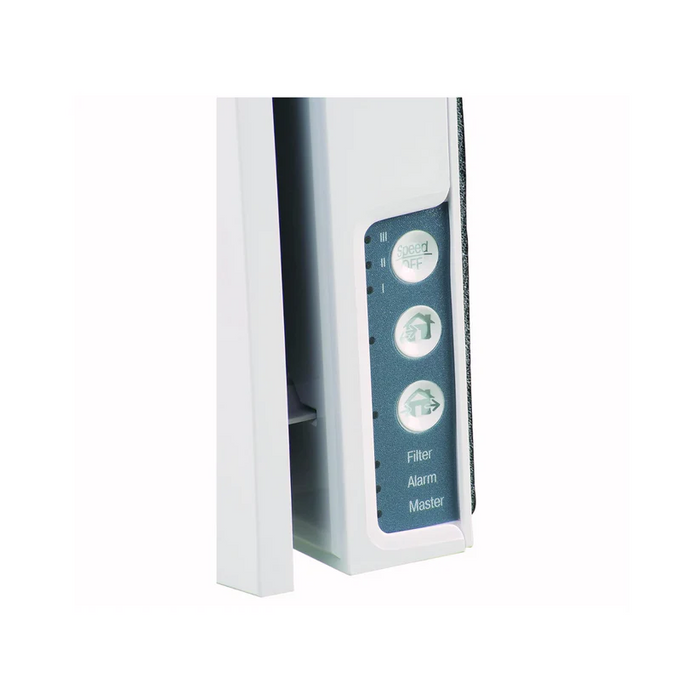

  • Integrated control system.
  • Silent operation from 0.5 Sones.
  • Easy mounting and maintenance.
  • Air cleaning with total MERV 5 class filters (optionally MERV 14 filter).
  • Rated for non-stop operation.
  • Frost- and condensate-free.

More about this product (provided by the manufacturer)

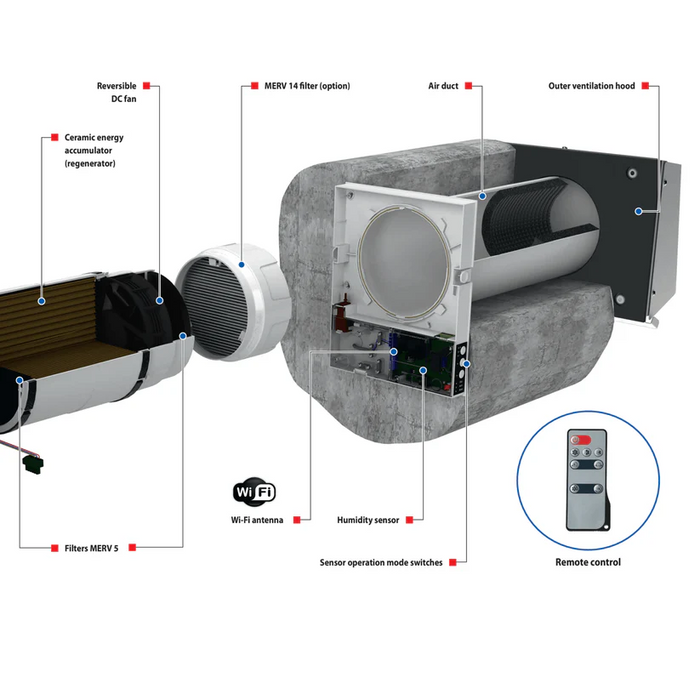

Ceramic energy accumulator (regenerator)

The high-tech ceramic regenerator with heat recovery efficiency up to 70 % is used for heating of supply air by means of the exhaust air heat recovery. Due to its honeycomb structure, the unique heat exchanger has larger air contact area and excellent heat conducting and accumulating properties. One of the best heat recovery efficiency on the market due to innovative hexagonal structure of the heat exchanger cells



Reversible DC fan

Air is supplied or exhausted by a reversible axial fan with DC motor. Due to DC technology the fan has outstanding low energy demand. The fan is powered by safe voltage 12 V. The motor has integrated overheating protection and ball bearings for long service life.



Air filters

The two integrated air filters with total filtration rate MERV 5 provide supply and exhaust air filtration. The filters prevent ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial treatment. The filter cleaning is done with a vacuum cleaner or water flushing. MERV 14 filter with the filtration class PM2.5 99 % is available as a specially ordered accessory.*



* Reduces the air flow down to 40 CFM when installed.

Specifications and Important Details

Speed123Max
Voltage / 50 (60) Hz [V]1~100-240
Power consumption [W]3.784.716.8510.55
Air flow in ventilation mode [CFM]9182950
Air flow in regeneration mode [CFM]491525
RPM1050160022702930
Sound pressure level @ 10 ft [Sones]0.50.71.52.1
Transported air temperature [°F]from +5 up to +104
Regeneration efficiency [%]≤ 70
Regenerator typeCeramic
FilterMERV 5, MERV 14 (option)

Documentation and Tear Sheets

Vents US Twinfresh User Manual

Vents US Twinfresh Installation

Twinfresh 85-2 V2 Brochure



Dive into more

Discover more about this product category, find related articles, videos, photos, rebates and more!

Product Research

Articles and Videos

Photos with Ductless Energy Recovery Ventilator

Applicable Rebates

Check to see if rebates or incentives in your area apply to save even more on this product
Customer Reviews
5.0 Based on 1 Reviews
5 ★
100%
1
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
i
i
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
T
06/05/2022
Tony
United States United States
I recommend this product

I'd go for it. It's low power consumption, and not hard to install

About the minimal hassle install option for an ERV that is available out there. I needed an ERV for a garage workshop, and searched exhaustively. I landed on this TwinFresh ERV, and decided to go for it. They (VENTS-US) said the install was trivial. Well, yeah compared to a four port ERV, but note you need some equipment you might not have laying around: - 6.5" bimetallic hole saw (get @amazon,I needed to go through stucco mesh) - LONG drill bit to go through your entire wall, so as to locate the front panel mounting while centering the arbor drill of the hole saw all the way through the wall, especially if you have empty space between inner and outer walls. I need 6" bit to get through my 5.75" total wall thickness. Install tips: - the directions want you to maintain an 1/8" drop at minimum so as to drain any condensate. Not hard to implement as your 6.5" hole will create a slight larger hole, you can file some outer wall away to ensure this drop, and the interface to the inner panel and outer vent hood will tolerate this slight small angle from perfectly flush mount - one design flaw is the vent outer tube has no way to fasten itself in the wall hole you create. Check out the manual, there is no hint. And if you don't come up with something, when you push in the inner cartridge, you'll push the tube away. You'll need to figure something out. - my wall was 5.75" thick, and the cartridge which needs to be fully enclosed by the outer tube is ~10". So basically I had to fab a wooden frame to space the inside panel away from the wall about 2.5", and then let the outer tube stick into outer vent hood about another 2". It worked out OK. p.s. this wooden frame allowed me to drill screw holes into 3 sides, so I could screw in some pointy drywalls screws, which basically stick into the outer tube, thereby keeping it locked in place. Above problem solved! Overall, it took four hours, but that's because I had to make this frame box, and it took me time to drill and measure and cut everything. You will need some way to cut/trim the outer vent tube. I used a cut-off tool from the inside diameter, guided by some painters tape on the outside. I did get some initial questions answered by good tech support from VENTS-US website contact form.
