Wood Stove
A stove with a steel shell that houses a controlled fire of wood or other carbonaceous material that is used to heat a home.

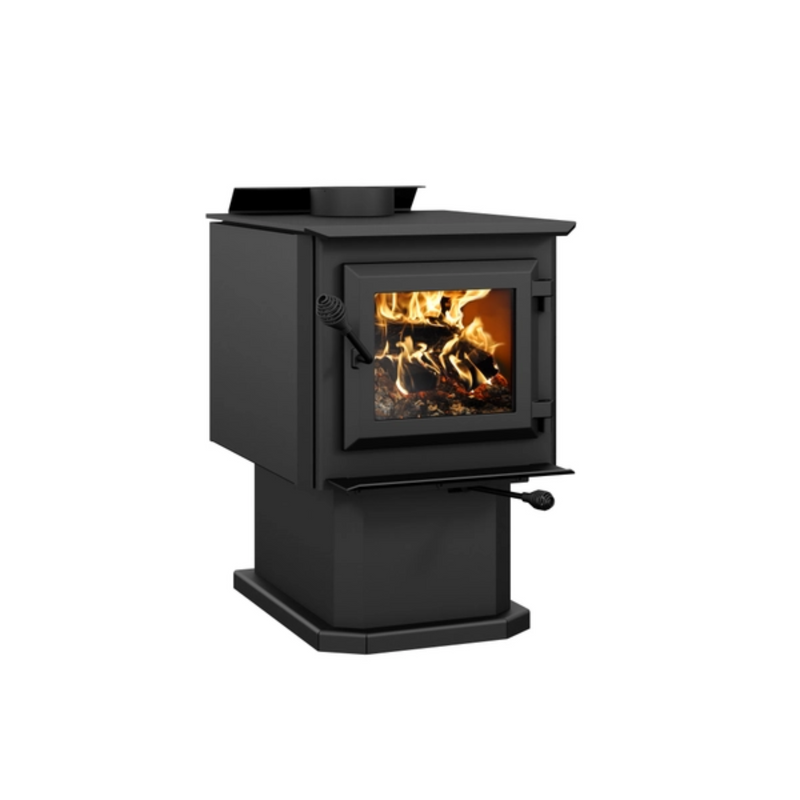

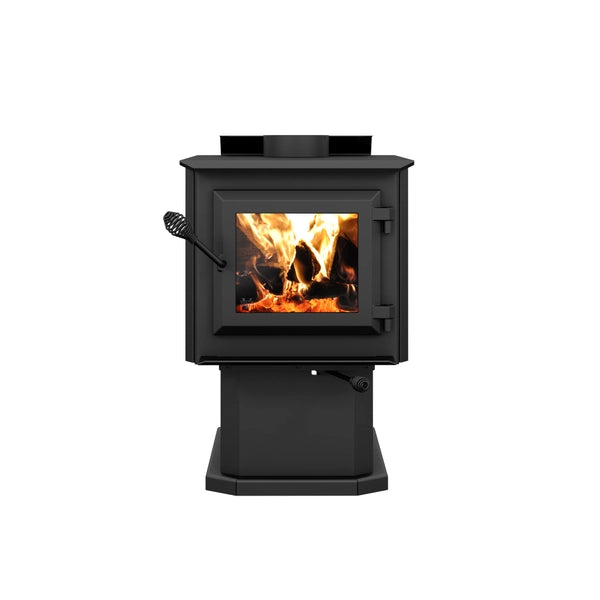

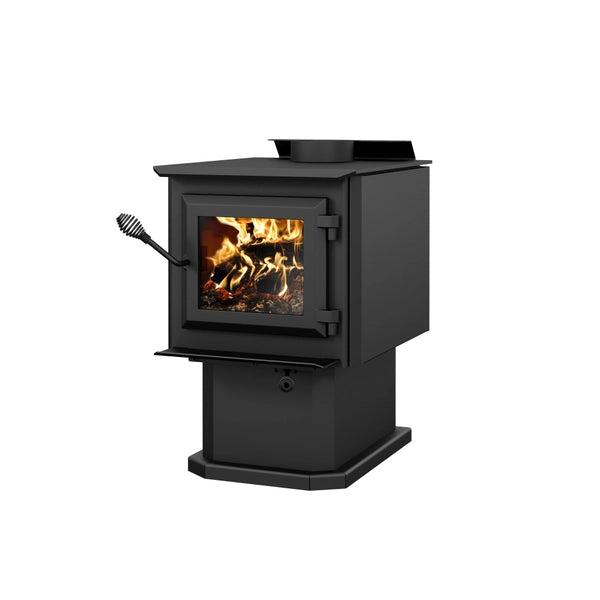

The Ventis HES140 Wood Burning Stove is designed for efficient heating and is capable of warming spaces ranging from 250 to 1,200 square feet. This small wood stove, mounted on a pedestal, is EPA-certified with a low emission rate of just 1.8 g/h, ensuring it meets environmental standards. Built with solidity and quality in mind, it features non-catalytic combustion technology, a durable cast iron door, and added stainless steel heat shields. The stove also includes a top heat deflector and side panels, making it a reliable and sturdy choice for heating.
Order Processing and Shipping
Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.
Fuel type | Dry cordwood (16" recommended) |
---|---|
Recommended heating area | 250 - 1,200 ft² |
Overall firebox volume | 1.8 ft³ |
EPA loading volume | 1.55 ft³ |
Maximum burn time | 5 h |
Maximum heat output - dry cordwood | 45,000 BTU/h |
Minimum overall heat output rate | 12,124 BTU/h (3.55 kW) |
Alcove installation approved | Yes |
Mobile home approved | Yes, with fresh air intake |
Certified according to applicable standards | CAN/USA accredited laboratory |
Overall dimension (Width) | 20" |
Overall dimension (Height) | 30 1/4" |
Overall dimension (Depth) | 29" |
Premium quality blower included (CFM) | Optional |
Combustion technology | Non-catalytic |
Stainless-steel secondary-air system | Yes |
Flue outlet diameter | 6" |
Distance - center of the flue outlet to back unit | 6 5/8" |
Distance - center of the flue outlet to side unit | 10" |
Recommended chimney diameter | 6" |
Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
Minimum chimney height | 12' |
Door type | Single, glass with cast iron frame |
Door opening size (Width) | 12" |
Door opening size (Height) | 7 5/8" |
Glass type | Ceramic glass |
Glass surface - W x H | 10 1/8" x 8 1/4" |
Steel thickness - body | 3/16" |
Steel thickness - top | 5/16" |
Firebox size (Width) | 14 1/4" |
Firebox size (Height) | 11 3/4" |
Firebox size (Depth) | 19 1/8" |
Log positioning | Loading over depth |
Maximum log length | 17" |
Firebox lined with refractory bricks | Yes |
Baffle type | High quality vermiculite |
High-efficiency certified appliance | Yes, EPA 2020 certified |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | EPA |
Canadian Standard (safety) | ULC S627 |
USA Standard (safety) | UL 1482, UL 737 |
Warranty | Limited lifetime |
Shipping weight | 282 lb (128 kg) |
Clearances | United States | |
---|---|---|
Single Wall Pipe | Double Wall Pipe | |
Clearance - Back wall | 12" | 6" |
Clearance - Side wall | 12" | 12" |
Clearance - Corner | 11" | 6" |
Clearance - Base of the unit to ceiling** | 84" | 84" |
