Ventis HEI240 Wood Insert with Faceplate Bundle

SKU VB00012-VBA1550
by Ventis
Original price $2,949.00 - Original price $2,999.00
Original price
$2,949.00
$2,949.00 - $2,999.00
Current price $2,949.00
Availability:
in stock
Availability:
in stock

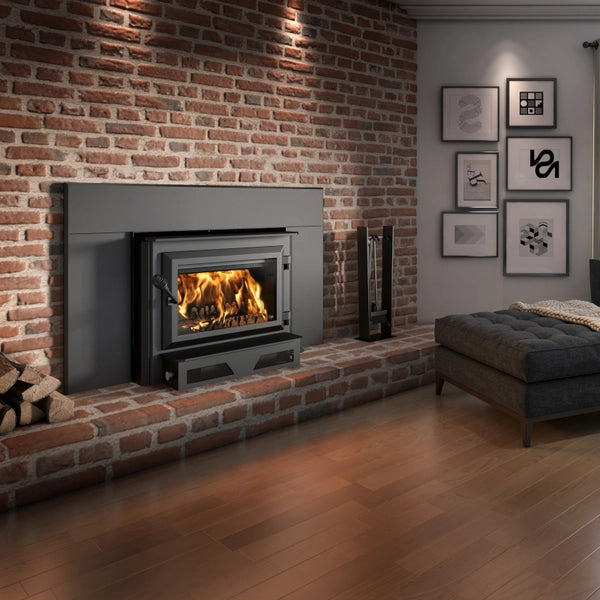

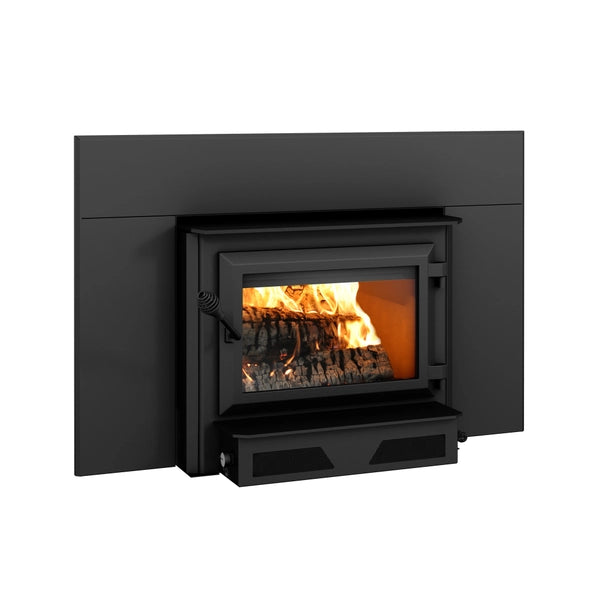

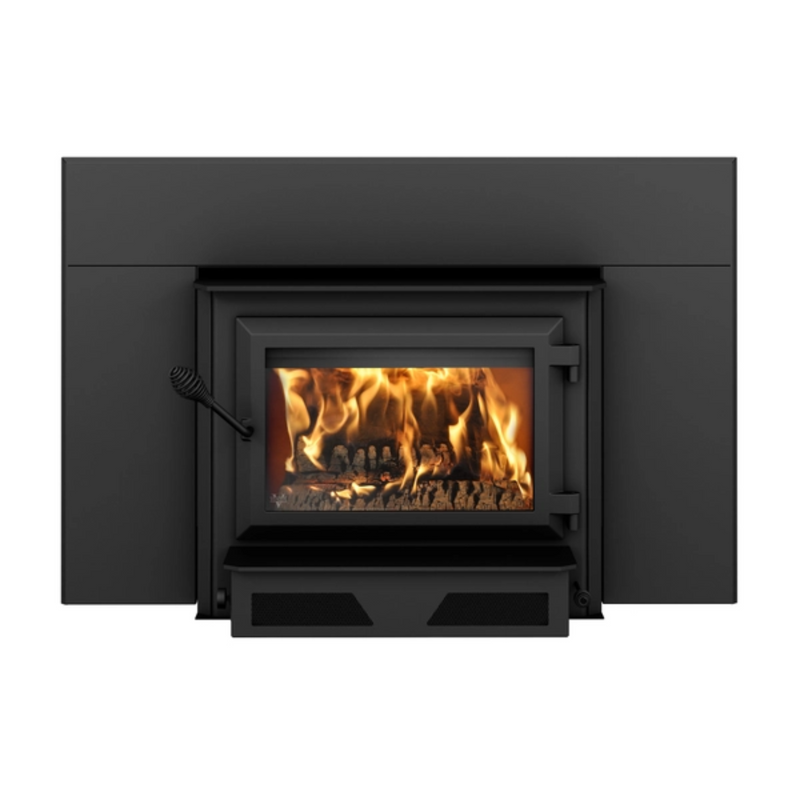

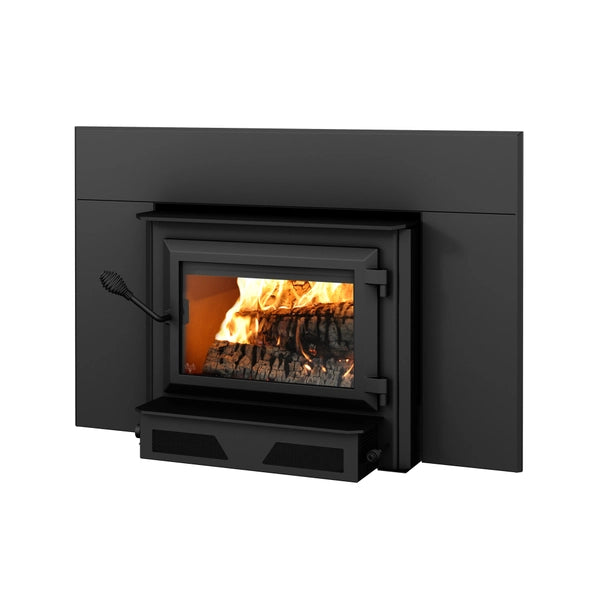

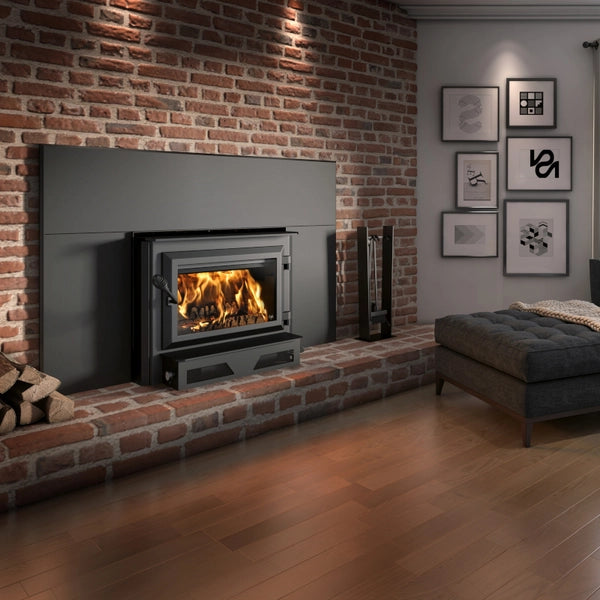

The Ventis HEI240 Wood Insert with Faceplate Bundle is a medium-sized wood insert designed for efficient home heating. With a recommended heating area of 500 to 2,100 square feet, it offers a perfect balance of power and versatility for various room sizes. This EPA-certified insert operates at 2.3 g/h, featuring non-catalytic combustion technology for clean burning. The unit is built with a cast iron door and a stainless steel heat shield, ensuring durability and longevity. It also comes with a 144 CFM blower to enhance heat distribution throughout your space.

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Fuel TypeDry cordwood (16" recommended)
Recommended Heating Area500 - 2,100 ft²
Overall Firebox Volume2.4 ft³
EPA Loading Volume1.95 ft³
Maximum Burn Time8 h
Maximum Heat Output (Dry Cordwood)75,000 BTU/h
Minimum Overall Heat Output Rate14,200 BTU/h (4.16 kW)
Premium Quality Blower Included (CFM)144 CFM included
Certified According to Applicable StandardsCAN/USA accredited laboratory
Combustion TechnologyNon-catalytic
Stainless-Steel Secondary-Air SystemYes
Flue Outlet Diameter6"
Recommended Chimney Diameter6"
Type of ChimneyCAN/ULC S629, UL 103 HT (2100 °F)
Minimum Chimney Height12"
Overall Dimension (Width)28 1/2"
Overall Dimension (Height)22 7/8"
Overall Dimension (Depth)26 3/4"
Door TypeSingle, glass with cast iron frame
Door Opening Size (Width)17 1/2"
Door Opening Size (Height)9"
Glass TypeCeramic glass
Glass Surface - W x H16 7/8" x 10 1/4"
Steel Thickness - Body3/16"
Steel Thickness - Top5/16"
Maximum Overall Heat Output Rate44,500 BTU/h (13.04 kW)
Average Overall Efficiency - Dry Cordwood (HHV)72 %
Average Overall Efficiency - Dry Cordwood (LHV)77 %
Optimum Efficiency79 %
Optimum Heat Transfer Efficiency76 %
Average Particulate Emission Rate2.3 g/h
Average CO69 g/h
Firebox Size (Width)21"
Firebox Size (Height)11 7/8"
Firebox Size (Depth)14 1/2"
Maximum Log Length20"
Log PositioningLoading over width
Firebox Lined with Refractory BricksYes
Baffle TypeHigh quality vermiculite
Minimum Fireplace Opening (Width)28 7/8"
Minimum Fireplace Opening (Height)23 3/8"
Minimum Fireplace Opening (Depth)15 3/4"
High-Efficiency Certified ApplianceYes, EPA 2020 certified
Canadian Standard (Emissions)CSA B415.1-10
USA Standard (Emissions)EPA
Canadian Standard (Safety)ULC S628
USA Standard (Safety)UL 1482, UL 737
WarrantyLimited lifetime
Shipping Weight399 lb (181 kg)







Clearances
Combustible side wall to unit16"
Combustible side mantle to unit9"
Combustible top mantle to unit27"
Top of the unit to a 12" combustible mantle shelf27"
Base of the unit to ceiling**84"
Floor protection in front of the unit (from door opening)18"

Documentation
