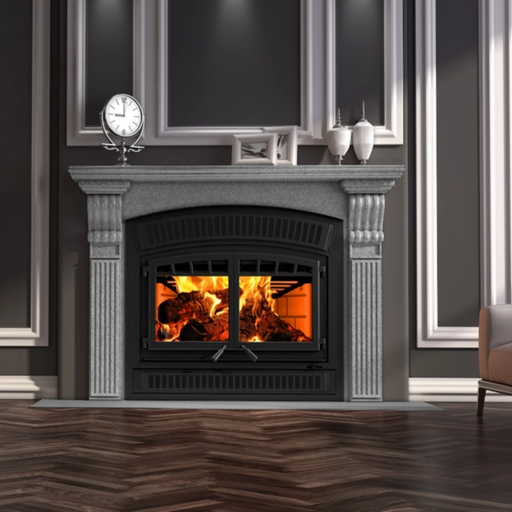

The Ventis HE350 High-Efficiency Wood Stove Bundle is designed for those seeking a powerful heating solution for large spaces. With a recommended heating area of 1,000 to 2,800 square feet, it features a patented intelligent air control mechanism and a luxurious fireplace effect, thanks to its large glass surface. EPA 2020 certified, this wood stove utilizes non-catalytic combustion technology, ensuring efficient and eco-friendly performance. The bundle includes essential components like a 176 CFM blower, an 8" stainless steel anchor plate, and a fresh air intake adapter, making it an all-inclusive solution for your heating needs.
Order Processing and Shipping
Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.
Optimum efficiency | 70% |
---|---|
Average particulate emission rate | 1.6 g/h |
EPA loading volume | 4.28 ft³ |
Maximum heat output (dry cordwood) | 95,000 BTU/h |
Maximum overall heat output rate | 43,000 BTU/h (12.6 kW) |
Minimum overall heat output rate | 16,900 BTU/h (5.0 kW) |
Average overall efficiency (dry cordwood, HHV) | 64.00% |
Average overall efficiency (dry cordwood, LHV) | 69% |
Optimum heat transfer efficiency | 69% |
Recommended heating area | 1,000 - 2,800 ft² |
Average CO | 159.0 g/h |
Maximum burn time | 11 h |
Fuel type | Dry cordwood (16" recommended) |
Overall firebox volume | 4.28 ft³ |
Baffle type | High density insulation board |
Recommended chimney diameter | 8" |
Flue outlet diameter | 8" |
Firebox size (Height) | 25 3/8" |
Firebox size (Width) | 25 3/8" |
Firebox size (Depth) | 17 7/8" |
Overall dimension (Height) | 43 3/8" |
Overall dimension (Width) | 45 1/4" |
Overall dimension (Depth) | 31 3/4" |
Door opening size (Height) | 12 3/4" |
Door opening size (Width) | 33" |
High-efficiency certified appliance | Yes, EPA 2020 certified |
Warranty | Lifetime limited |
Minimum chimney height | 15" |
Maximum log length | 25" |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | EPA / ASTM WK47329 |
Canadian Standard (safety) | ULC S610 |
USA Standard (safety) | UL 127 |
Moulded refractory panels | No |
Shipping weight | 555 lb (252 kg) |
Log positioning | Loading over width |
Glass surface (W x H) | 29 3/4" x 13 1/2" |
Stainless-steel secondary-air system | Yes |
Combustion technology | Non-catalytic |
Certified according to applicable standards | CAN/USA accredited laboratory |
Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
Door type | Double, glass with cast iron frame |
Premium quality blower included (CFM) | 176 CFM included |
Glass type | Ceramic glass |
Clearances | Canada | United States |
---|---|---|
Base of the unit to ceiling** | 84" | 84" |
Combustible side mantle to unit | 8" | 8" |
Combustible top mantle to unit | 84" | 84" |
Combustible side wall to unit | 24" | 24" |
Base of the unit to a combustible shelf | N.A. or 52" non-combustible |
