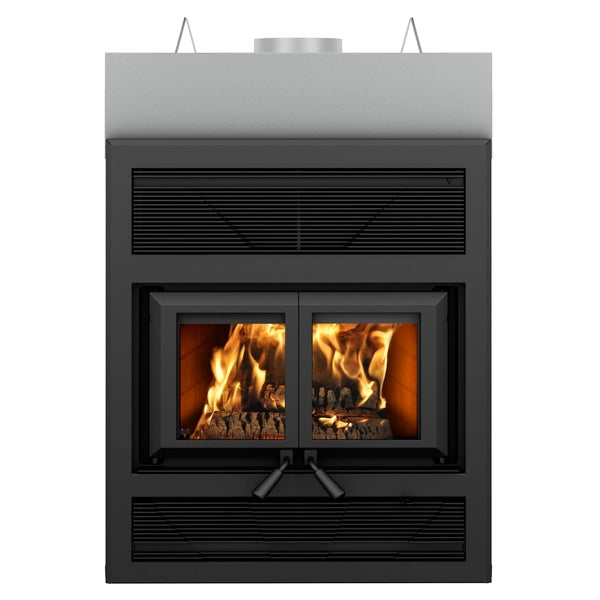

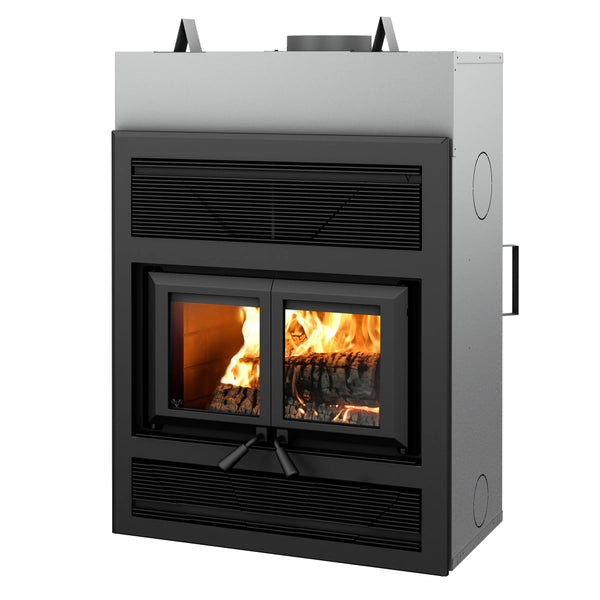

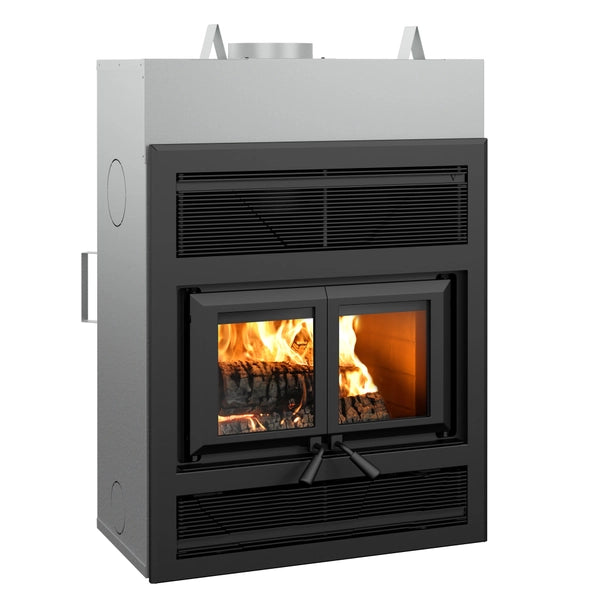

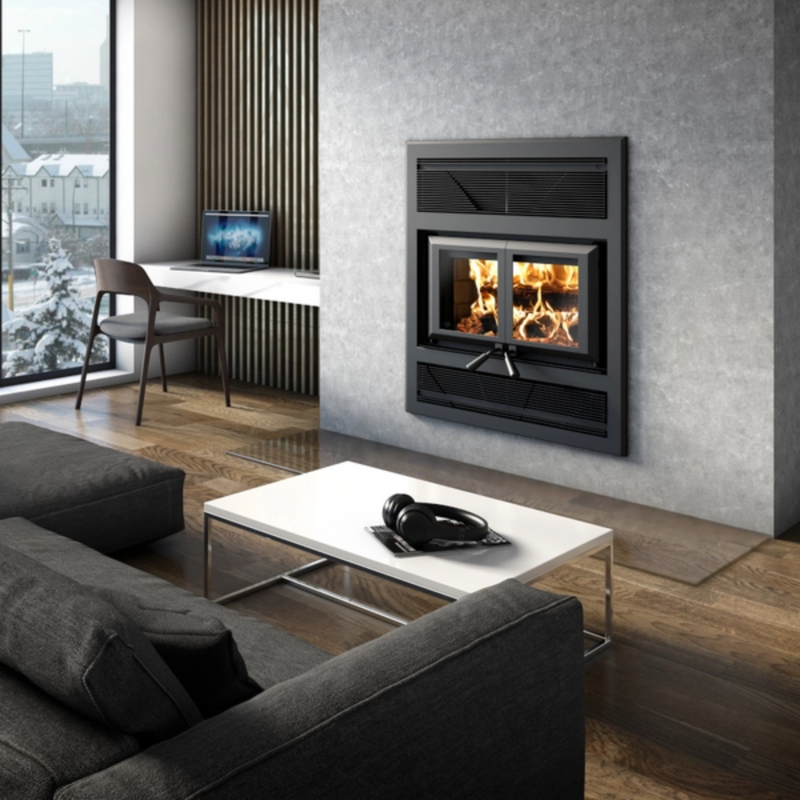

Ventis HE325 High-Efficiency Fireplace Bundle

SKU VB00018-Bundle
by Ventis
Original price $5,299.00 - Original price $5,299.00
Original price
$5,299.00
$5,299.00 - $5,299.00
Current price $5,299.00
Availability:
in stock

The Ventis HE325 High-Efficiency Fireplace Bundle is designed for those who prioritize both performance and style in home heating. With a recommended heating area of 750 to 2,500 square feet, this fireplace stands out for its large, high-efficiency design, making it one of the most powerful options available. Its retractable double doors offer a unique and engaging fire-viewing experience, while the non-catalytic combustion technology ensures an efficient burn. EPA 2020 certified and authorized for installation on the Island of Montreal, this bundle includes premium features like molded refractory stones, a 176 CFM blower, and a fresh air intake adapter, all combining to deliver exceptional warmth and ambiance.

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Optimum efficiency (1)(2)72%
Average particulate emission rate (3)0.99 g/h
EPA loading volume2.61 ft³
Maximum heat output - dry cordwood (4)85,000 BTU/h
Maximum overall heat output rate (4)(5)49,654 BTU/h (14.55 kW)
Minimum overall heat output rate (4)(5)18,057 BTU/h (5.29 kW)
Average overall efficiency - dry cordwood (HHV)(5)(6)65.70%
Baffle typeCeramic panel
Recommended chimney diameter6"
Flue outlet diameter6"
Firebox size (Height)16 7/8"
Firebox size (Width)18 7/8"
Firebox size (Depth)17"
Overall dimension (Height)49 1/8"
Overall dimension (Width)41 3/4"
Overall dimension (Depth)28 7/8"
Door opening size (Height)10 1/4"
Door opening size (Width)20 3/4"
High-efficiency certified applianceYes, EPA 2020 approved
WarrantyLifetime limited
Minimum chimney height15"
Maximum log length18"
Average overall efficiency - dry cordwood (LHV)(5)(7)70.80%
Optimum heat transfer efficiency (8)68%
Recommended heating area (9)750 - 2,500 ft²
Average CO (10)50.1 g/h
Maximum burn time (9)9 h
Fuel typeDry cordwood (16" recommended)
Overall firebox volume3.0 ft³
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S610
USA Standard (safety)UL 127
Moulded refractory panelsYes
Shipping weight530 lb (240 kg)
Log positioningLoading over width
Glass surface - W x H18 3/4" x 11"
Stainless-steel secondary-air systemYes
Combustion technologyNon-catalytic
Certified according to applicable standardsCAN/USA accredited laboratory
Type of chimneyCAN/ULC S629, UL 103 HT (2100 °F)
Door typeDouble, glass with cast iron frame
Premium quality blower included (CFM)176 CFM included
Glass typeCeramic glass







ClearancesCanadaUnited States
Base of the unit to ceiling**80"80"
Combustible side mantle to unit8"8"
Combustible top mantle to unitN/AN/A
Combustible side wall to unit21"21"
Base of the unit to a combustible shelfN.A. or 48" non-combustibleN.A. or 48" non-combustible
