by Ventis

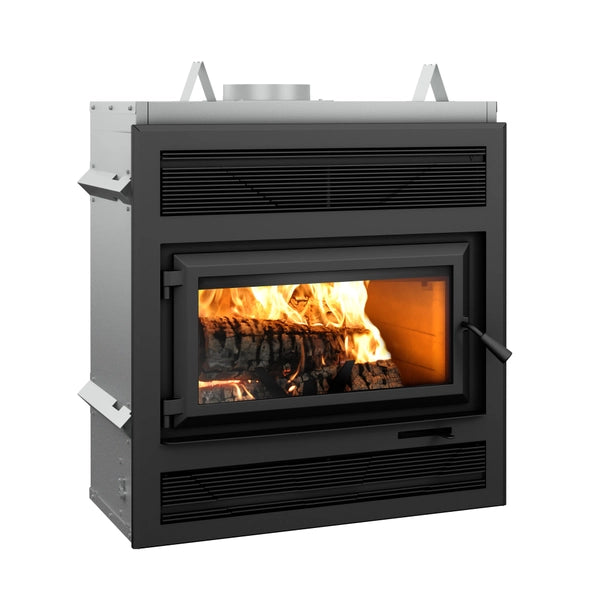

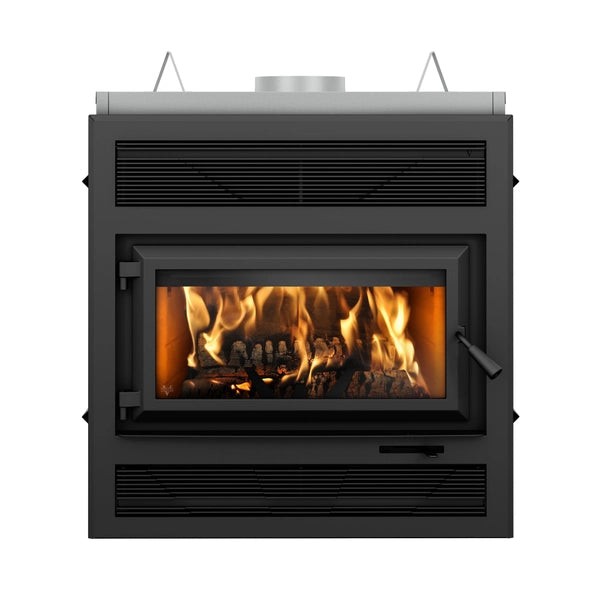

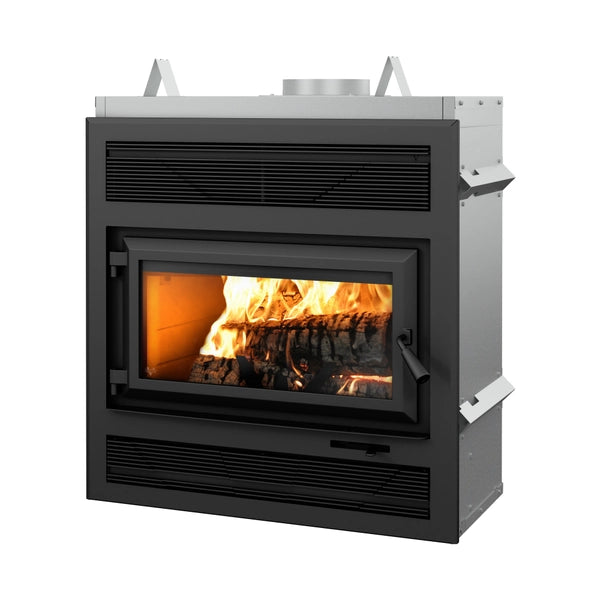

Ventis HE250R High-Efficiency Fireplace Bundle

SKU VB00015-Bundle
Sold out
Original price $5,687.00 - Original price $5,687.00
Original price
$5,687.00
$5,687.00 - $5,687.00
Current price $5,687.00
Availability:
Out of stock

Ventis HE250R High-Efficiency Fireplace Bundle is designed to provide optimal heating performance, covering areas from 750 to 2,200 square feet. This high-efficiency fireplace features a large classic single-door design and operates with non-catalytic combustion technology. It is EPA 2020 certified, ensuring clean and efficient heating. The bundle includes a 176 CFM blower, molded refractory stones, a 6" Ventis stainless steel anchor plate, and a fresh air intake adapter. Its modern faceplate, firestop made of high-density insulation board, and distinctive louvers complete the package, making it both functional and stylish.

$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

Optimum Efficiency70%
Average Particulate Emission Rate1.2 g/h
EPA Loading Volume1.94 ft³
Maximum Heat Output (Dry Cordwood)80,000 BTU/h
Maximum Overall Heat Output Rate60,700 BTU/h (17.79 kW)
Minimum Overall Heat Output Rate12,700 BTU/h (3.72 kW)
Average Overall Efficiency (Dry Cordwood, HHV)64.00%
Baffle TypeHigh density insulation board
Recommended Chimney Diameter6"
Flue Outlet Diameter6"
Firebox Size (Height)12 1/8"
Firebox Size (Width)20 3/8"
Firebox Size (Depth)13"
Overall Dimension (Height)37 1/4"
Overall Dimension (Width)36 3/4"
Overall Dimension (Depth)28 5/8"
Door Opening Size (Height)10 9/16"
Door Opening Size (Width)25 3/8"
High-Efficiency Certified ApplianceYes, EPA 2020 approved
WarrantyLifetime limited
Minimum Chimney Height15"
Maximum Log Length20"
Average Overall Efficiency (Dry Cordwood, LHV)68.00%
Optimum Heat Transfer Efficiency68%
Recommended Heating Area750 - 2,200 ft²
Average CO Emissions98 g/h
Maximum Burn Time8 h
Fuel TypeDry cordwood (16" recommended)
Overall Firebox Volume2.5 ft³
Canadian Standard (Emissions)CSA B415.1-10
USA Standard (Emissions)EPA
Canadian Standard (Safety)ULC S610
USA Standard (Safety)UL 127
Shipping Weight495 lb (225 kg)
Log PositioningLoading over width
Glass Surface (W x H)24" x 10 5/8"
Stainless-Steel Secondary-Air SystemYes
Combustion TechnologyNon-catalytic
Certified According to Applicable StandardsCAN/USA accredited laboratory
Type of ChimneyCAN/ULC S629, UL 103 HT (2100 °F)
Door TypeSingle, glass with cast iron frame
Premium Quality Blower Included (CFM)176 CFM included
Glass TypeCeramic glass







ClearancesCanadaUnited States
Base of the unit to ceiling**80"80"
Combustible side mantle to unit8"8"
Combustible top mantle to unit8"8"
Combustible side wall to unit13"13"
Base of the unit to a combustible shelf58"58"
