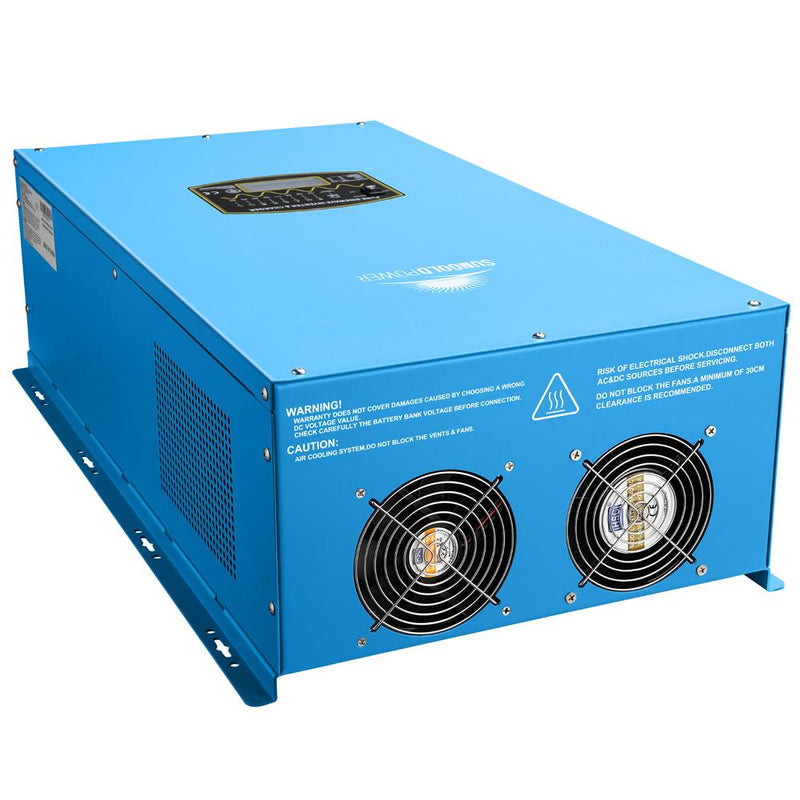

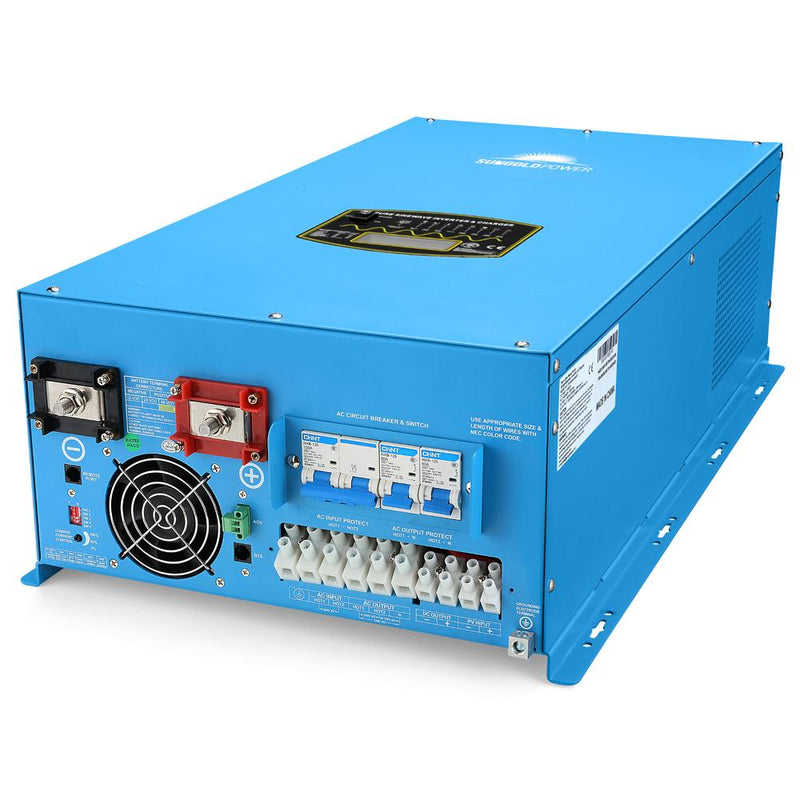

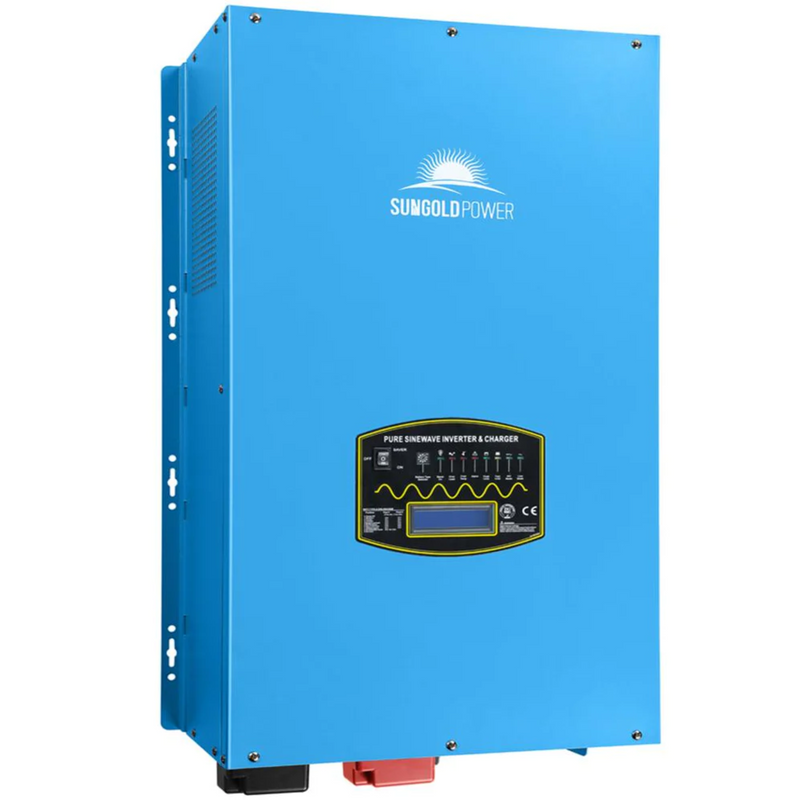

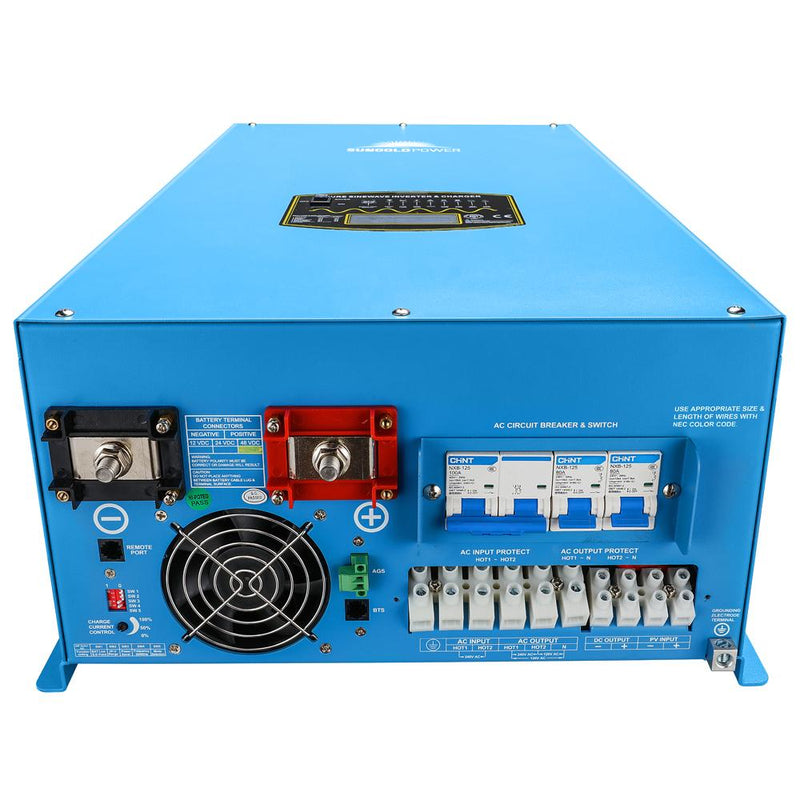

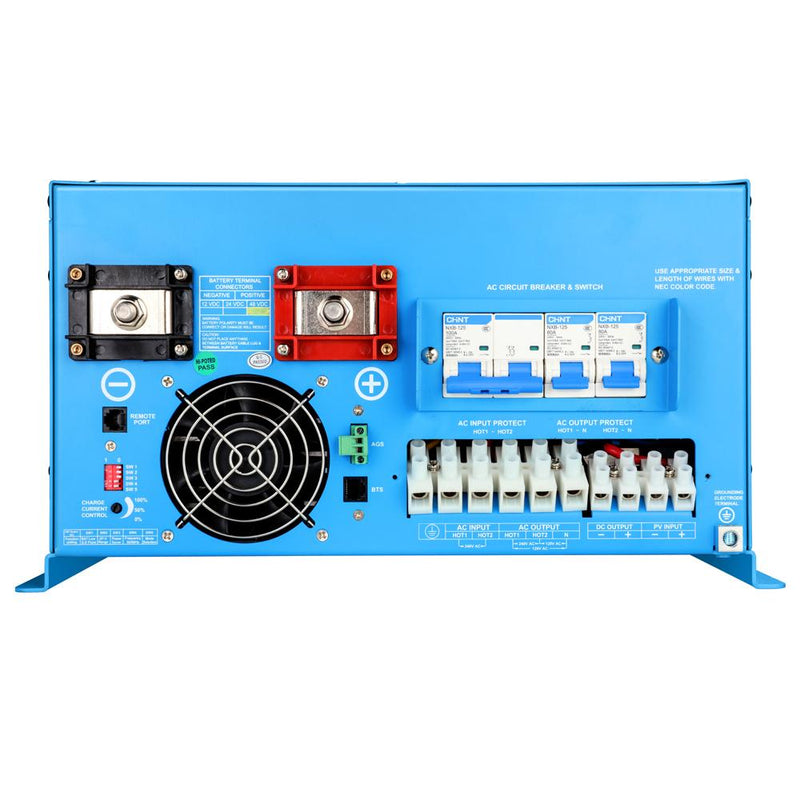

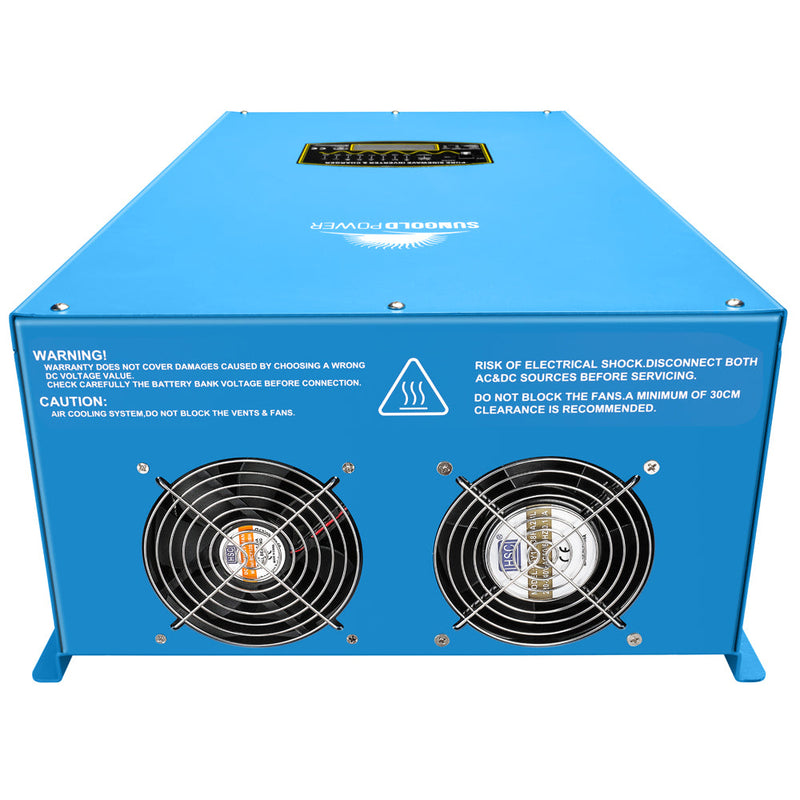

SunGoldPower 10000W DC 24V Split Phase Pure Sine Wave Inverter With Charger

SKU LFPV10K24V240VSP
Original price $2,985.00 - Original price $2,985.00
Original price
$2,985.00
$2,985.00 - $2,985.00
Current price $2,985.00
Availability:
in stock

The SunGoldPower 10000W DC 24V Split Phase Pure Sine Wave Inverter With Charger provides an uninterrupted power supply for your home during power outages. With this inverter, you'll never have to worry about losing power again. You can keep your lights on, your refrigerator running, and your devices charged.

The SunGoldPower 10000W DC 24V Split Phase Pure Sine Wave Inverter With Charger uses pure sine wave technology, which delivers clean and efficient power that won't damage your electronics. This technology ensures that your electronics are powered safely and efficiently.

Features:

  • It is built-in 120 amp battery charger uses AC power, from the grid or from a generator, to recharge different kinds of battery bank.
  • Built-in solar controller, Maximum solar input voltage 145V, Maximum solar input current 60A, can also connect with external controller.
  • Low Frequency Inverter, High Quality, your best choice for your 24V home system.

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
6,728kg
shipping emissions removed
That's like...
17,224
miles driven by an average gasoline-powered car
We fund innovations in...
Direct Air Capture
Bio Oil
Mineralization

Specifications

Main Features
  • 10KW split phase pure sine inverter charger DC 24V AC 240V input AC output 120V/240V
  • Auto Generator Start (AGS)
  • Support Solar Panel with MPPT Function
  • Include Battery Temperature Sensor (BTS) and Remote Control
  • 8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries)
  • Compatible With All kind of Home & Office Appliances
  • Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
  • Built-in transfer switch and battery charge, backup or off grid power solutions
  • AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
  • 4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
  • 8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity
  • 15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator
MAIN SPECIFICATION
Continuous Output Power10.0KW
Surge Rating (20s)30.0KW
Output WaveformPurse Sine Wave
AC OutputAC 120V and AC 240V
AC Input240V (not suitable for AC 120V input )
DC Battery Voltage24Vdc
Solar charger Current60Amp
AC Battery charger120±5Amp
Output Frequency50Hz /60Hz
Typical Transfer Time10ms (MAX)

DC INPUT
Nominal input Voltage24.0Vdc
Minimum Start Voltage20.0Vdc / 21.0Vdc
Low Battery Alarm21.0Vdc / 22.0Vdc
Low battery Trip20.0Vdc / 21.0Vdc
High Voltage Alarm32.0Vdc
Low battery Voltage Restart31.0Vdc
Idle Consumption35W
Power Saver Mode Idle Consumption150W

Charger
Output VoltageDepends on battery type
Battery Initial Voltage for Start Up20-31.4V
Charger Breaker80A
Input Voltage WaveformSine wave (Grid or Generator)
AC input range184-253Vac/140-270Vac
Nominal Input Frequency50Hz or 60Hz (Auto detect)

Solar Charge Controller
Solar Input Voltage Range30-145Vdc
Max.PV Open Circuit Array Voltage145Vdc
Rated Charge Current60A
Over Charge Disconnection29.6V
Over Charge Recovery27.2V
Over Discharge Disconnection21.6V
Over Discharge Reconnectio24.6V

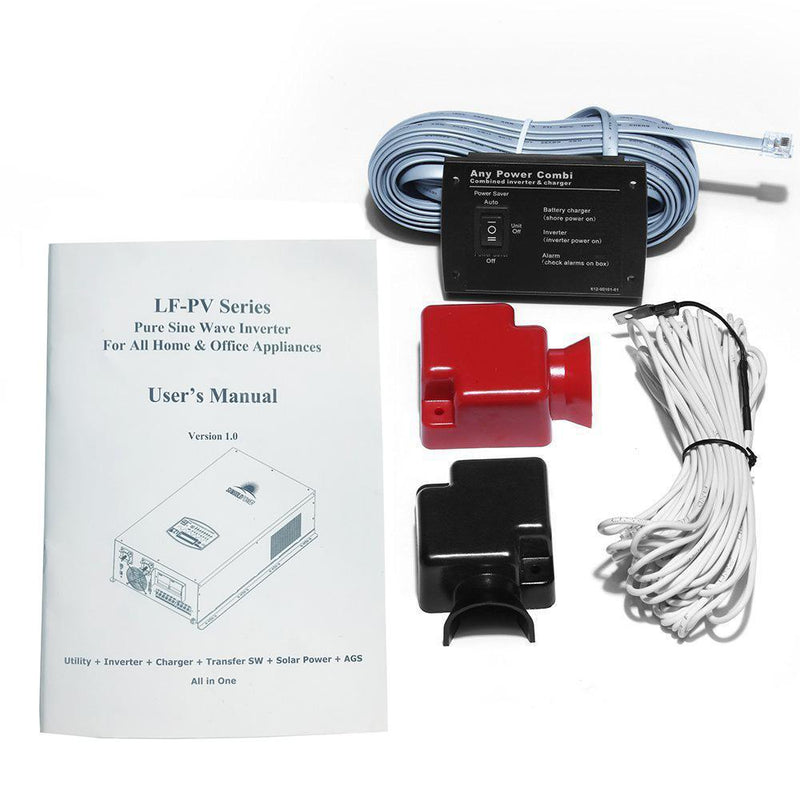

PACKAGING
  • 10000W 24V Split Phase Pure Sine Wave Solar Power Inverter
  • English Manual
  • Remote Control
  • BTS Cable
  • Unit Weight: 149 LB
  • Unit Size: 27.6 x 16.5 x 8inch
  • Shipping Weight: 183LB
  • Shipping Size: 33 x 21.3 x 16inch

Manual
