by Renogy

Renogy 1.2kW Essential Kit - RKIT1200CB-C43D4-A24-US

SKU RKIT1200CB-C43D4-A24-US
Original price $4,899.99 - Original price $4,899.99
Original price
$4,899.99
$4,899.99 - $4,899.99
Current price $4,899.99
Availability:
in stock

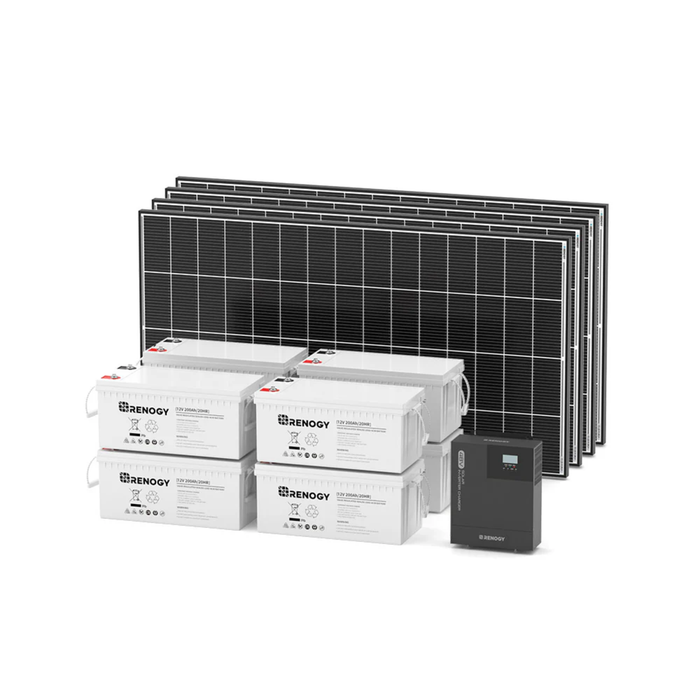

The Renogy 1.2kW Essential Kit - RKIT1200CB-C43D4-A24-US is the perfect entry-level package designed to power your tiny home with reliable solar energy at an amazing value. This kit includes 1.2kW latest generation high-efficiency PERC panels, a reliable 9.6kWh battery bank, and an all-in-one 48V 3500W solar inverter charger. Additionally, it comes equipped with DC circuit protection and Bluetooth monitoring for easy management. With all the key components needed to run your off-grid home, including solar panels, batteries, inverter, wiring set, and safety accessories, this kit ensures efficient and secure solar power generation.

Features:

  • 1.2 kW high-efficiency monocrystalline solar panel kit (4 × 320 W panels)
  • 9.6 kWh battery bank (4 × 12 V 200 Ah AGM batteries)
  • 48 V 3500 W pure sine wave inverter charger with built-in MPPT controller
  • Includes DC circuit breakers, combiner box, and all necessary safety accessories
  • Bluetooth monitoring via BT-2 module and Renogy DC Home app
  • Designed to power essential appliances for up to 7 days off-grid
  • Scalable system — easily expand solar or battery capacity in the future
  • 25-year power output warranty on panels and 10-year warranty on components
$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

Specificationdetails

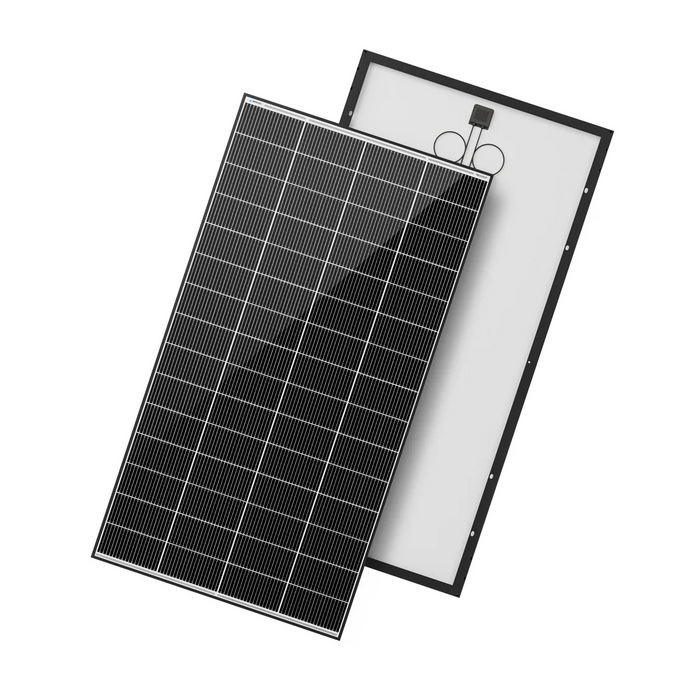

320 Watt Monocrystalline Solar Panel
Maximum Power at STC320W
Optimum Operating Voltage (Vmp)32.7V
Open-Circuit Voltage (Voc)40.1V
Optimum Operating Current (Imp)9.79A
Short-Circuit Current (Isc)10.36A
Operating Temperature-40°F to 185°F
Cell Efficiency21%
Maximum System Voltage1000V DC (UL)
Maximum Series Fuse Rating15A
Weight39.7 lbs
Dimensions65.6" x 39.4" x 1.4"
CertificationsCE, ISO, UL

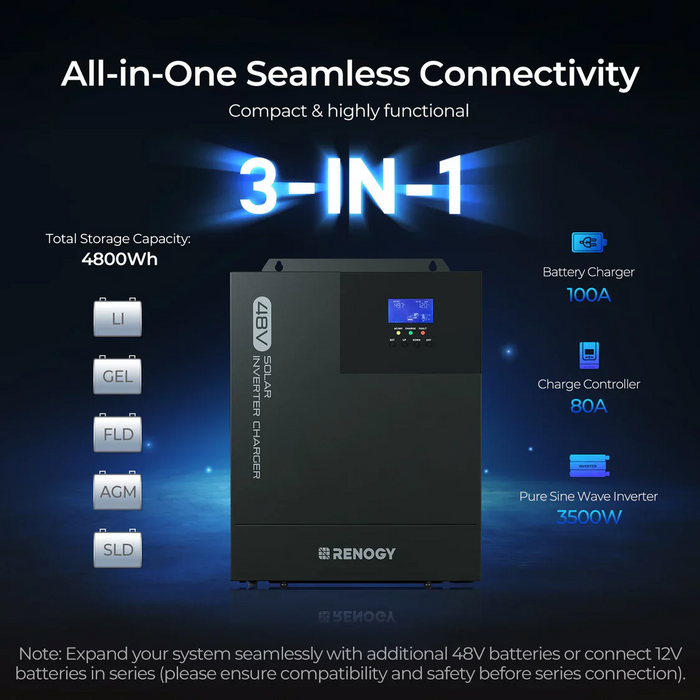

Renogy 48V 3500W Solar Inverter Charger with 80A/145V MPPT
Output WaveformPure Sine Wave
Continuous Output Power3500W
Peak Power Rating7000W
Output Voltage120VAC±5%
Output Frequency50 Hz ± 0.3%, 60 Hz± 0.3%
Input Voltage / Rated Battery Voltage48VDC (minimum start-up voltage 44V)
Charge Controller TypeMPPT
Maximum Input Power4800W
Maximum Input Current50A
Dimensions16.812.74.9 in / 426322124 mm
Weight23.8 lbs / 10.8kg
12 Volt 200Ah Deep Cycle AGM Battery
Battery TypeAGM
Rated Capacity200Ah (20 Hour Rate to 10.5V)
Nominal Voltage12V
Internal ResistanceApprox. 3.5mΩ
Connection MethodIn Series, and In Parallel (up to 4)
Dimensions20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm
Weight127.9 lbs / 58 kg
Standard Operation Temperature77°F±9°F(25°C±5°C)
Warranty Information0.17lbs / 79g
Panels25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty, 10-year material and workmanship warranty
Accessories1-year material and workmanship warranty
