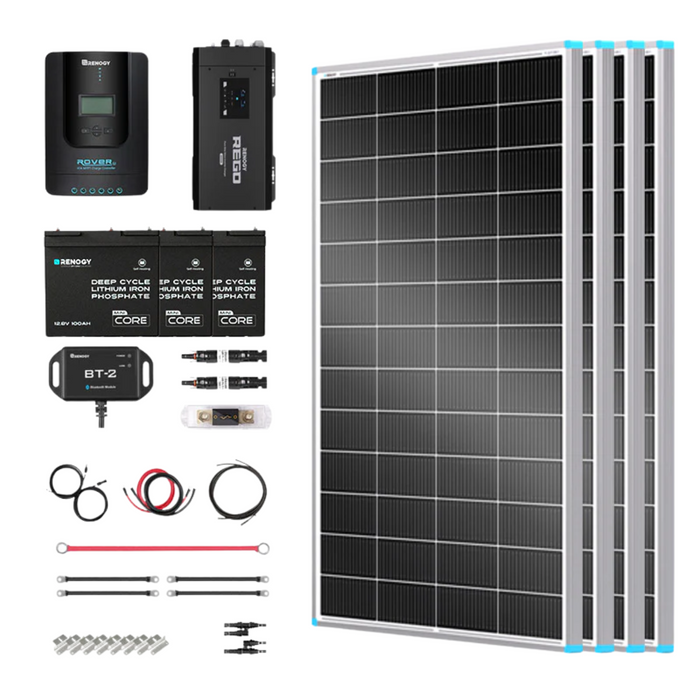

Renogy 800W 12V General Off-Grid Solar Kit - RKIT800PM-R60D4-LIBT13-P3

SKU RKIT800PM-R60D4-LIBT13-P3
Original price $3,699.99 - Original price $3,699.99
Original price
$3,699.99
$3,699.99 - $3,699.99
Current price $3,699.99
Availability:
in stock

Renogy 800W 12V General Off-Grid Solar Kit - RKIT800PM-R60D4-LIBT13-P3 is the ultimate power solution for anyone living off the grid or preparing for emergencies. Designed to deliver 3.5–4kWh of clean, consistent energy daily, this all-in-one kit includes four high-efficiency 200W rigid solar panels and a reliable 60A MPPT charge controller from the Rover or Rego series. With customizable battery options—including smart lithium batteries with self-heating and Bluetooth monitoring—you can tailor the system to match your specific needs. Add a 3000W pure sine wave inverter or inverter charger for complete energy independence. Whether you're powering a cabin, RV, boat, or backup system at home, this kit gives you the freedom to stay connected anywhere.

Features:

  • Generates 3.5–4kWh of energy daily with 800W solar capacity
  • Includes four 200W high-performance rigid panels
  • 60A MPPT charge controller (Rover or Rego series) for optimal energy conversion
  • Optional smart lithium batteries with self-heating and Bluetooth monitoring
  • Pure sine wave inverter or inverter charger upgrade options
  • Complete kit with mounts, cables, connectors, and monitoring tools
  • Ideal for RVs, cabins, boats, and emergency backup
  • 25-year performance warranty for long-term reliability
$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specificiations

ComponentDetails
Kit TypeSolar power customized kit
Energy PerformanceMore energy, even in partially shaded areas
Power TypeConsistent, environmentally-friendly power supply
ConfigurationMultiple options and free combination
Warranty25-year performance warranty
Kit Contents4 x 200 Watt 16BB N-Type 24V Solar Panel
 1 x Rover 60A MPPT Charge Controller with LCD & BT2 Module
 2 x Solar Panel Mounting Z Bracket (Set of 4)
 1 xSolar Y Branch Connectors MMF+FFM Pair
 1 x Solar Panel to Charge Controller Adaptor Kit
 1 x Battery to Charge Controller Tray Cables
 2 x Holder with Fuse
 1 x 60A ANL Fuse Set with Fuse
 1 x Terminals for 3/8 in Lugs
 1 x BT-2 Bluetooth Module (New Version)
200W 16BB N-Type 24V Solar Panel
Max Power at STC200W
Open Circuit Voltage37.44V
Short Circuit Current6.85A
Optimum Operating Voltage31.03V
Optimum Operating Current6.45A
Operating Temperature-40°F to 185°F / -40℃ to 85℃
Max System Voltage600 VDC UL
Max Series Fuse Rating15A
Dimensions1262 × 764 × 30 mm / 49.7 × 30.1 × 1.2 in
Weight10.6 kg / 23.4 lbs
Rover 60A MPPT w/ LCD & BT2 Module
Nominal Voltage12V/24V/36V/48V Auto Recognition (non-lithium)
Rated Charge Current60A
Rated Load Current20A
Max PV Input Power800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Max PV Input Voltage150VDC (25°C), 140VDC (-25°C)
Self-Consumption0.7W – 1.2W
Operating Temperature-31°F to 113°F / -35°C to 45°C
Dimensions285 × 205 × 102 mm / 11.22 × 8.07 × 4.00 in
Weight7.9 lbs
REGO 60A MPPT Charge Controller
Nominal System Voltage12V
Rated Charge Current60A
Max PV Input Power800W
MPPT Voltage Range15 – 100 VDC
Solar Input Voltage (VOC)100V
Max Input Current (Isc)50A
Power LimitingUp to 800W/12V
Operating Temperature-20°C to 60°C
