Renogy 400W Complete Kit for Workshop/Shed - RKIT400BD-R40D4-AGM3-P3-US
by Renogy

Renogy 400W Complete Kit for Workshop/Shed - RKIT400BD-R40D4-AGM3-P3-US

SKU RKIT400BD-R40D4-AGM3-P3-US
$2,099.99 - $2,099.99
$2,099.99
$2,099.99 - $2,099.99
$2,099.99
Availability:
in stock

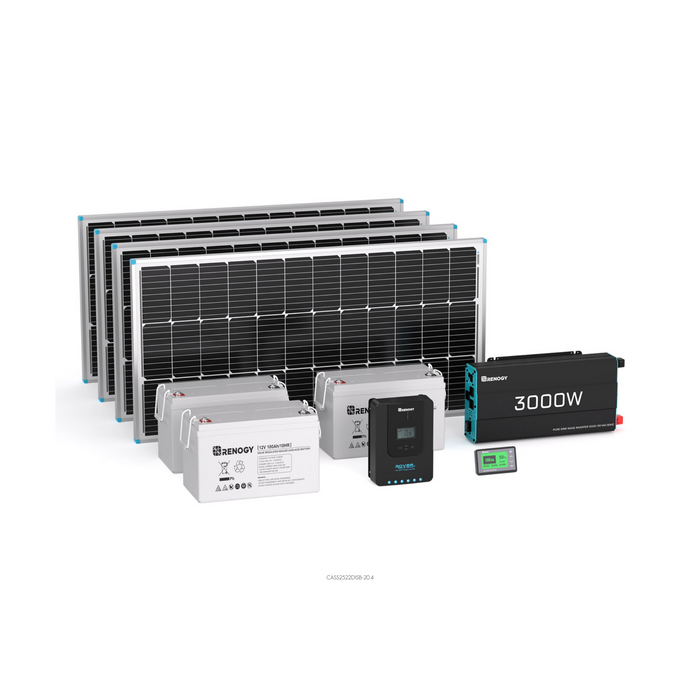

The Renogy 400W Complete Kit for Workshop/Shed - RKIT400BD-R40D4-AGM3-P3-US is designed to provide reliable, high-efficiency solar power for your off-grid needs. Featuring 400W high-efficiency PERC solar panels with 22% cell efficiency, this kit ensures optimal energy capture. It includes a 3.8kWh power storage system with three battery types and a 4-stage charging algorithm to extend battery lifespan. The 3000W pure sine wave inverter delivers grid-like AC power, making it ideal for workshops and sheds. Complete with all necessary installation accessories, the Renogy kit offers a comprehensive solution for sustainable energy independence.
$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

ComponentSpecification

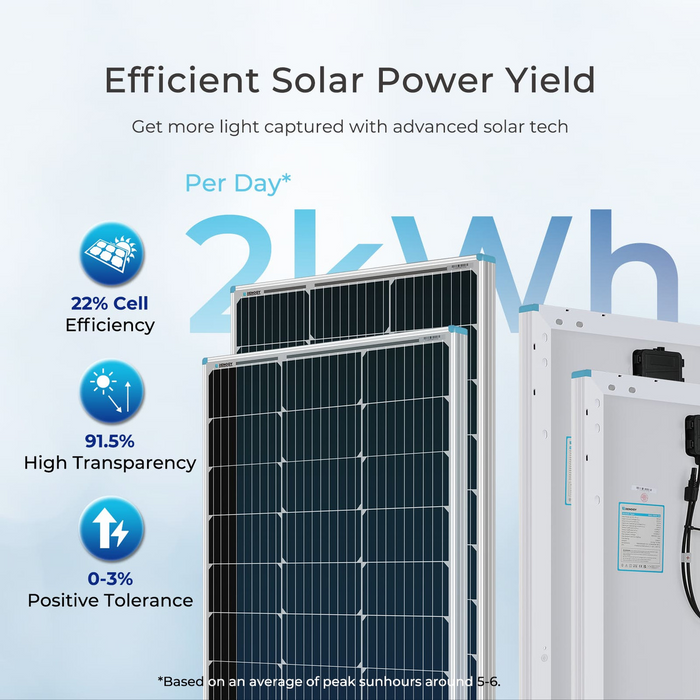

100W Monocrystalline Solar Panel
Maximum Power at STC100W
Open-Circuit Voltage (Voc)24.3V
Short-Circuit Current (Isc)5.21A
Optimum Operating Voltage (Vmp)20.4V
Optimum Operating Current (Imp)4.91A
Dimensions41.80 x 20.90 x 1.40 inch / 1062 x 531 x 35 mm
Maximum System Voltage600VDC
Weight6.4 kg / 14.1 lbs

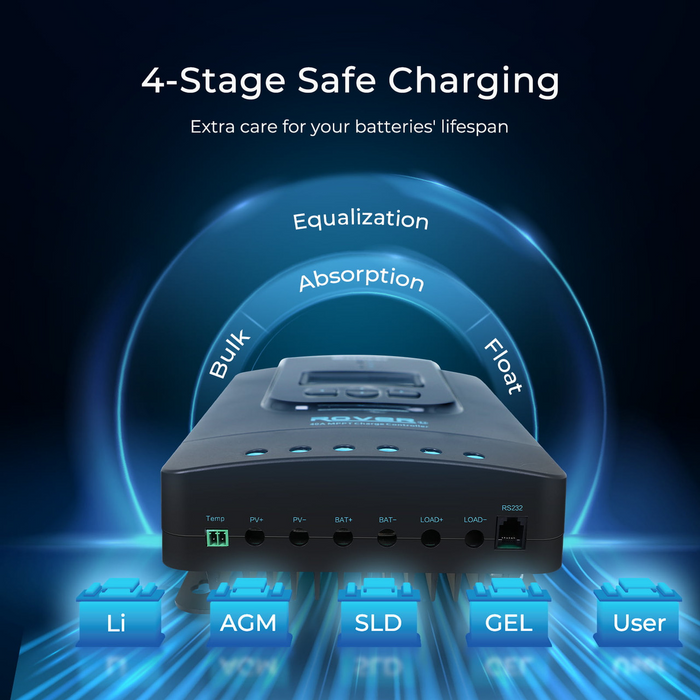

Rover LI 40 Amp MPPT Solar Charge Controller
Nominal Voltage12V / 24V DC Auto Recognition
Battery Type(s)Sealed (AGM), Gel, Flooded, and Lithium
Rated Charging Current40A
Rated Load Current20A
Max. PV Input Power520 W (12V Battery); 1040W (24V Battery)
Max. PV Input Voltage100VDC
Operating Temperature-31°F to 113°F / -35°C to 45°C
Max. Terminal Size6 AWG - 8 AWG
Overall Dimension9.38 x 6.78 x 3.05 inch / 238 x 172 x 77 mm
Weight4.4 lbs / 2.0 kg

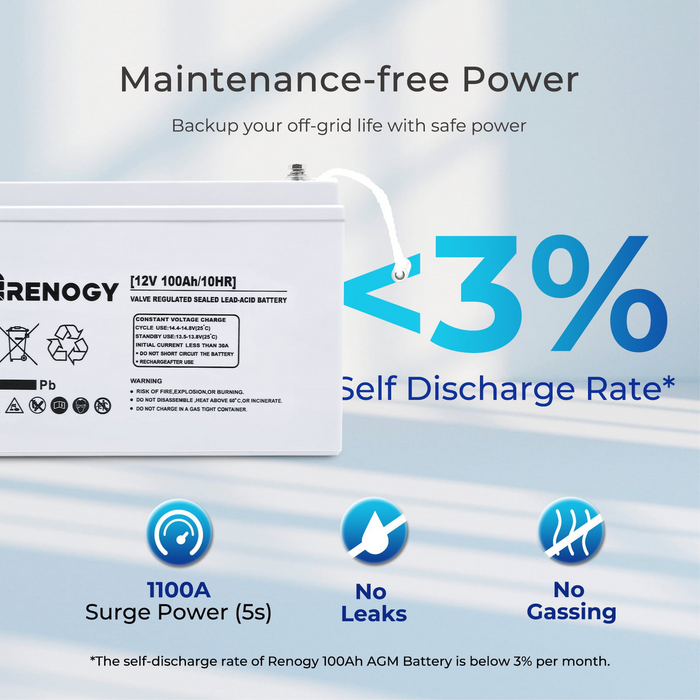

12 Volt 100Ah Deep Cycle AGM Battery
Battery TypeAGM
Rated Capacity100Ah (10 Hour Rate to 10.5V)
Nominal Voltage12V
Cycle Use Voltage14.4V - 14.8V
Self-discharge Rate (77°F / 25°C)<3% / month
Max. Discharging Current1100A (5s)

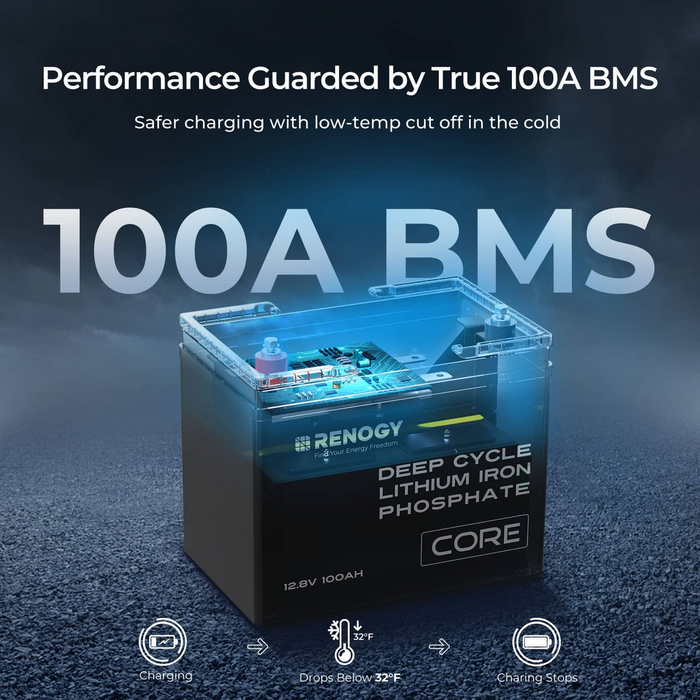

12 Volt 100Ah Core Series LiFePO4 Battery
Battery TypeLithium Iron Phosphate
Rated Capacity (0.5C, 25°C)100Ah
Nominal Voltage12.8V
Cycle Life (0.5C/1C, 25°C)5000 Cycles (80% DOD, 80% EOL)
Maximum Charge Current100A
Max. Discharging Current100A
12 Volt 100Ah Smart Heated LiFePO4 Battery
Battery TypeLithium Iron Phosphate
Rated Capacity (0.5C, 25°C)100Ah
Nominal Voltage12.8V
Cycle Life (0.5C/1C, 25°C)4000 Cycles (80% DOD)
Maximum Charge Current50A
Max. Discharging Current100A
Self-heatingYes

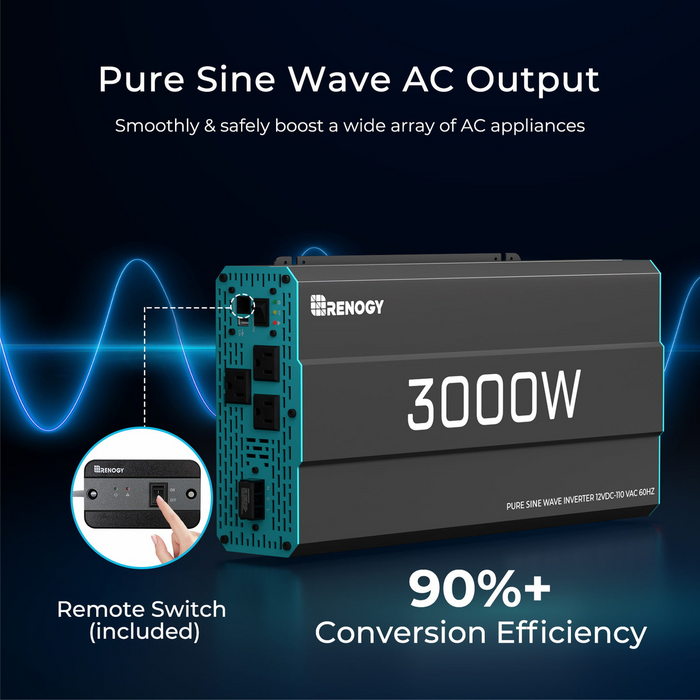

12V 3000W Pure Sine Wave Inverter
Continuous Output Power3000W
Surge Rating6000W
Input Voltage12V DC
Output Voltage115V AC
Efficiency>90%
Output Frequency60Hz
