by Renogy

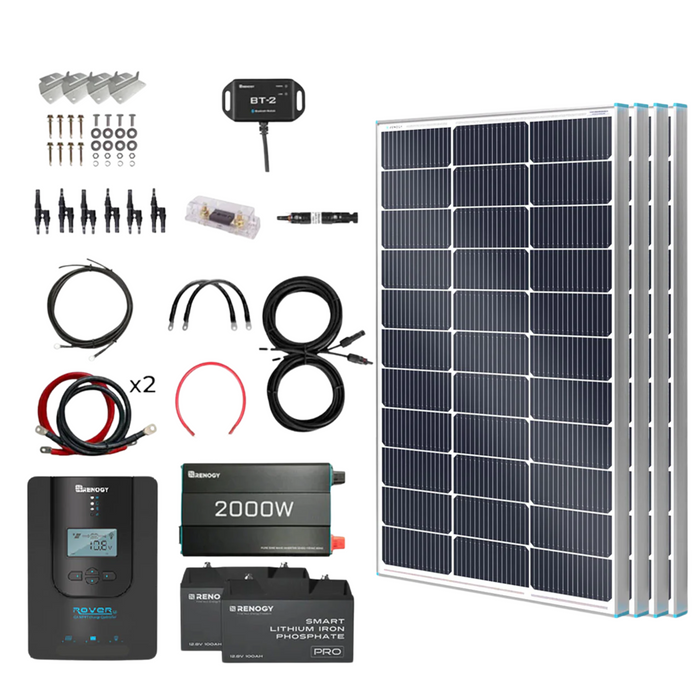

Renogy 400W 12V Complete Solar Kit with Two 100Ah Deep-Cycle AGM / LiFePO4 Batteries - RKIT400DLP2

SKU RKIT400DLP2
Original price $2,599.99 - Original price $2,599.99
Original price
$2,599.99
$2,599.99 - $2,599.99
Current price $2,599.99
Availability:
in stock

Renogy 400W 12V Complete Solar Kit with Two 100Ah Deep-Cycle AGM / LiFePO4 Batteries - RKIT400DLP2 delivers dependable off-grid power for camper vans, garden sheds, or remote cabins. Designed with DIYers in mind, this all-in-one kit includes high-efficiency Grade A+ solar panels, rugged mounting hardware, and a Renogy Rover 40A MPPT charge controller for reliable energy capture—even in extreme weather. With strong vibration resistance, superior heat dissipation, and the flexibility to choose between AGM or LiFePO4 battery options, this solar solution ensures power wherever your adventure takes you. Whether you're preparing for weekend getaways or long-term off-grid living, this kit makes clean energy simple and effective.

Features:

  • Includes two 100Ah AGM or LiFePO4 deep-cycle batteries
  • 400W of Grade A+ solar panels with 22% cell efficiency
  • Rugged aluminum frame with PA66 GB30 reinforced corners
  • Renogy Rover 40A MPPT charge controller with external temp sensor
  • Works in extreme temperatures from -40°F to 149°F
  • Reliable power in shaded or low-light conditions
  • Vibration-resistant design ideal for travel or mobile use
  • Quick-connect setup for fast DIY installation
  • 25-year panel performance warranty
$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specificiations

ComponentSpecifications
Solar Panel Type100W Monocrystalline (x2)
Solar Cell Efficiency22% (Grade A+)
Maximum System Voltage600V DC (UL)
Open-Circuit Voltage (Voc)22.79V
Short-Circuit Current (Isc)5.31A
Optimum Operating Voltage (Vmp)19.97V
Optimum Operating Current (Imp)5.01A
Output Cables14 AWG, 1.96 ft long
Panel Dimensions865 x 578 x 30 mm / 34.1 x 22.8 x 1.2 in
Panel Weight5.9 kg / 13.0 lbs
Solar Charge ControllerRenogy Rover LI 40A MPPT
Charge Controller System Voltage12V/24V Auto Recognition
Max PV Input Voltage100 VDC
Max Battery Voltage32V
Rated Charge Current40A
Max PV Input Power12V/520W, 24V/1040W
Inverter TypeRenogy 2000W 12V Pure Sine Wave
Continuous Output Power2000W
Peak Power Rating4000W
Output Voltage115V
Inverter Dimensions17.8 x 8.6 x 4 in
Inverter Weight11.7 lbs
AGM Battery TypeDeep Cycle, 12V 100Ah (x2)
AGM Battery Dimensions13.1 x 6.9 x 8.6 in / 332 x 175 x 219 mm
AGM Battery Weight63.9 lbs / 29 kg
AGM Cycle Use Voltage14.4V~14.8V
LiFePO4 Battery Type100Ah Smart LiFePO4 with Bluetooth & Self-Heating
LiFePO4 Voltage Range10V to 14.8V
LiFePO4 Dimensions10.6 x 7.6 x 8.1 in / 268 x 193 x 205 mm
LiFePO4 Weight26.9 lbs / 12.2 kg
Battery Monitor500A Battery Monitor with Shunt
Bluetooth ModuleBT-2 Bluetooth Module
Mounting Hardware4 Sets of Z Brackets
Solar Y Branch ConnectorsMMF+FFM Pair (x3)
Solar Panel to Charge Controller Cables20FT 10AWG
Battery Tray Cables8FT 8AWG
Battery Interconnect Cables16 in 4AWG (x2)
ANL Fuse Cable1FT 8AWG with 3/8 in Lugs
ANL Fuse Set40A with Fuse
In-Line Solar Fuse Holder30A Waterproof with Fuse
Battery to Inverter CablesFor 3/8 in Lugs (x2)
Mounting & VibrationVibration-resistant, flexible mounting design
Performance Warranty25 years
