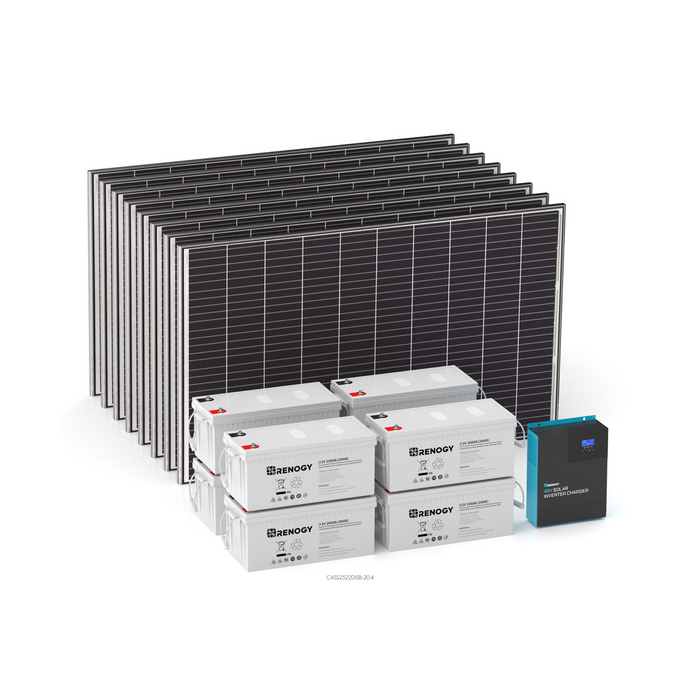

Renogy 2.5kW Essential Plus Kit - RKIT2500CB-C43D8-A28-US

SKU
Original price $7,999.99 - Original price $7,999.99
Original price
$7,999.99
$7,999.99 - $7,999.99
Current price $7,999.99
Availability:
in stock

The Renogy 2.5kW Essential Plus Kit - RKIT2500CB-C43D8-A28-US features cutting-edge 2.5kW high-efficiency PERC panels, ensuring maximum energy capture and reliability. It includes a robust 19.2kWh battery bank for extended power storage and an all-in-one 48V 3500W solar inverter charger that seamlessly integrates with your system. The kit also boasts advanced DC circuit protection and Bluetooth monitoring for easy, real-time system management, making it a comprehensive solution for sustainable energy needs.

Features:

  • 2.5 kW high-efficiency monocrystalline solar panel kit
  • Large battery bank capacity (sized to match solar generation and load demands)
  • High-capacity inverter/charger with MPPT solar charge controller
  • All essential protection hardware: circuit breakers, combiner box, wiring, and safety accessories
  • Remote monitoring capability (Bluetooth / app support)
  • Suitable for powering full household or larger loads in off-grid or backup scenarios
  • Scalable design - allows future expansion of solar or battery capacity
  • Long-term warranties on panels and components
$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

SpecificationDetails
320 Watt Monocrystalline Solar Panel
Maximum Power at STC320W
Optimum Operating Voltage (Vmp)32.7V
Open-Circuit Voltage (Voc)40.1V
Optimum Operating Current (Imp)9.79A
Short-Circuit Current (Isc)10.36A
Operating Temperature-40°F to 185°F
Cell Efficiency21%
Maximum System Voltage1000V DC (UL)
Maximum Series Fuse Rating15A
Weight39.7 lbs
Dimensions65.6" x 39.4" x 1.4"
CertificationsCE, ISO, UL
Renogy 48V 3500W Solar Inverter Charger with 80A/145V MPPT
Battery TypeAGM
Rated Capacity 200Ah (20 Hour Rate to 10.5V)
Nominal Voltage12V
Internal ResistanceApprox. 3.5mΩ
Connection MethodIn Series, and In Parallel (up to 4)
Dimensions20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm
Weight127.9 lbs / 58 kg
Standard Operation Temperature77°F±9°F(25°C±5°C
Warranty Information
Panels25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty, 10-year material and workmanship warranty
Accessories1-year material and workmanship warranty

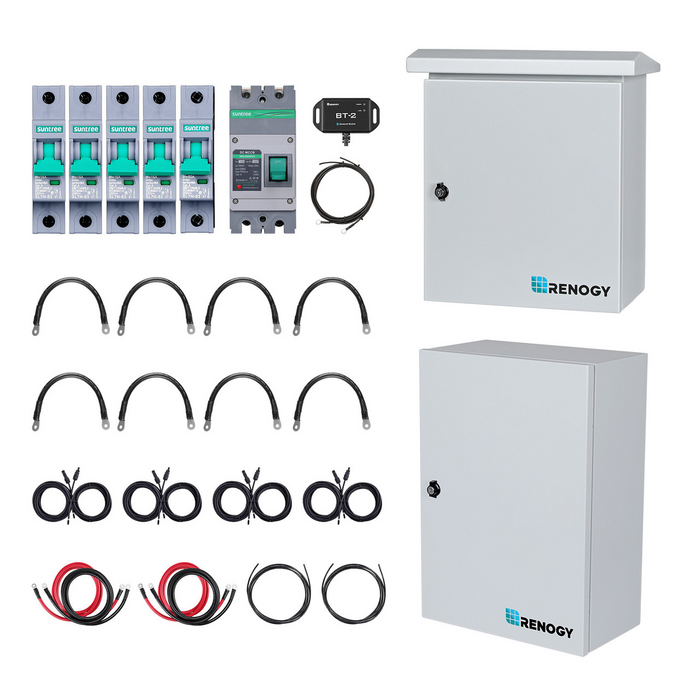

Package Includes
Renogy 2.5kWh Essential Plus Kit
4 Pieces of 320 Watt Monocrystalline Solar Panel2
40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)4
5 Strings Solar Combiner Box1

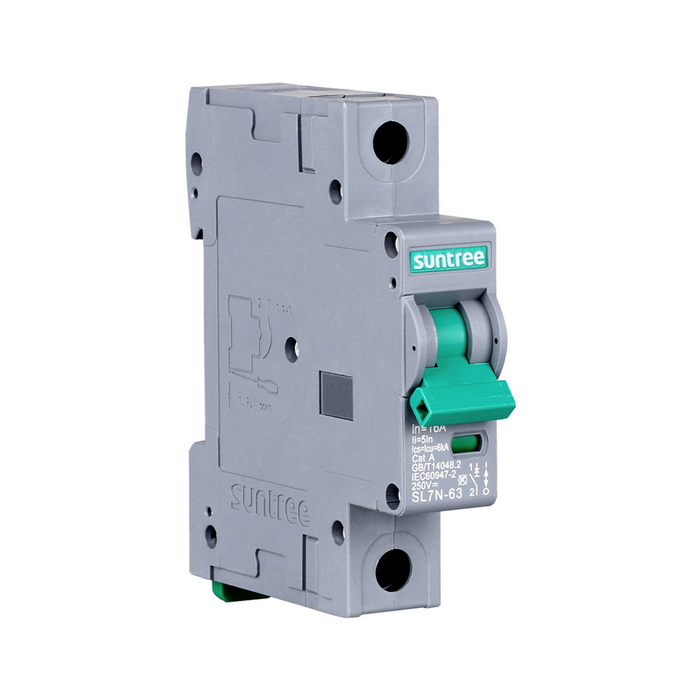

16A 1P DC Miniature Circuit Breaker4
DC Circuit Breaker Box1
50A 1P DC Miniature Circuit Breaker1
16Ft 10AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair)1
8Ft 8AWG Solar Stranded Copper PV Wire2
160A 2P DC Molded Case Circuit Breaker1

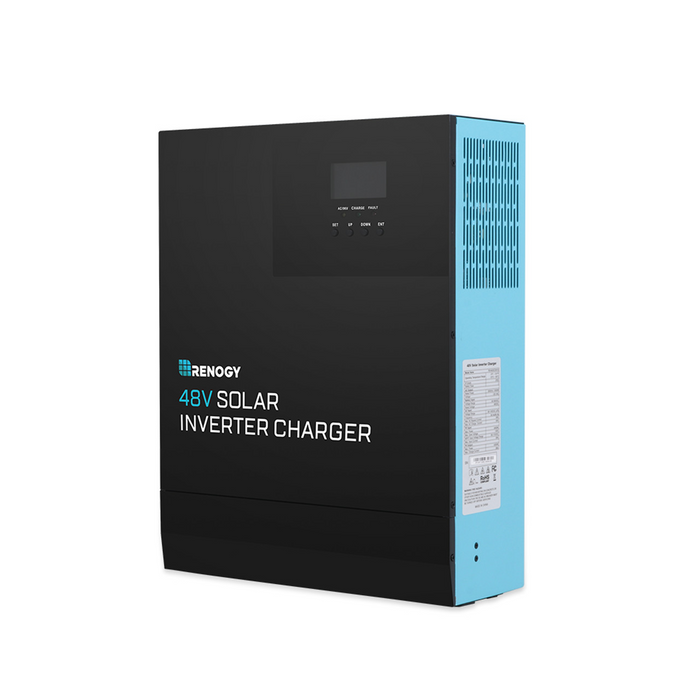

48V 3500W Solar Inverter Charger1

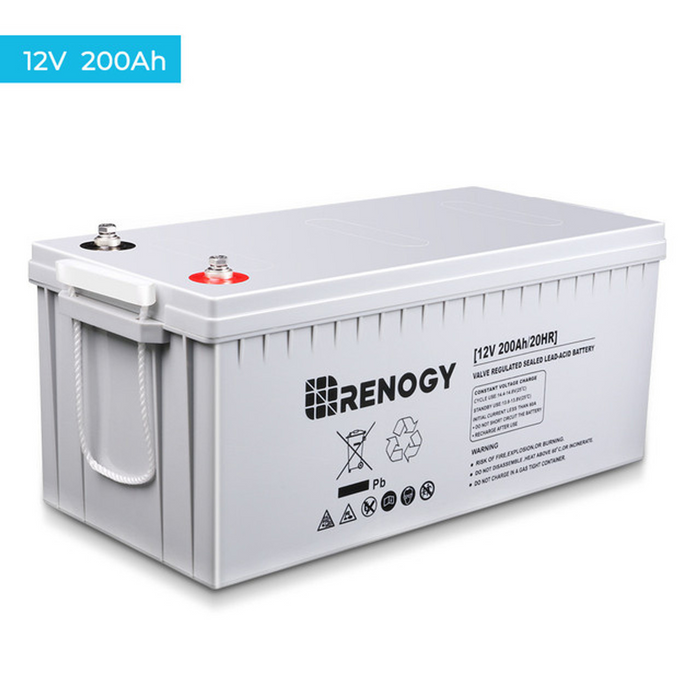

12V 200Ah AGM Battery8
12Inch 1AWG Copper Battery Interconnect Cable for 3/8Inch Lugs8
8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair)2

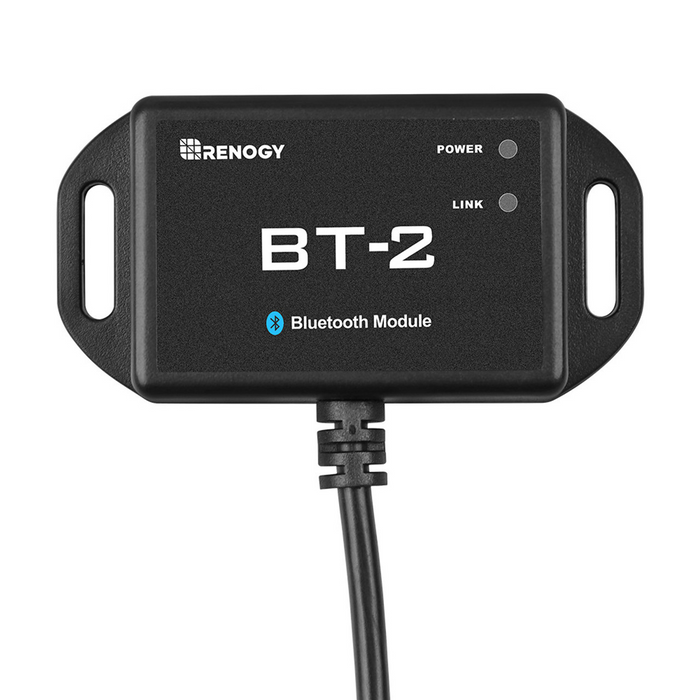

BT-2 Bluetooth Module1
