by Renogy

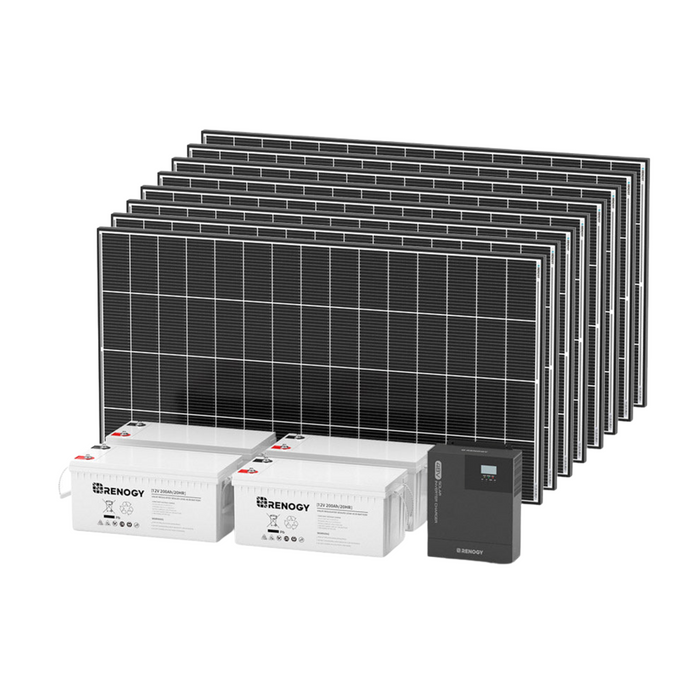

Renogy 2.5kW Essential Plus Kit - RKIT2500CB-C43D8-A28

SKU RKIT2500CB-C43D8-A28
Original price $7,999.99 - Original price $7,999.99
Original price
$7,999.99
$7,999.99 - $7,999.99
Current price $7,999.99
Availability:
in stock

Renogy 2.5kW Essential Plus Kit - RKIT2500CB-C43D8-A28 is the complete off-grid power solution for your tiny home, cabin, or mobile setup. Designed for those who demand both comfort and performance, this kit delivers 2.5kW of solar power through high-efficiency N-type panels and stores up to 19.2kWh of energy in a robust battery bank. The all-in-one 48V 3500W solar inverter charger ensures seamless energy conversion and usage, while built-in DC circuit breakers and Bluetooth monitoring add safety and control. Whether you're living off-grid full time or just getting started, this kit brings reliability and peace of mind to your energy needs.

Features:

  • 2.5kW high-efficiency N-type solar panels
  • 19.2kWh battery bank for extended power storage
  • All-in-one 48V 3500W solar inverter charger
  • DC circuit breakers for added electrical safety
  • Remote monitoring via Bluetooth for easy system management
  • Ideal for off-grid tiny homes or mobile installations
$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specificiations

ComponentSpecifications
Solar Panel Type320 Watt N-Type Monocrystalline
Maximum Power at STC320W
Optimum Operating Voltage (Vmp)37.85V
Open-Circuit Voltage (Voc)43.82V
Optimum Operating Current (Imp)8.46A
Short-Circuit Current (Isc)8.92A
Operating Temperature-40°F~185°F / -40℃~85℃
Cell Efficiency22.20%
Maximum System Voltage1000V DC (UL)
Maximum Series Fuse Rating20A
Panel Weight14.9kg / 32.9lbs
Panel Dimensions1640 x 880 x 35mm / 64.6 x 34.7 x 1.4in
CertificationsCE, ISO, UL
Inverter Type48V 3500W Pure Sine Wave Solar Inverter Charger
Output WaveformPure Sine Wave
Max Rated Power3500W
Input Voltage120VAC
Input Voltage Range85VAC ~ 140VAC
Input/Output Frequency50/60Hz Adjustable
Output Voltage120VAC (100VAC~120VAC, 5VAC Increments)
Charge Controller TypeMPPT
Max PV Input/Output Power4400W
Max PV Charging Current80A
Inverter Dimensions17.51 x 12.99 x 4.88in / 444.8 x 330 x 124 mm
Inverter Weight22.38 lbs / 10.15kg
Battery Type12 Volt 200Ah Deep Cycle AGM Battery
Rated Capacity200Ah (20 Hour Rate to 10.5V)
Nominal Voltage12V
Internal ResistanceApprox. 3.5mΩ
Connection MethodIn Series, and In Parallel (up to 4)
Battery Dimensions20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm
Battery Weight127.9 lbs / 58 kg
Standard Operation Temperature77°F ± 9°F / 25°C ± 5°C
Warranty - Panels25-year power output warranty (5-year 95%, 10-year 90%, 25-year 80%) + 10-year material/workmanship warranty
Warranty - Accessories1-year material and workmanship warranty
