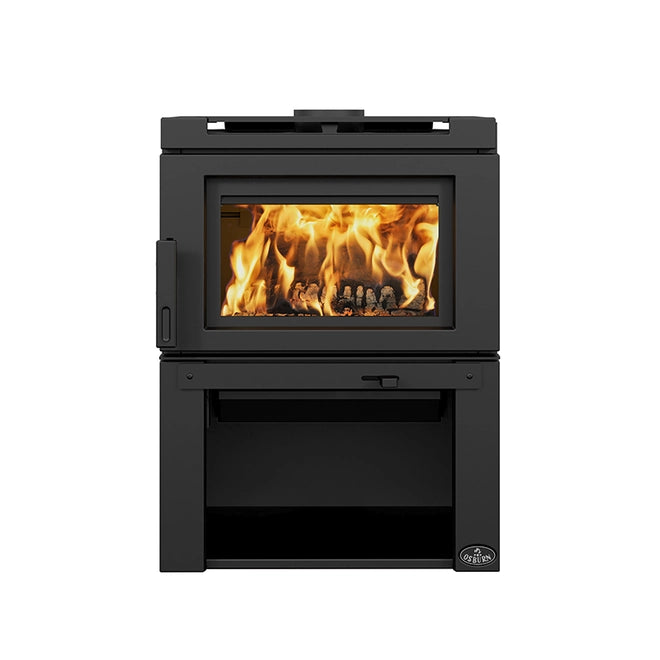

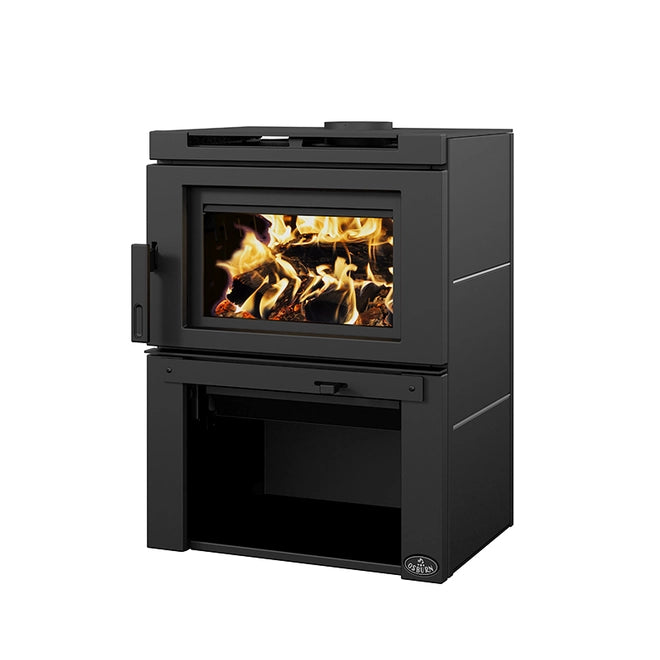

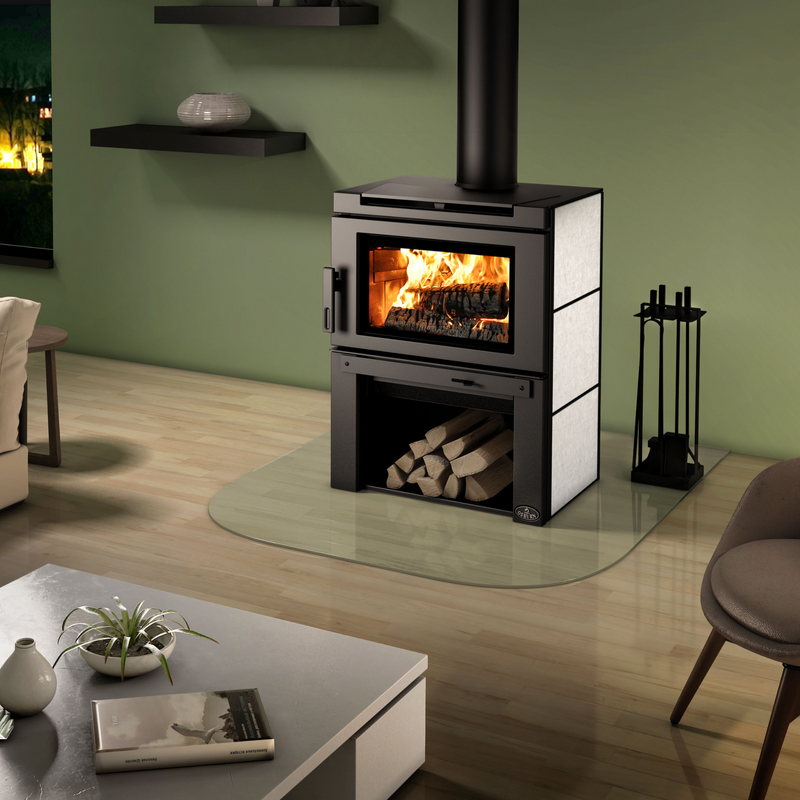

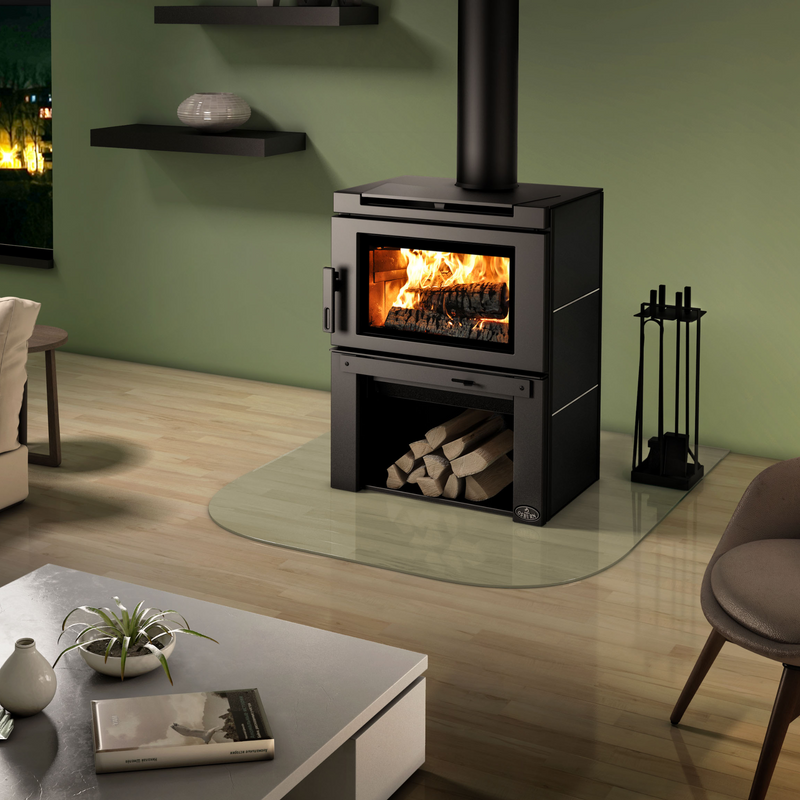

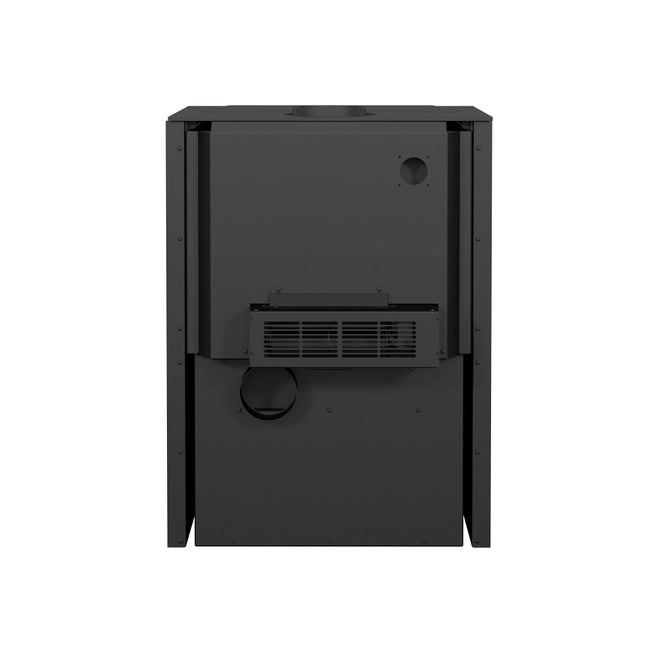

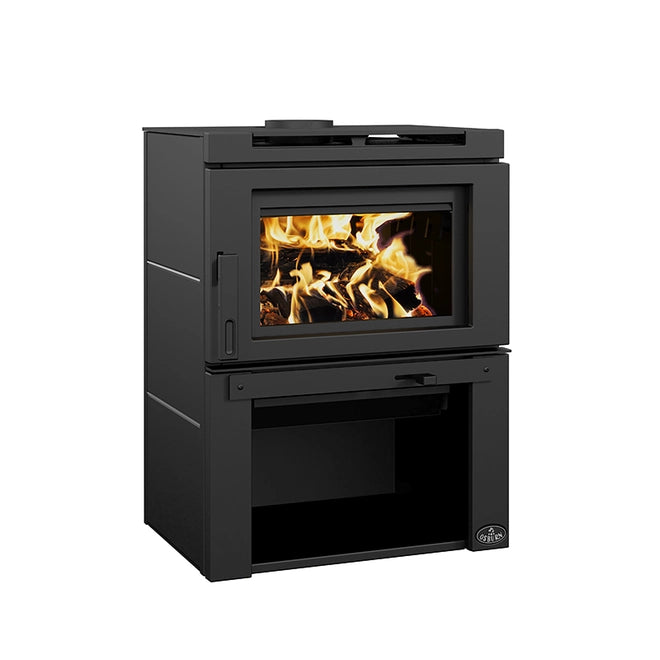

Osburn Matrix Wood Burning Stove With Blower

SKU OB02032-OA10704-OA10700-Bundle
by Osburn
Sold out
Original price $4,739.00 - Original price $5,446.00
Original price
$4,739.00
$4,739.00 - $5,446.00
Current price $4,739.00
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock

The Osburn Matrix Wood Burning Stove With Blower blends refined European-inspired design with cutting-edge heating performance to transform any living space into a warm, inviting retreat. Featuring a robust firebox capable of handling up to 20-inch logs and a premium 130 CFM blower, the Matrix ensures exceptional heat distribution throughout your home. Its customizable steel or locally-sourced Quebec soapstone panels offer a personalized touch, while EPA 2020 certification guarantees efficient and eco-friendly performance. With a burn time of up to 8 hours and approvals for both alcove and mobile home installations, this stove is engineered for maximum versatility and long-lasting comfort.

Features:

  • Heats spaces from 500 to 2,100 ft² with up to 75,000 BTU/h
  • Durable firebox with 2.4 ft³ volume and 8-hour maximum burn time
  • 130 CFM blower included for efficient heat distribution
  • Customizable top and side panels in steel or soapstone
  • EPA 2020 approved and certified for mobile and alcove installation
  • Large ceramic glass door with cast iron frame for clear fire viewing
  • Supports logs up to 20" in length
  • High-efficiency non-catalytic combustion system

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

Fuel typeDry cordwood (16" recommended)
Recommended heating area500 - 2,100 ft²
Overall firebox volume2.4 ft³
EPA loading volume1.95 ft³
Maximum burn time8 h
Maximum heat output (dry cordwood)75,000 BTU/h (22.0 kW)
Minimum overall heat output rate14,200 BTU/h (4.16 kW)
Alcove installation approvedYes
Mobile home approvedYes, with fresh air intake
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Overall dimension (Width)27 1/8"
Overall dimension (Height)36 7/8"
Overall dimension (Depth)25"
Premium quality blower included130 CFM included
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes
Flue outlet diameter6"
Distance-center of the flue outlet to back unit6 3/8"
Distance-center of the flue outlet to side unit13 1/2"
Recommended chimney diameter6"
Type of chimneyCAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height12'
Door typeSingle, glass with cast iron frame
Door opening size (Width)17 1/2"
Door opening size (Height)8 3/4"
Maximum overall heat output rate44,500 BTU/h (13.04 kW)
Average overall efficiency (dry cordwood, HHV)72 %
Average overall efficiency (dry cordwood, LHV)77 %
Optimum efficiency79 %
Optimum heat transfer efficiency76 %
Average particulate emission rate2.3 g/h
Average CO69 g/h
Glass typeCeramic glass
Glass surface (W x H)19 5/8" x 11 7/8"
Steel thickness (body)3/16"
Steel thickness (top)5/16"
Firebox size (Width)21"
Firebox size (Height)11 7/8"
Firebox size (Depth)16 1/2"
Log positioningLoading over
Maximum log length20"
Firebox lined with refractory bricksYes
Baffle typeC-Cast or equivalent
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S627
USA Standard (safety)UL 1482, UL 737
WarrantyLimited lifetime
Shipping weight506 lb (230 kg)







ClearancesCanadaUnited States
 Single Wall PipeDouble Wall PipeSingle Wall PipeDouble Wall Pipe
Clearance - Back wall14 1/2"6"11"6"
Clearance - Side wall17"17"16"16"
Clearance - Corner10"7"10"7"
Clearance - Base of the unit to ceiling**84"84"84"84"
