Wood Stove
A stove with a steel shell that houses a controlled fire of wood or other carbonaceous material that is used to heat a home.

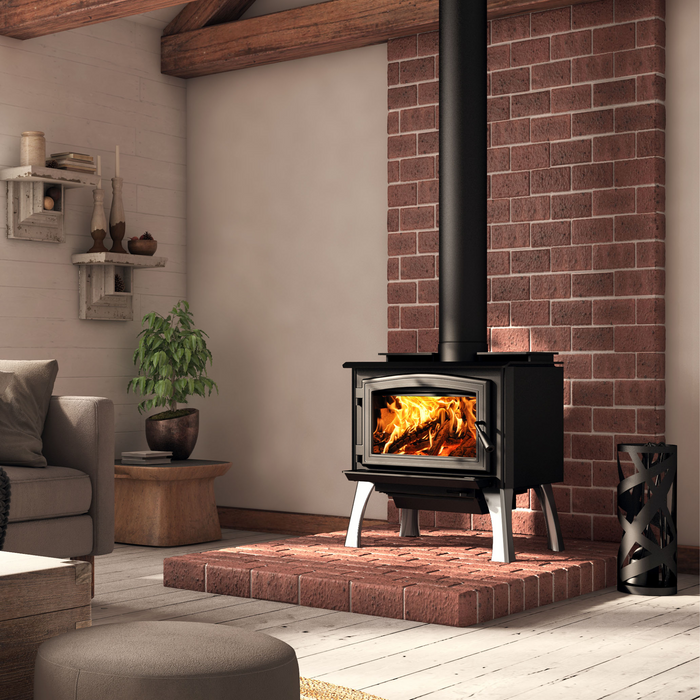

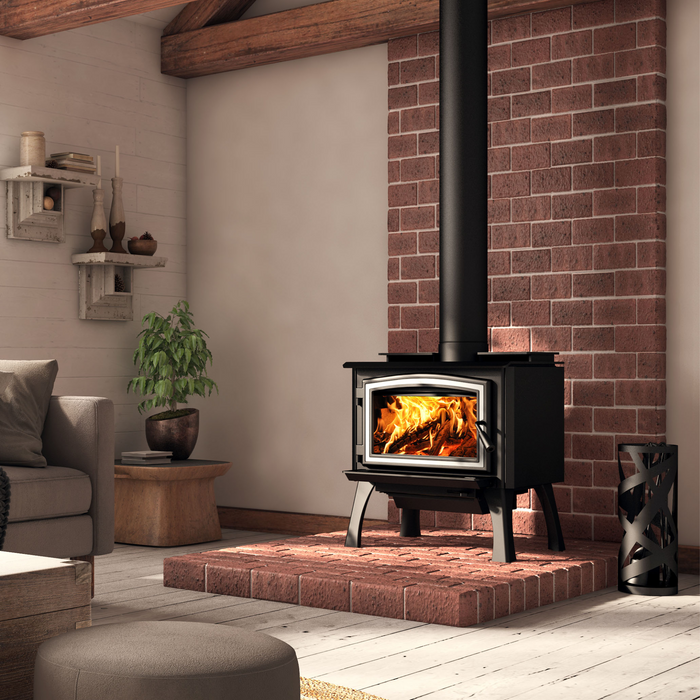

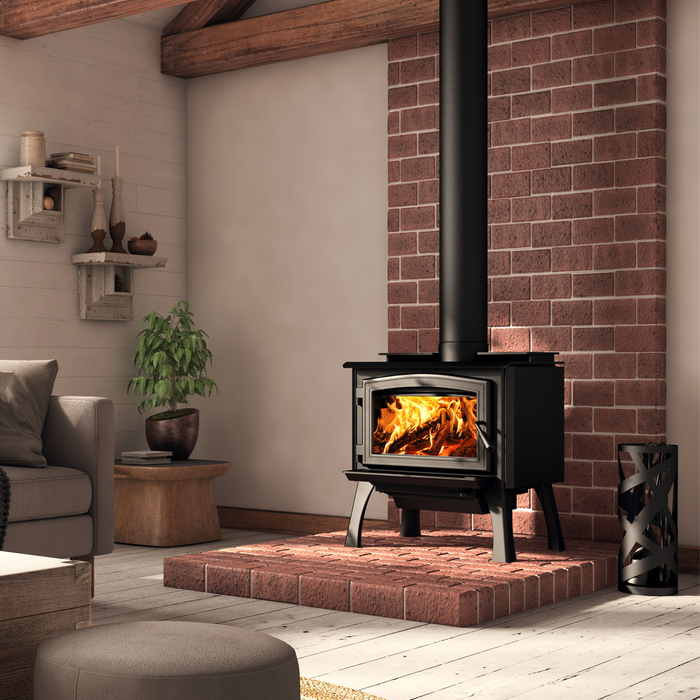

The Osburn 1700 Wood Burning Stove combines robustness with elegance, making it a perfect choice for smaller spaces. This stove features high-density bricks, a stainless steel heat shield, and a cast iron door, ensuring durability and efficient heat distribution. A built-in ash pan and a top heat deflector that channels heat to the front add convenience and performance, while side panels reduce clearances for safer installation. With customizable options like refined door overlays and new leg designs, the Osburn 1700 not only meets but exceeds air quality regulations, offering emissions as low as 1.26 g/h for an eco-friendly and efficient heating solution.
Order Processing and Shipping
Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.
Fuel type | Dry cordwood (16" recommended) |
---|---|
Recommended heating area | 500 - 1,800 ft² |
Overall firebox volume | 1.86 ft³ |
EPA loading volume | 1.44 ft³ |
Maximum burn time | 6 h |
Maximum heat output - dry cordwood | 65,000 BTU/h (19 kW) |
Minimum overall heat output rate | 15,650 BTU/h (4.6 kW) |
Alcove installation approved | Yes |
Mobile home approved | Yes, with fresh air intake |
Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
Overall dimension (Width) | 24 7/8" |
Overall dimension (Height) | 30 3/8" |
Overall dimension (Depth) | 23 1/4" |
Premium quality blower included (CFM) | Optional |
Combustion technology | Non-catalytic |
Stainless-steel secondary-air system | Yes |
Flue outlet diameter | 6" |
Distance - center of the flue outlet to back unit | 6 5/8" |
Distance - center of the flue outlet to side unit | 12 1/2" |
Recommended chimney diameter | 6" |
Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
Minimum chimney height | 12' |
Door type | Single, glass with cast iron frame |
Door opening size (Width) | 17 1/4" |
Door opening size (Height) | 8 3/4" |
Maximum overall heat output rate | 23,300 BTU/h (6.83 kW) |
Average overall efficiency - dry cordwood (HHV) | 70 % |
Average overall efficiency - dry cordwood (LHV) | 75 % |
Optimum efficiency | 78 % |
Optimum heat transfer efficiency | 74 % |
Average particulate emission rate | 1.26 g/h |
Average CO | 58 g/h |
Glass type | Ceramic glass |
Glass surface - W x H | 15 3/4" x 9 3/8" |
Steel thickness - body | 3/16" |
Steel thickness - top | 5/16" |
Firebox size (Width) | 19 5/8" |
Firebox size (Height) | 11 7/8" |
Firebox size (Depth) | 13 1/2" |
Log positioning | Loading over width |
Maximum log length | 18" |
Firebox lined with refractory bricks | Yes |
Baffle type | C-Cast or equivalent |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | EPA |
Canadian Standard (safety) | ULC S627 |
USA Standard (safety) | UL 1482, UL 737 |
Warranty | Limited lifetime |
Shipping weight | 336 lb (153 kg) |
Clearances | Canada | United States | ||
---|---|---|---|---|
Single Wall Pipe | Double Wall Pipe | Single Wall Pipe | Double Wall Pipe | |
Clearance - Back wall | 14 1/2" | 6" | 12" | 6" |
Clearance - Side wall | 10" | 12" | 12" | 12" |
Clearance - Corner | 12" | 6" | 11" | 6" |
Clearance - Base of the unit to ceiling** | 84" | 84" | 84" | 84" |
