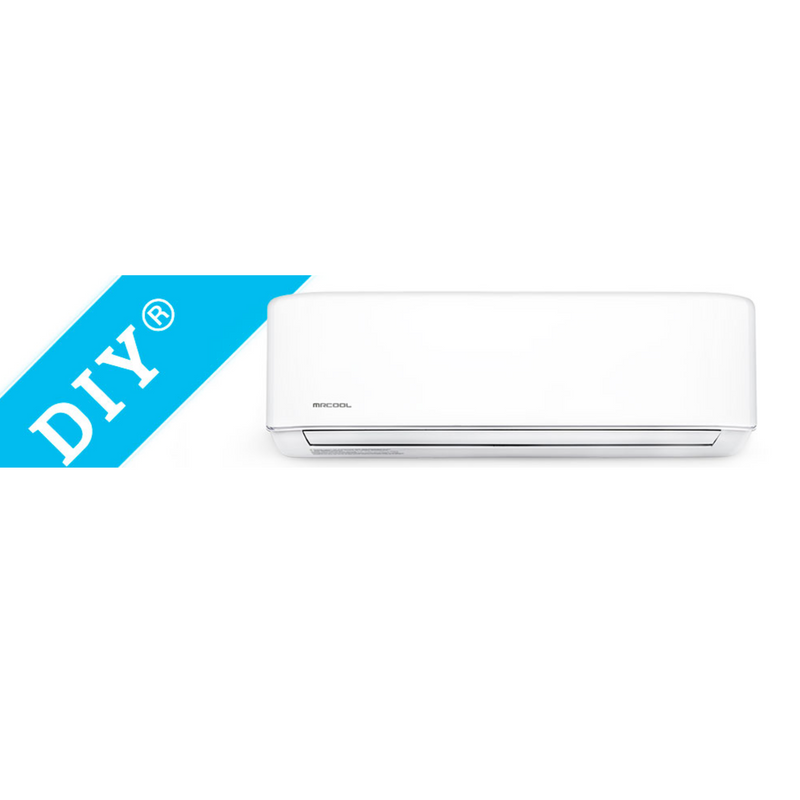

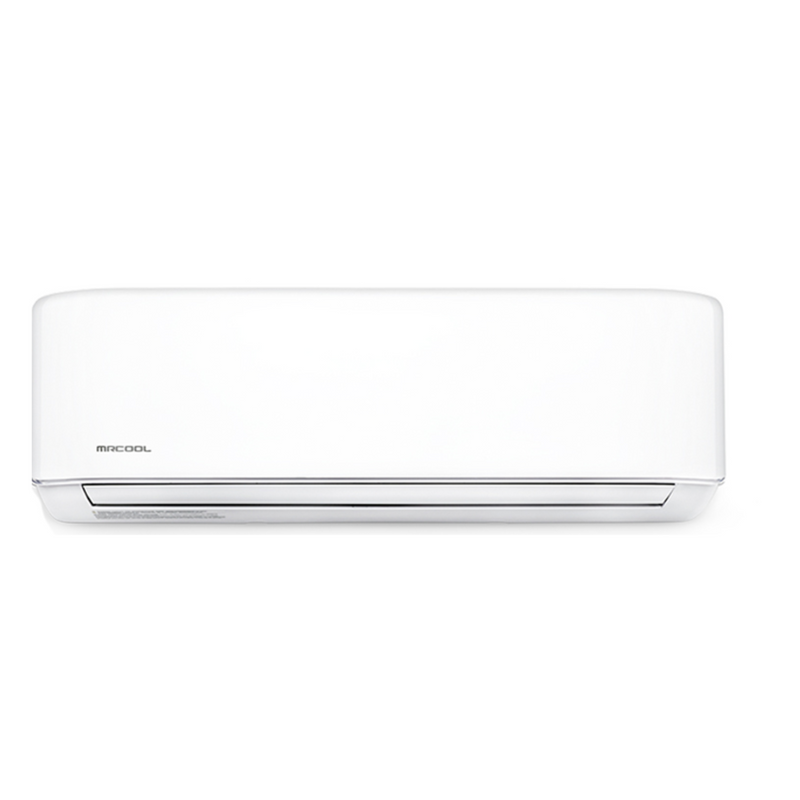

MRCOOL E Star DIY 4th Gen Ductless Mini-Split Air Handler 230V/60Hz

SKU DIY-09-HP-WMAH-230C
by MRCOOL
Original price $442.00 - Original price $1,188.00
Original price
$442.00
$442.00 - $1,188.00
Current price $442.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

The MRCOOL® DIY Ductless Wall Mounted Air Handler is efficient, producing up to 22 SEER efficiency rating and can cover an area between 375 and 1,500 sq. ft, based on the BTU cooling capacity of the model. It is also incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. This unit also can be controlled by your Apple or Android smartphone through the use of the Smart HVAC app. Its light and compact design can be installed easily on most interior walls with the included mounting plate. To take the simplicity of the installation even further, this air handler is designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. The line set has quick connectors that allow a DIY installer to connect the refrigerant piping with wrenches. The line set comes from the factory pre-charged with the correct amount of R-410A refrigerant, so no vacuuming is necessary.

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Model Specifications

MODELDIY-09-HP-WMAH-230CDIY-12-HP-WMAH-230C25DIY-18-HP-WMAH-230C25DIY-24-HP-WMAH-230C25DIY-36-HP-WMAH-230C25
GTIN810063869533810063869540810063868512810063868536810063868550
UPC810063869533810063869540810063868512810063868536810063868550
UNIT TYPEMini SplitMini SplitMini SplitMini SplitMini Split
COOLING CAPACITY9000 BTU12000 BTU18000 BTU23000BTU36000 BTU
HEATING CAPACITY9000 BTU12000 BTU18000 BTU25000 BTU36000 BTU
VOLTAGE208-230 V208-230 V208-230 V208-230 V208-230 V
PHASE11111
CYCLE60 Hz60 Hz60 Hz60 Hz60 Hz
MAX FUSE BREAKER15 A15 A15 A15 A15 A
MIN CIRCUIT AMPACITY3 A3 A
MOUNT TYPEWallWallWallWallWall
COLORWhiteWhiteWhiteWhiteWhite
COLOR FAMILYWhiteWhiteWhiteWhiteWhite
MAX COVERAGE AREAUp to 375 sqftUp to 500 sqftUp to 750 sqftUp to 1000 sqftUp to 1500 sqft
MAX LINESET LENGTH
REFRIGERANT TYPER-410AR-410AR-410AR-410AR-410A
DECIBEL RATING35 dBA35 dBA44.5/37/3148.5/43.5/3352/45/34
DECIBEL RATING LOW25 dBA25 dBA31 dBA33 dBA34 dBA
DECIBEL RATING HIGH40 dBA40 dBA44.5 dBA48.5 dBA52 dBA
INVERTERYesYesYesYesYes
LIQUID LINE SIZE1/4 in1/4 in1/4 in3/8 in3/8 in
SUCTION LINE SIZE1/2 in1/2 in1/2 in5/8 in5/8 in
BLOWER MOTOR RPM1050/850/6501050/850/6501120/950/7001200/1000/7001200/950/750
FAN ONLY OPTIONYesYesYesYesYes
QUIET MODEYesYesYesYesYes
AUTO COOLYesYesyesyesyes
WIFI COMPATIBILITYYesYesYesYesYes
APP COMPATIBILITYYesYesYesYesYes
WORKS WITH IOSYesYesYesYesYes
WORKS WITH ANDROIDYesYesYesYesYes
REMOTE CONTROL INCLUDEDYesYesYesYesYes
ENERGY STAR CERTIFIEDYesYesYesYesNo
AHRI CERTIFIEDYesYesYesYesYes
REGISTERED WARRANTYLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime Compressor
BASE WARRANTY5-year Parts/7-year Compressor5-year Parts/7-year Compressor5-year Parts/7-year Compressor5-year Parts/7-year Compressor5-year Parts/7-year Compressor
BASE PARTS WARRANTY5-year Parts5-year Parts5-year Parts5-year Parts5-year Parts
REGISTERED COMPRESSOR WARRANTYLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime Compressor
BASE COMPRESSOR WARRANTY7-year Compressor7-year Compressor7-year Compressor7-year Compressor7-year Compressor
HAS BATTERIESYesYesYesYesYes
CONTAINS ELECTRONICSYesYesYesYesYes
CONTAINS CHEMICALSYesYesYesYesYes
CONTAINS AEROSOLYesYesYesYesYes
CONTAINS COMPRESSED GASYesYesYesYesYes
PROPOSITION 65 WARNINGYesYesYesYesYes
RESTRICTED STATESGU;PR;VIGU;PR;VIGU;PR;VIGU;PR;VIGU;PR;VI
NET DEPTH7.44 in7.44 in8.90 in8.90 in11.10 in
NET HEIGHT11.69 in11.69 in13.19 in13.19 in14.25 in
NET WIDTH31.57 in31.57 in42.52 in42.52 in49.57 in
NET WEIGHT23.81 lbs23.81 lbs34.61 lbs35.27 lbs47.84 lbs
GROSS DEPTH16.34 in16.34 in19.57 in19.57 in21.26 in
GROSS HEIGHT13.98 in13.98 in17.32 in17.32 in19.69 in
GROSS WIDTH36.02 in36.02 in49.09 in49.09 in56.69 in
GROSS WEIGHT34.39 lbs34.39 lbs56 lbs60.19 lbs78.26 lbs
