MRCOOL DIY 4th Gen Ductless Mini-Split Heat Pump Complete System

SKU DIY-12-HP-WM-115C25
by MRCOOL
Original price $1,738.00 - Original price $2,888.00
Original price
$1,738.00
$1,738.00 - $2,888.00
Current price $1,738.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

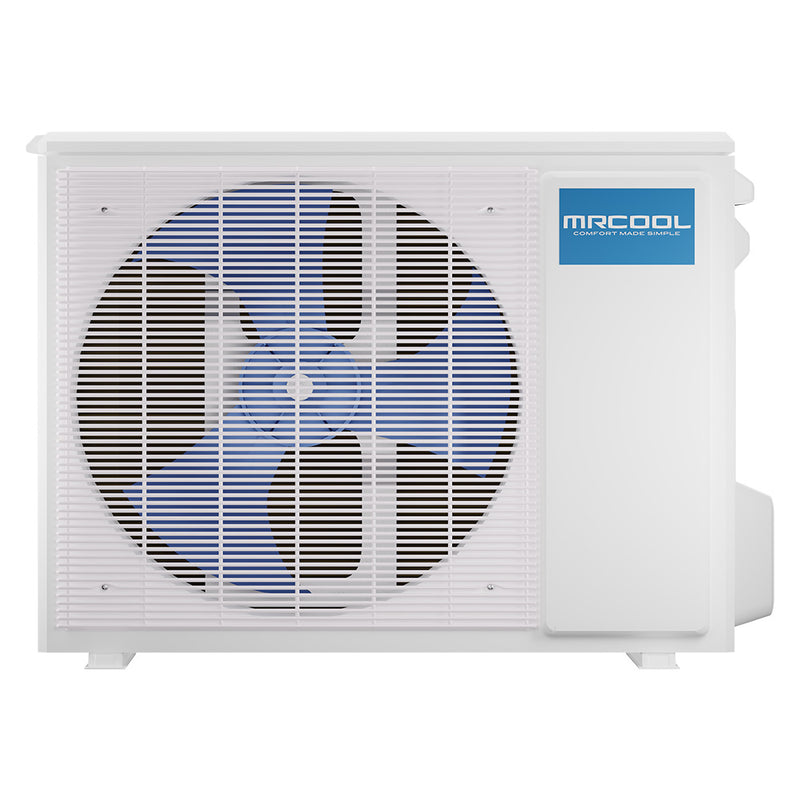

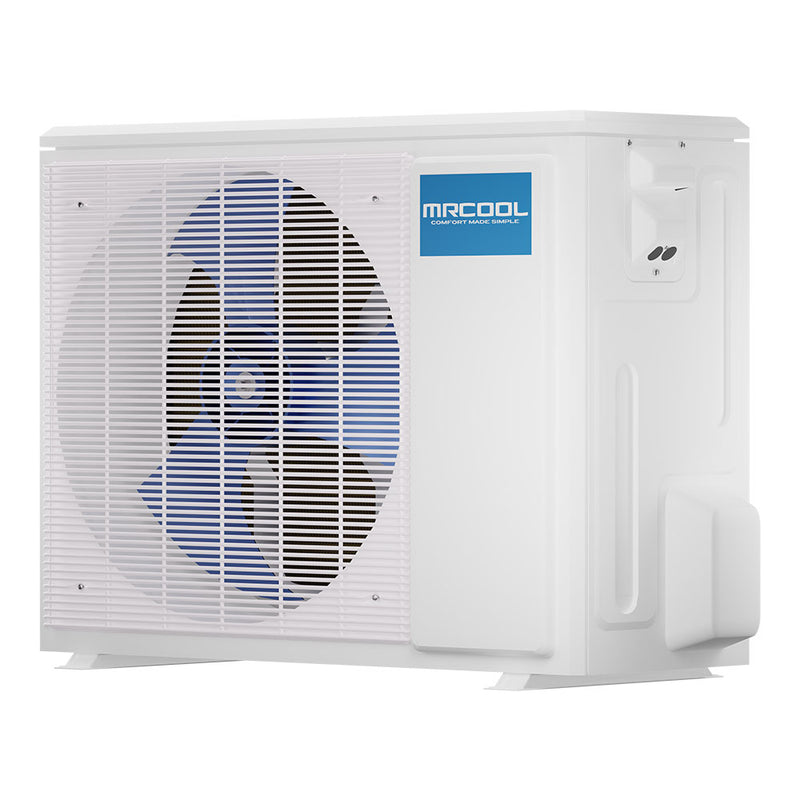

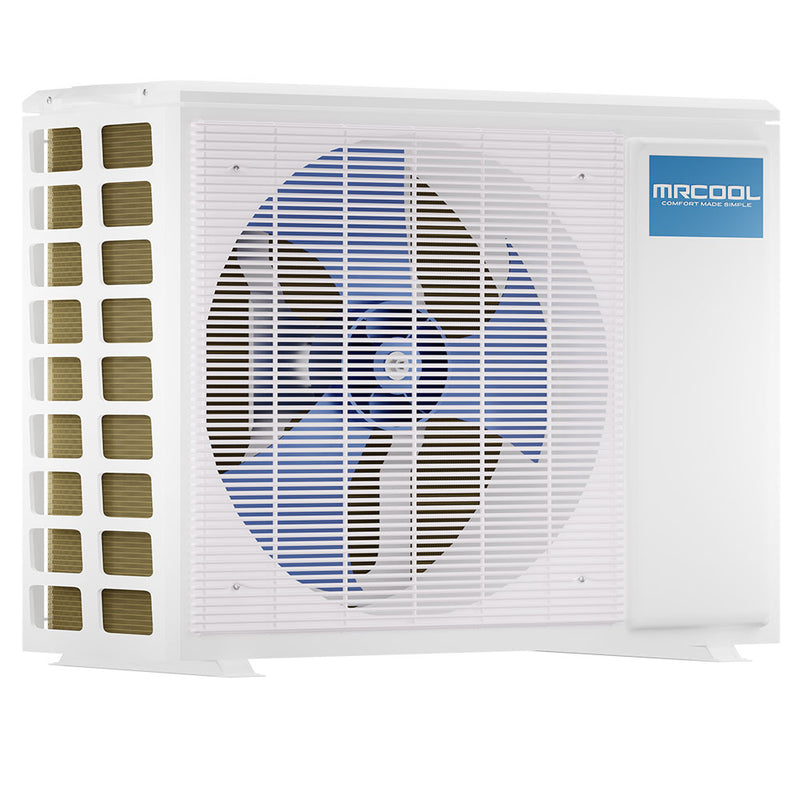

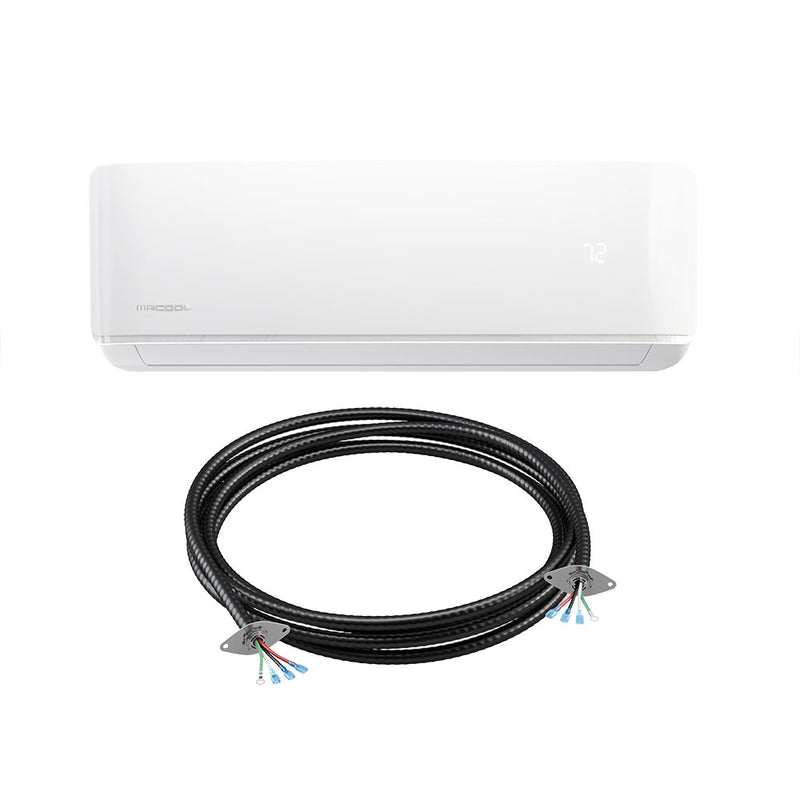

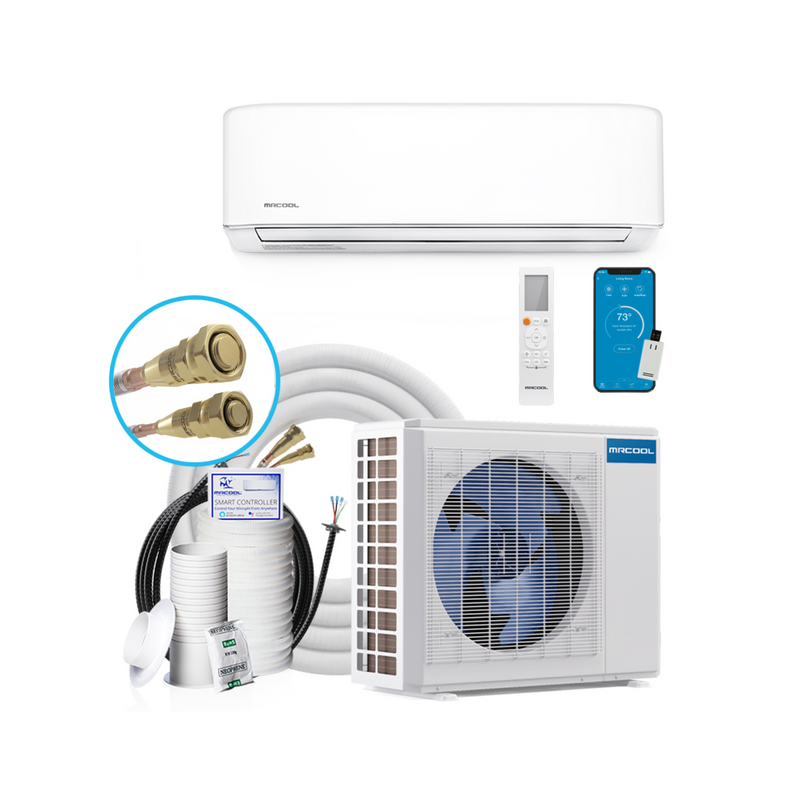

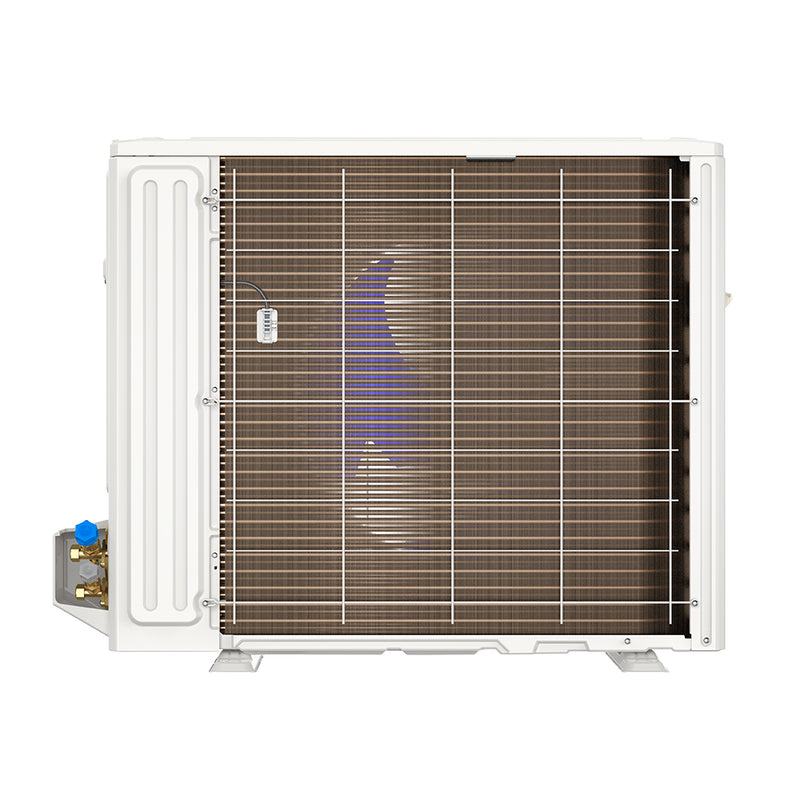

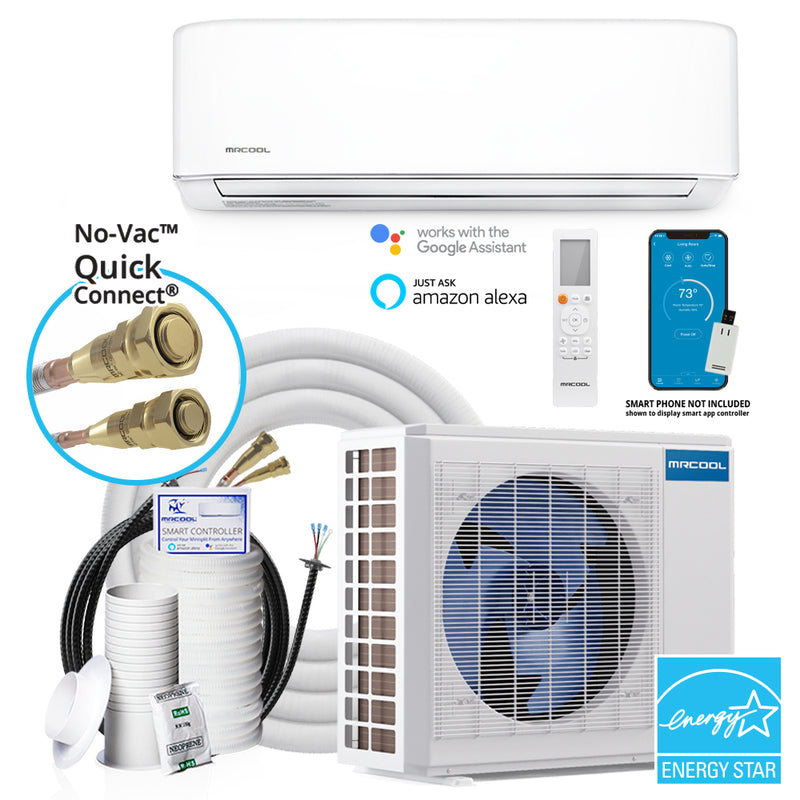

The 4th Generation MRCOOL DIY Ductless Heat Pump System is a powerful single-zone system. The system has a condenser, air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors, which require no special tools, equipment, or training to install. The MrCool DIY system also includes many features that make it stand out among its competitors. The first is its ability to achieve up to a 22 SEER efficiency rating allowing it to be Energy Star certified. This system has many operating modes to suit the user's needs, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also has the Follow Me function that adjusts the room's temperature based on the temperature being read by the hand-held remote control. The DIY offers the convenience of operating its modes and functions with your smartphone using the Smart HVAC app. The MrCool mini split is the only system on the market to offer a limited lifetime compressor warranty.

Need a customized system? Contact Us.

*Smart phone not included.

    Order Processing and Shipping

    Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

    Model Comparison

    ModelDIY-12-HP-WM-115C25DIY-18-HP-WM-230C25DIY-24-HP-WM-230C25DIY-36-HP-WM-230C25
    SEER222220.518
    SEER222.522.720.518.3
    EER12.512.512.58.7
    EER212.512.612.58.7
    COP 473.363.743.152.81
    HSPFHSPF4/HSPF5 : 11.5/9HSPF4/HSPF5 : 11.5/9HSPF4/HSPF5 : 10.5/9HSPF4/HSPF5 : 12/9
    HSPF2HSPF2-4/HSPF2-5 : 9/7HSPF2-4/HSPF2-5 : 9.8/7.2HSPF2-4/HSPF2-5 : 9.2/7.1HSPF2-4/HSPF2-5 : 8/6.4
    CFM305.88/211.76/147.06465.29/361.76/304.12605.88/505.88/364.71673.53/502.94/367.65
    Tonnage11.523
    Cooling Capacity12000 BTU18000 BTU23000BTU36000 BTU
    Heating Capacity12000 BTU18000 BTU25000 BTU36000 BTU
    Voltage115 V208-230 V208-230 V208-230 V
    Phase1111
    Cycle60 Hz60 Hz60 Hz60 Hz
    Max Fuse Breaker25 A30 A35 A35 A
    Min Circuit Ampacity19 A18 A22 A28 A
    ColorWhiteWhiteWhiteWhite
    Color FamilyWhiteWhiteWhiteWhite
    Rated Load0.53 A0.25 A0.45 A0.50 A
    Max Coverage AreaUp to 500 sqftUp to 750 sqftUp to 1000 sqftUp to 1500 sqft
    Zone Capacity1111
    Refrigerant TypeR-410AR-410AR-410AR-410A
    Refrigerant Volume38.10 oz56.44 oz81.13 oz111.1 oz
    Decibel Rating37/31/23.544.5/37/3148.5/43.5/3352/45/34
    Decibel Rating Low23.5 dBA31 dBA33 dBA34 dBA
    Decibel Rating High37 dBA44.5 dBA48.5 dBA52 dBA
    Oscillation4-W4-W4-W4-W
    InverterYesYesYesYes
    Min Ambient Cool-13F - 122F-13F - 122F-13F - 122F5F - 122F
    Min Ambient Heat-13F - 75F-13F - 75F-13F - 75F5F - 75F
    Line Set Length25ft25ft25ft25ft
    Max Lineset Length75 ft75 ft75 ft75 ft
    Liquid Line Size1/4 in1/4 in3/8 in3/8 in
    Suction Line Size1/2 in1/2 in5/8 in5/8 in
    Compressor Motor TypeRotaryRotaryTwin-RotaryRotary
    Condenser Fan Motor Rpm850/600810/720850/750/700950/250
    Blower Motor Rpm1100/850/7001120/950/7001200/1000/7001200/950/750
    Auxiliary Heater IncludedNoNoNoNo
    Auxiliary Heater AvailableNoNoNoNo
    Fan Only OptionYesYesYesYes
    Quiet ModeYesYesYesYes
    Auto CoolYesYesYesYes
    Wifi CompatibilityYesYesYesYes
    App CompatibilityYesYesYesYes
    Works With IosYesYesYesYes
    Works With AndroidYesYesYesYes
    Remote Control IncludedYesYesYesYes
    UL ListedYesYesYesYes
    Energy Star CertifiedYesYesYesNo
    AHRI CertifiedYesYesYesYes
    Registered WarrantyLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime Compressor
    Base Warranty5-year Parts/7-year Compressor5-year Parts/7-year Compressor5-year Parts/7-year Compressor5-year Parts/7-year Compressor
    Base Parts Warranty5-year Parts5-year Parts5-year Parts5-year Parts
    Registered Compressor WarrantyLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime Compressor
    Base Compressor Warranty7-year Compressor7-year Compressor7-year Compressor7-year Compressor
    Has BatteriesYesYesYesYes
    Contains ElectronicsYesYesYesYes
    Contains ChemicalsYesYesYesYes
    Contains AerosolYesYesYesYes
    Contains Compressed GasYesYesYesYes
    Proposition 65 WarningYesYesYesYes
    Restricted StatesGU;PR;VIGU;PR;VIGU;PR;VIGU;PR;VI
    Condenser Depth11.93 in13.46 in16.14 in16.14 in
    Condenser Height21.85 in26.50 in31.89 in31.89 in
    Condenser Width30.12 in35.04 in37.24 in37.24 in
    Condenser Weight65.70 lbs94.36 lbs125.22 lbs147.27 lbs
    Air Handler Depth7.44 in8.90 in8.90 in11.10 in
    Air Handler Height11.69 in13.19 in13.19 in14.25 in
    Air Handler Width31.57 in42.52 in42.52 in49.57 in
    Air Handler Weight24.03 lbs34.61 lbs35.27 lbs47.84 lbs
