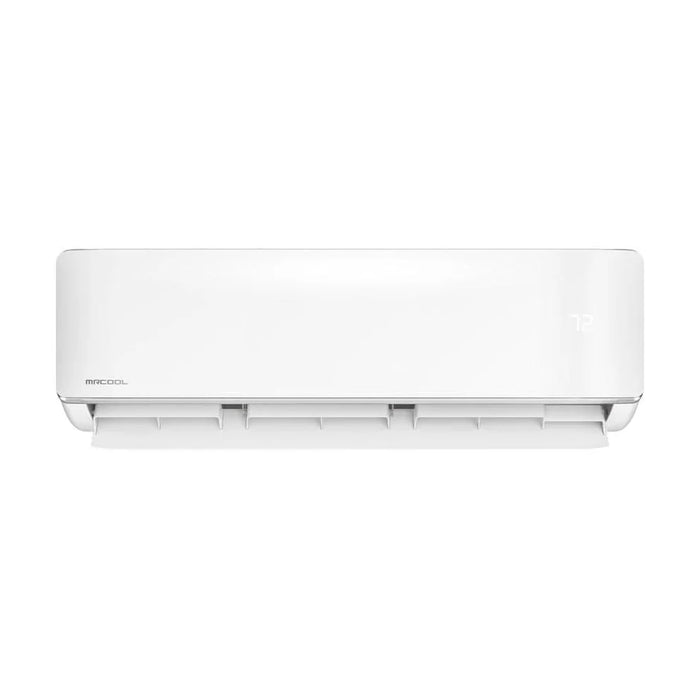

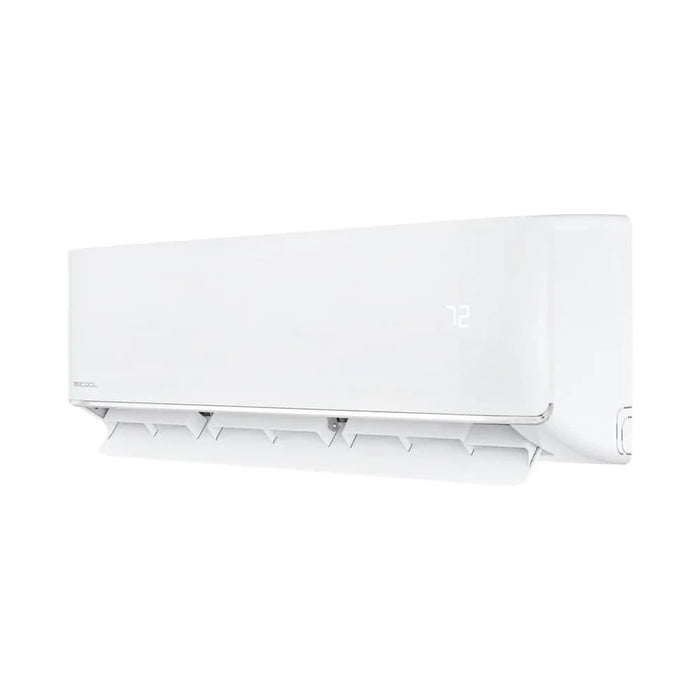

MRCOOL DIY 5th Gen E Star 24,000 BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V - DIY-24-HP-WM-230D25-O

SKU DIY-24-HP-WM-230D25-O

by MRCOOL

$3,329.00 - $3,329.00

$3,329.00

$3,329.00 - $3,329.00

$3,329.00

Availability:

in stock

The MRCOOL DIY 5th Gen E Star 24,000 BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V - DIY-24-HP-WM-230D25-O delivers powerful, energy-efficient heating and cooling for up to 1050 sq. ft. without the hassle of professional installation. Designed for true DIYers, this all-in-one system includes a pre-charged 25 ft. QuickConnect line set with eco-friendly R-454B refrigerant, allowing for quick, tool-free setup. Engineered with smart home integration in mind, it’s compatible with Amazon Alexa and Google Assistant right out of the box. With built-in smart features like auto-restart, Follow Me temperature control, and the durable DIYPRO cable for enhanced protection, this system makes year-round comfort easier and more reliable than ever.

Features:

24,000 BTU cooling and heating power for up to 1050 sq. ft.
Pre-charged 25 ft. Quick Connect line set for easy installation
SmartHVAC app, Alexa, and Google Assistant compatible
DIYPRO cable included for superior protection and safety

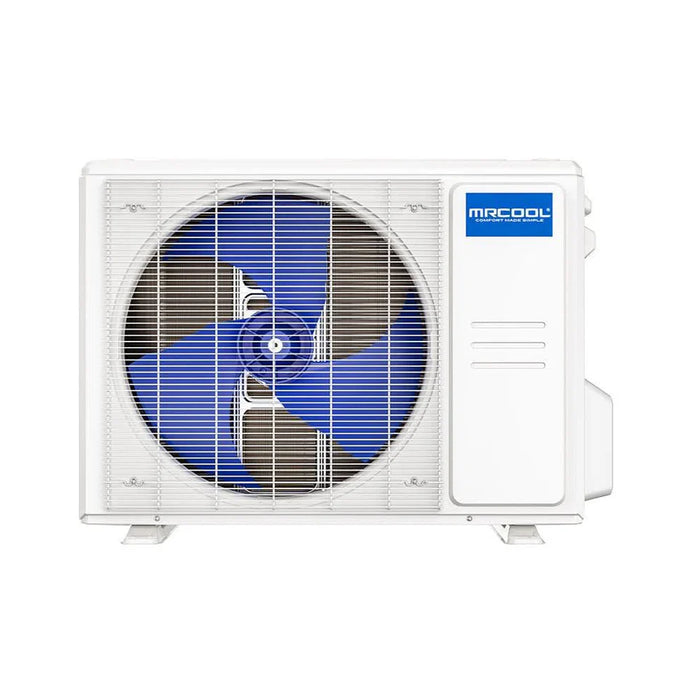

Gold fin condenser for enhanced corrosion resistance
Auto-restart after power loss retains your settings
Washable filter and dry mode to reduce humidity
Energy Star rated with 23.8 SEER | 22.7 SEER2 for high efficiency

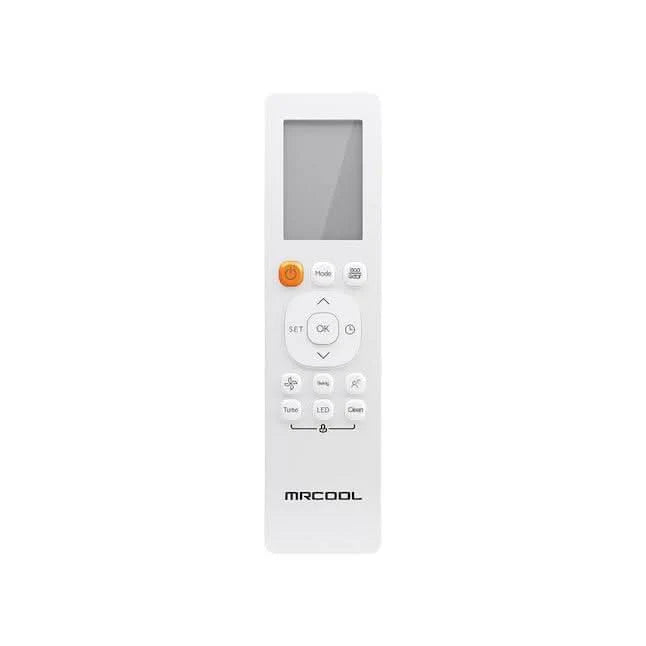

Includes remote, mounting hardware, and diagnostics tools

Quantity

Specifications

Specification	Details
Air Handler Depth	8.9 in.
Air Handler Height	13.19 in.
Air Handler Width	42.52 in.
Air Handler Weight	35.93 lb.
Condenser Depth	16.14 in.
Condenser Height	31.89 in.
Condenser Width	37.24 in.
Condenser Weight	122.80 lb.
Air Direction	4-way
Air Handler BTU	24000 BTU
BTU Cooling Rating	24000 BTU
BTU Heat Rating	24000 BTU
Amperage	25 A
Voltage	208/230 V
Coverage Area	1050 sq. ft.
Decibel Rating	59 dBA
Filter Type	Washable
Line Set Length	25 ft.
Included	Heater, Mounting Hardware, Precharged Line Set, Remote Control, Self-diagnostic tools
Mini Split Features	Auto cool, Automatic shutoff, Defrost, Fan only option, Mobile App, Overload protection, Sleep setting, Timer, Wi-Fi
Minimum Outdoor Temperature	-13°F
Mount Location	Wall Mount
Number of Cool Settings	4
Number of Fan Speeds	Variable
Number of Tons	2 ton
Pack Size	2
Power Options	Hardwired
Refrigerant Compatibility	R-454B
Smart Home	Enabled
Smart Home Protocol	Wi-Fi
Remote Access	Yes
Requires Hub	No
Voice Control Hub Required	No
Works With	Alexa, Google Assistant
Zone Capacity	1 Zone
SEER	23.8
SEER2	22.7
Color/Finish	White
Certifications	AHRI Certified, ETL Listed, Energy Star, UL Listed
Warranty	Limited lifetime warranty, 7-year compressor warranty, 5-year parts warranty
