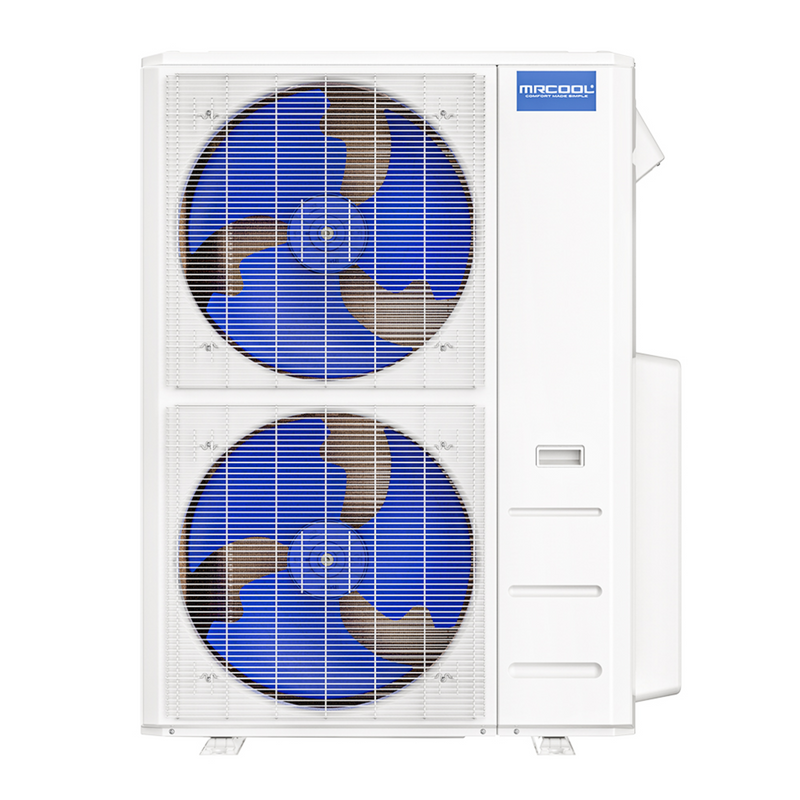

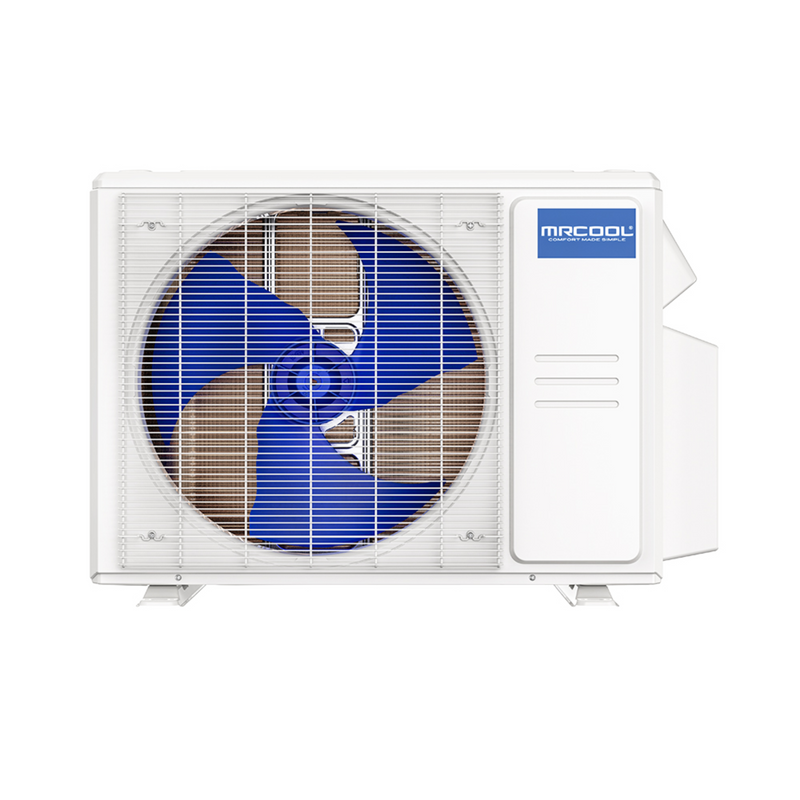

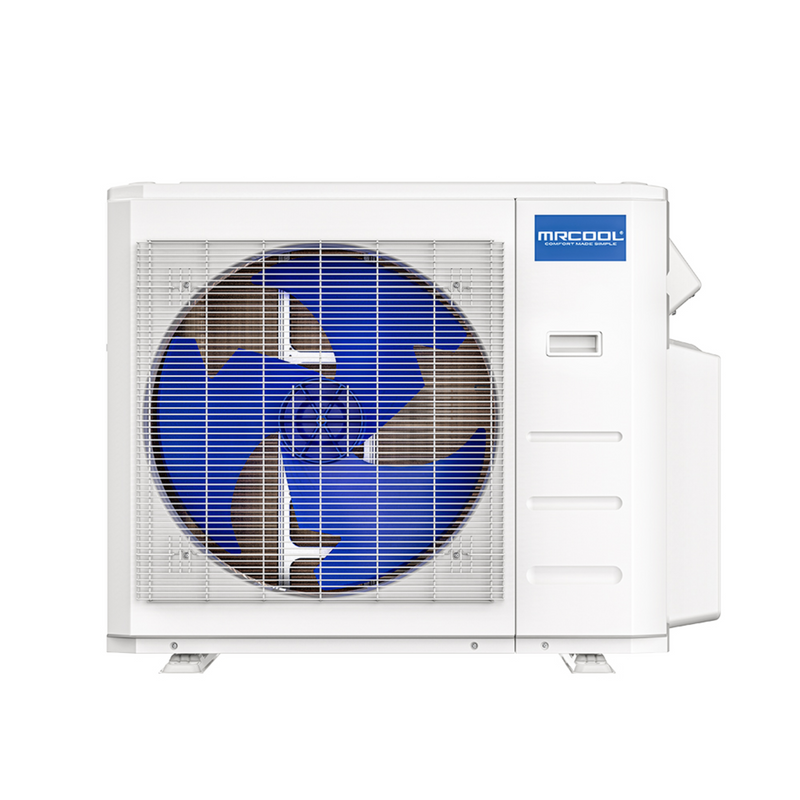

MRCOOL DIY 4th Gen Multi-Zone Condenser

SKU DIY-MULTI2-18HP230C
by MRCOOL
Original price $1,372.00 - Original price $2,814.00
Original price
$1,372.00
$1,372.00 - $2,814.00
Current price $1,372.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

The new 4th Generation MRCOOL® DIY Ductless Heat Pump Condenser series can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. Its durable Gold Fin Condenser coating has also been constructed to hold up against the weather and resist corrosion. MrCool also offers this condenser a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools.

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Model Specifications

MODELDIY-MULTI2-18HP230CDIY-MULTI3-27HP230CDIY-MULTI4-36HP230CDIY-MULTI5-48HP230C
GTIN810063869496810063869502810063869519810063869526
UPC810063869496810063869502810063869519810063869526
UNIT TYPEMini-SplitMini-SplitMini-SplitMini-Split
SEER212221.520.5
EER12.51210.511
HSPFHSPF4/HSPF5 : 10.6/8.6HSPF4/HSPF5 : 10.3/8.2HSPF4/HSPF5 : 11/8.5HSPF4/HSPF5 : 11/8.5
CFM1764.712129.412147.064500
COOLING CAPACITY18000 BTU27000 BTU36000 BTU48000 BTU
HEATING CAPACITY19000 BTU27000 BTU36000 BTU48000 BTU
VOLTAGE208-230 V208-230 V208-230 V208-230 V
PHASE1111
CYCLE60 Hz60 Hz60 Hz60 Hz
MAX FUSE BREAKER25 A40 A45 A60A
MIN CIRCUIT AMPACITY18 A26 A27 A40 A
COLORWhiteWhiteWhiteWhite
COLOR FAMILYWhiteWhiteWhiteWhite
ZONE CAPACITY2Up to 3Up to 4Up to 5
REFRIGERANT TYPER-410AR-410AR-410AR-410A
REFRIGERANT VOLUME65.26 oz91.71 oz134.04 oz162 oz
DECIBEL RATING59 dBA61 dBA65 dBA61.5 dBA
INVERTERYesYesYesYes
MIN AMBIENT COOL5F ~ 122F5F ~ 122F5F ~ 122F5F ~ 122F
MIN AMBIENT HEAT-13F ~ 75.2F-13F ~ 75.2F-13F ~ 75.2F5F ~ 75.2F
MAX LINESET LENGTH123 ft TOTAL172 ft TOTAL221 ft TOTAL221 ft TOTAL
LIQUID LINE SIZE1/4in1/4in1/4in (3/8in w/ adapter)1/4in (3/8in w/ adapter)
SUCTION LINE SIZE1/2in1/2in1/2in (5/8in w/ adapter)1/2in (5/8in w/ adapter)
COMPRESSOR MOTOR TYPETwin - RotaryTwin - RotaryRotaryRotary
CONDENSER FAN MOTOR RPM750/600/5001050/900/8501000/900/750900/850/800/750
WIFI COMPATIBILITYYesYesYesYes
APP COMPATIBILITYYesYesYesYes
WORKS WITH IOSYesYesYesYes
WORKS WITH ANDROIDYesYesYesYes
REGISTERED WARRANTYLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime Compressor
BASE WARRANTY5-year Parts/7-year Compressor5-year Parts/7-year Compressor5-year Parts/7-year Compressor5-year Parts/7-year Compressor
BASE PARTS WARRANTY5-year Parts5-year Parts5-year Parts5-year Parts
REGISTERED COMPRESSOR WARRANTYLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime CompressorLimited Lifetime Compressor
BASE COMPRESSOR WARRANTY7-year Compressor7-year Compressor7-year Compressor7-year Compressor
CONTAINS ELECTRONICSYesYesYesYes
CONTAINS CHEMICALSYesYesYesYes
CONTAINS AEROSOLYesYesYesYes
CONTAINS COMPRESSED GASYesYesYesYes
PROPOSITION 65 WARNINGYesYesYesYes
NET DEPTH13.46 in16.14 in16.14 in16.34 in
NET HEIGHT26.50 in31.89 in31.89 in52.48 in
NET WIDTH35.04 in37.24 in37.24 in37.48 in
NET WEIGHT100.53 lbs139.99 lbs170.42 lbs222.89 lbs
GROSS DEPTH17.64 in19.88 in19.88 in19.49 in
GROSS HEIGHT29.33 in35.04 in35.04 in54.33 in
GROSS WIDTH40.94 in42.91 in42.91 in43.11 in
GROSS WEIGHT111.11 lbs157.19 lbs187.83 lbs254.41 lbs
