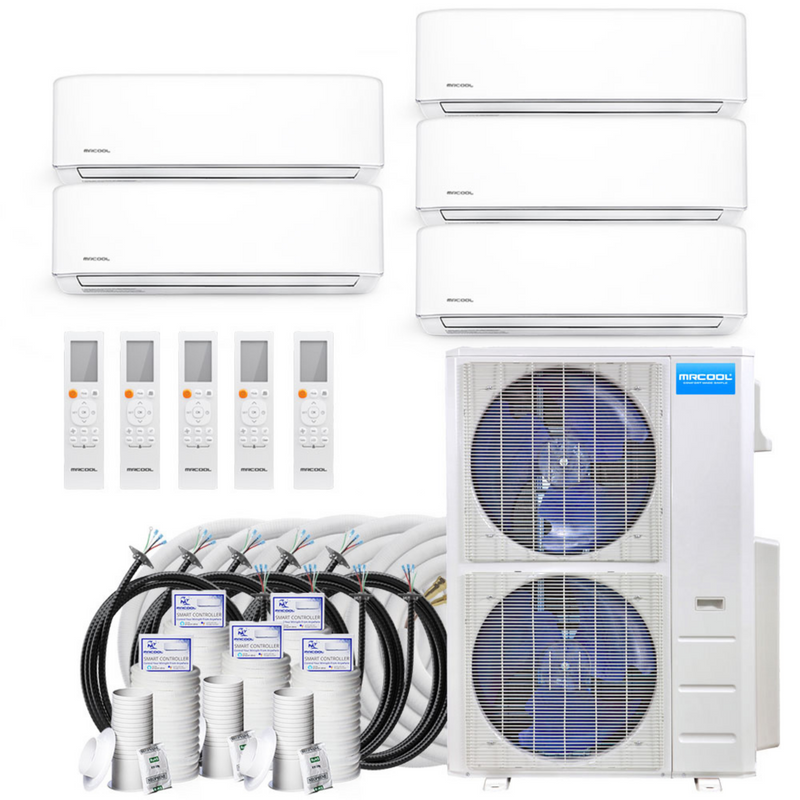

MRCOOL DIY 4th Gen 5-Zone 9K+9K+9K+9K+9K BTU System

SKU DIYM548HPW00C210
by MRCOOL
Original price $6,189.00 - Original price $7,354.00
Original price
$6,189.00
$6,189.00 - $7,354.00
Current price $6,189.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

Experience ultimate comfort and convenience with the MRCOOL DIY 4th Gen 5-Zone 9K+9K+9K+9K+9K BTU System. Its multi-zone technology empowers you with unparalleled flexibility and control, allowing you to personalize your comfort zones as you desire. Effortlessly install the ductless 9K+9K+9K+9K+9K BTU system with your choice of 25 ft, 50 ft, or 75 ft pre-charged line sets, eliminating the need for special tools or training. Seamlessly control your indoor climate from anywhere using your Apple or Android smart device and an internet connection. The included DIYPro™ Cable ensures superior mechanical protection and durability, doing away with the need for electrical conduit. With innovative features such as air temperature tracking, leakage detection, low ambient cooling, auto restart, sleep mode, and louver position memory, the MRCOOL DIY® 5th Gen 4-Zone System is the epitome of cutting-edge comfort and efficiency.

Need a customized system? Contact Us.

    Order Processing and Shipping

    Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

    Carbon-neutral shipping with Shopify Planet
    Carbon-neutral shipping on all orders
    6,781kg
    shipping emissions removed
    That's like...
    17,357
    miles driven by an average gasoline-powered car
    We fund innovations in...
    Direct Air Capture
    Bio Oil
    Mineralization

    Bundle Specifications

    BundleIncluded in Bundle
    DIYM548HPW00C210

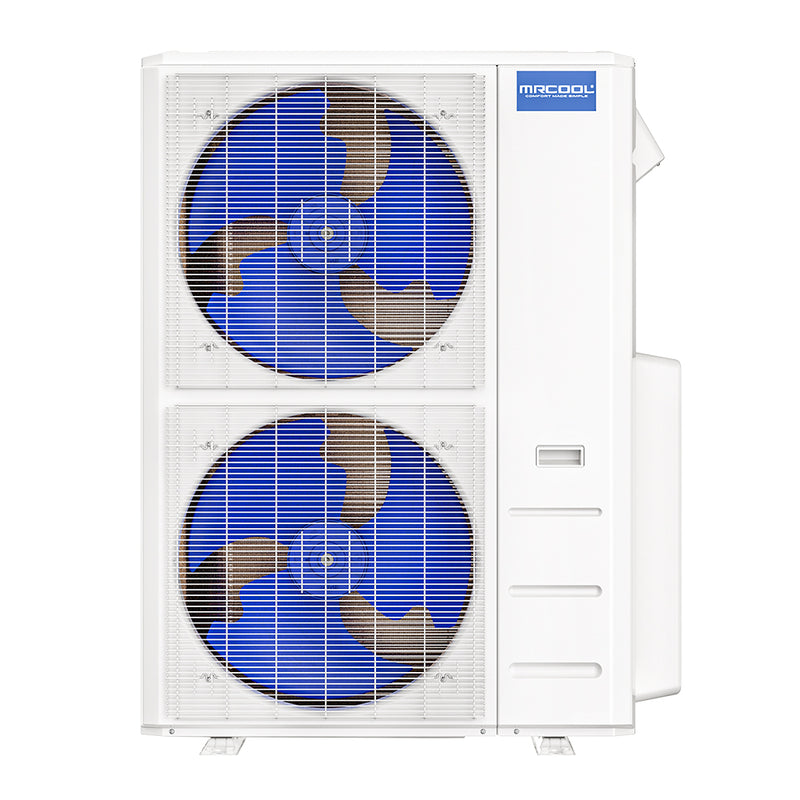

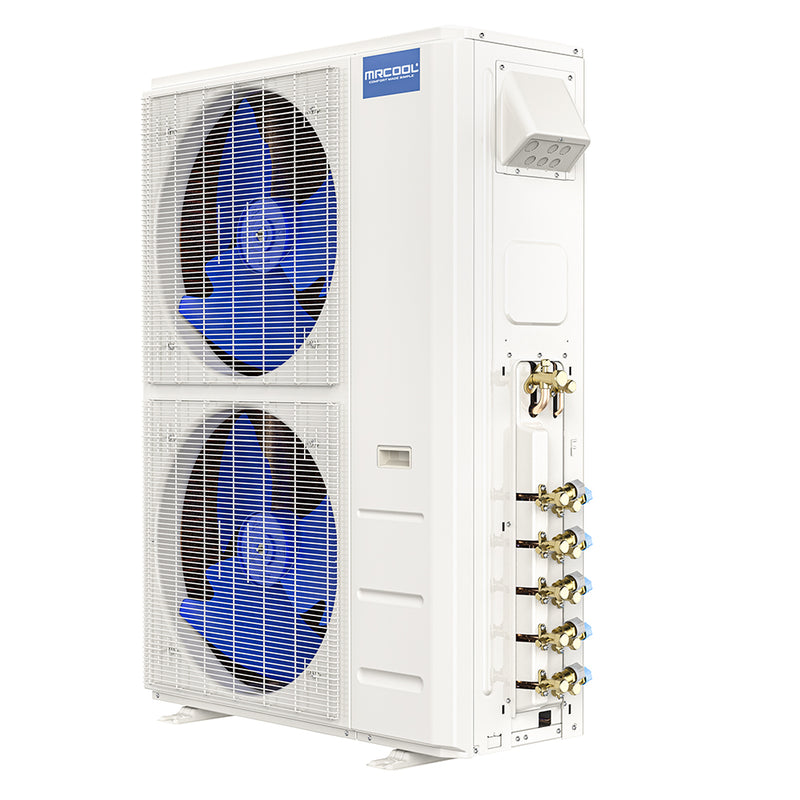

    DIY 4th Gen Multi-Zone 5-Zone Condenser - DIY-MULTI5-48HP230C
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    Line Set - DIY25-1412
    Line Set - DIY25-1412
    Line Set - DIY25-1412

    Line Set - DIY25-1412

    Line Set - DIY25-1412

    DIYM548HPW00C213

    DIY 4th Gen Multi-Zone 5-Zone Condenser - DIY-MULTI5-48HP230CDIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    Line Set - DIY25-1412

    Line Set - DIY25-1412
    Line Set - DIY25-1412

    Line Set - DIY25-1412
    Line Set - DIY50-1412C

    DIYM548HPW00C225

    DIY 4th Gen Multi-Zone 5-Zone Condenser - DIY-MULTI5-48HP230CDIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    Line Set - DIY25-1412

    Line Set - DIY25-1412

    Line Set - DIY25-1412
    Line Set - DIY50-1412C
    Line Set - DIY50-1412C

    DIYM548HPW00C227

    DIY 4th Gen Multi-Zone 5-Zone Condenser - DIY-MULTI5-48HP230CDIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25
    Line Set - DIY25-1412

    Line Set - DIY25-1412

    Line Set - DIY25-1412

    Line Set - DIY50-1412C
    Line Set - DIY50-1412C

    Line Set - DIY25-1412

    Line Set - DIY50-1412C

    DIYCOUPLER-1412K75C



    MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser Specifications
    MODELDIY-MULTI4-36HP230C
    GTIN810063869519
    UPC810063869519
    UNIT TYPEMini-Split
    SEER21.5
    EER10.5
    HSPFHSPF4/HSPF5 : 11/8.5
    CFM2147.06
    COOLING CAPACITY36000 BTU
    HEATING CAPACITY36000 BTU
    VOLTAGE208-230 V
    PHASE1
    CYCLE60 Hz
    MAX FUSE BREAKER45 A
    MIN CIRCUIT AMPACITY27 A
    COLORWhite
    COLOR FAMILYWhite
    ZONE CAPACITYUp to 4
    REFRIGERANT TYPER-410A
    REFRIGERANT VOLUME134.04 oz
    DECIBEL RATING65 dBA
    INVERTERYes
    MIN AMBIENT COOL5F ~ 122F
    MIN AMBIENT HEAT-13F ~ 75.2F
    MAX LINESET LENGTH221 ft TOTAL
    LIQUID LINE SIZE1/4in (3/8in w/ adapter)
    SUCTION LINE SIZE1/2in (5/8in w/ adapter)
    COMPRESSOR MOTOR TYPERotary
    CONDENSER FAN MOTOR RPM1000/900/750
    WIFI COMPATIBILITYYes
    APP COMPATIBILITYYes
    WORKS WITH IOSYes
    WORKS WITH ANDROIDYes
    REGISTERED WARRANTYLimited Lifetime Compressor
    BASE WARRANTY5-year Parts/7-year Compressor
    BASE PARTS WARRANTY5-year Parts
    REGISTERED COMPRESSOR WARRANTYLimited Lifetime Compressor
    BASE COMPRESSOR WARRANTY7-year Compressor
    CONTAINS ELECTRONICSYes
    CONTAINS CHEMICALSYes
    CONTAINS AEROSOLYes
    CONTAINS COMPRESSED GASYes
    PROPOSITION 65 WARNINGYes
    NET DEPTH16.14 in
    NET HEIGHT31.89 in
    NET WIDTH37.24 in
    NET WEIGHT170.42 lbs
    GROSS DEPTH19.88 in
    GROSS HEIGHT35.04 in
    GROSS WIDTH42.91 in
    GROSS WEIGHT187.83 lbs



    DIY 4th Gen Wall Mount Air Handler Specifications
    MODELDIY-09-HP-WMAH-230C25
    GTIN810063869533
    UPC810063869533
    UNIT TYPEMini Split
    SHORT DESCRIPTIONMRCOOL® E Star DIY 4th Gen 9k BTU Ductless Mini-Split Air Handler 230V/60Hz
    LONG DESCRIPTIONAs part of a MRCOOL® DIY system, the MRCOOL® DIY 9K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 375 sq. ft. It is also incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate. To take the simplicity of the installation even further, this air handler is designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. The line set is equipped with quick connectors which give a DIY installer the ability to connect the refrigerant piping with wrenches. The line set comes from the factory pre-charged with the correct amount of R-410A refrigerant, so no vacuuming is necessary. Let the MrCool 4th Generation 9K BTU Ductless Wall Mounted Air Handler all of the heating and cooling necessities of your home.
    BULLET 2SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
    BULLET 3Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
    BULLET 4Compatible with Amazon Alexa and Google Assistant
    BULLET 5Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
    COOLING CAPACITY9000 BTU
    HEATING CAPACITY9000 BTU
    VOLTAGE208-230 V
    PHASE1
    CYCLE60 Hz
    MAX FUSE BREAKER15 A
    MIN CIRCUIT AMPACITY3 A
    MOUNT TYPEWall
    COLORWhite
    COLOR FAMILYWhite
    MAX COVERAGE AREAUp to 375 sqft
    REFRIGERANT TYPER-410A
    DECIBEL RATING35 dBA
    DECIBEL RATING LOW25 dBA
    DECIBEL RATING HIGH40 dBA
    INVERTERYes
    LIQUID LINE SIZE1/4 in
    SUCTION LINE SIZE1/2 in
    BLOWER MOTOR RPM1050/850/650
    FAN ONLY OPTIONYes
    QUIET MODEYes
    AUTO COOLYes
    WIFI COMPATIBILITYYes
    APP COMPATIBILITYYes
    WORKS WITH IOSYes
    WORKS WITH ANDROIDYes
    REMOTE CONTROL INCLUDEDYes
    ENERGY STAR CERTIFIEDYes
    AHRI CERTIFIEDYes
    REGISTERED WARRANTYLimited Lifetime Compressor
    BASE WARRANTY5-year Parts/7-year Compressor
    BASE PARTS WARRANTY5-year Parts
    REGISTERED COMPRESSOR WARRANTYLimited Lifetime Compressor
    BASE COMPRESSOR WARRANTY7-year Compressor
    HAS BATTERIESYes
    CONTAINS ELECTRONICSYes
    CONTAINS CHEMICALSYes
    CONTAINS AEROSOLYes
    CONTAINS COMPRESSED GASYes
    PROPOSITION 65 WARNINGYes
    RESTRICTED STATESGU;PR;VI
    NET DEPTH7.44 in
    NET HEIGHT11.69 in
    NET WIDTH31.57 in
    NET WEIGHT23.81 lbs
    GROSS DEPTH16.34 in
    GROSS HEIGHT13.98 in
    GROSS WIDTH36.02 in
    GROSS WEIGHT34.39 lbs
