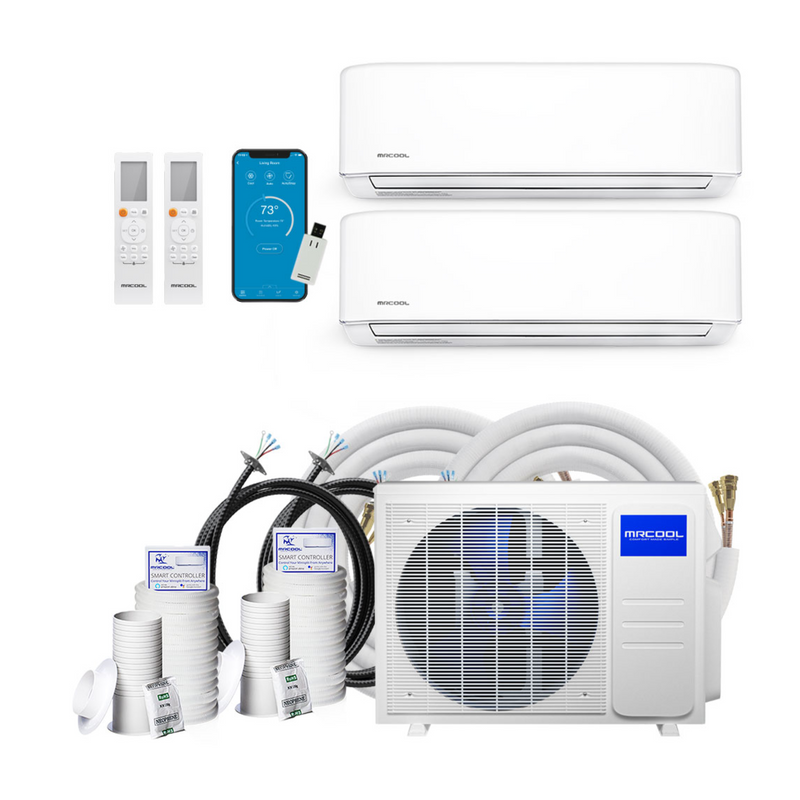

MRCOOL DIY 4th Gen 2-Zone 9K+9K BTU System

SKU DIYM218HPW00C00
by MRCOOL
Original price $2,666.00 - Original price $3,282.00
Original price
$2,666.00
$2,666.00 - $3,282.00
Current price $2,666.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

Experience ultimate comfort and convenience with the MRCOOL DIY 4th Gen 2-Zone 9K+9K BTU System. Its multi-zone technology empowers you with unparalleled flexibility and control, allowing you to personalize your comfort zones as you desire. Effortlessly install the ductless system with your choice of 16 ft, 25 ft, 35 ft, or 50 ft pre-charged line sets, eliminating the need for special tools or training. Seamlessly control your indoor climate from anywhere using your Apple or Android smart device and an internet connection. The included DIYPro™ Cable ensures superior mechanical protection and durability, doing away with the need for electrical conduit. With innovative features such as air temperature tracking, leakage detection, low ambient cooling, auto restart, sleep mode, and louver position memory, the MRCOOL DIY® 4th Gen 2-Zone System is the epitome of cutting-edge comfort and efficiency.

*Smart phone not included.

    Order Processing and Shipping

    Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

    Bundle Specifications

    MRCOOL DIY 4th Gen 2-Zone 9K+9K BTU System BundlesComponents in BundleLineBTU
    DIYM218HPW00C00DIY-MULTI2-18HP230C
    DIY-09-HP-WMAH-230C25
    DIY-09-HP-WMAH-230C25
    DIY16-1412
    DIY16-1412
    16ft + 16ft9K +9K
    DIYM218HPW00C07DIY-MULTI2-18HP230C
    DIY-09-HP-WMAH-230C25
    DIY-09-HP-WMAH-230C25
    DIY25-1412
    DIY25-1412
    25 ft + 25 ft9K + 9K
    DIYM218HPW00C13DIY-MULTI2-18HP230C
    DIY-09-HP-WMAH-230C25
    DIY-09-HP-WMAH-230C25
    DIY35-1412C
    DIY35-1412C
    35 ft + 35 ft9K + 9K
    DIYM218HPW00C22DIY-MULTI2-18HP230C
    DIY-09-HP-WMAH-230C25
    DIY-09-HP-WMAH-230C25
    DIY50-1412C
    DIY50-1412C
    50 ft + 50 ft9K + 9K

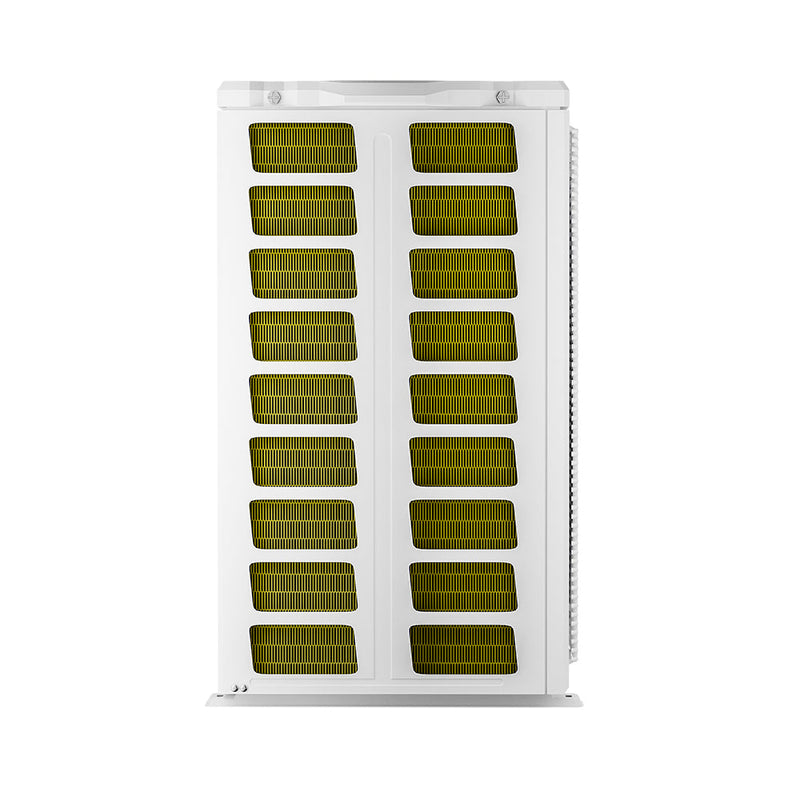

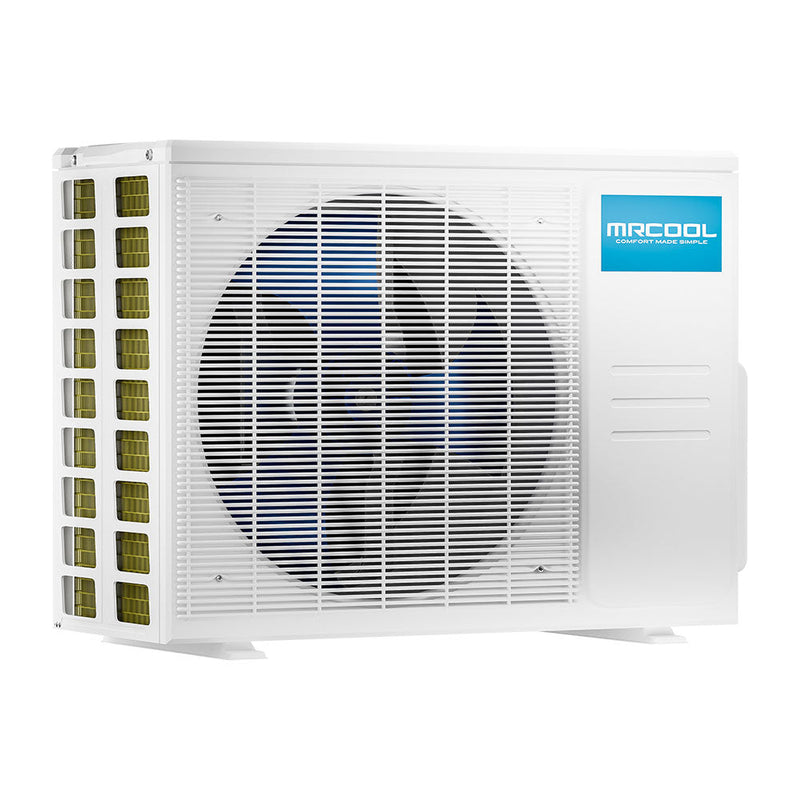

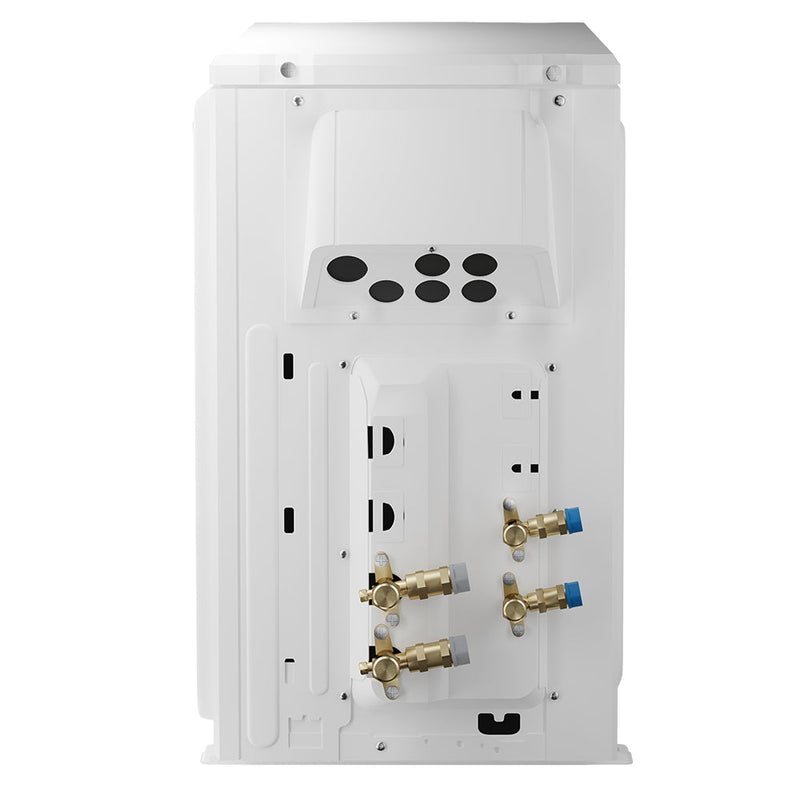

    MRCOOL® DIY 4th Gen Multi-Zone 2-Zone Condenser - DIY-MULTI2-18HP230C Specifications
    SEER21
    EER12.5
    HSPFHSPF4/HSPF5 : 10.6/8.6
    CFM1764.71
    COOLING CAPACITY18000 BTU
    HEATING CAPACITY19000 BTU
    VOLTAGE208-230 V
    PHASE1
    CYCLE60 Hz
    MAX FUSE BREAKER25 A
    MIN CIRCUIT AMPACITY18 A
    COLORWhite
    COLOR FAMILYWhite
    ZONE CAPACITY2
    REFRIGERANT TYPER-410A
    REFRIGERANT VOLUME65.26 oz
    DECIBEL RATING59 dBA
    INVERTERYes
    MIN AMBIENT COOL5F ~ 122F
    MIN AMBIENT HEAT-13F ~ 75.2F
    MAX LINESET LENGTH123 ft TOTAL
    LIQUID LINE SIZE1/4in
    SUCTION LINE SIZE1/2in
    COMPRESSOR MOTOR TYPETwin - Rotary
    CONDENSER FAN MOTOR RPM750/600/500
    WIFI COMPATIBILITYYes
    APP COMPATIBILITYYes
    WORKS WITH IOSYes
    WORKS WITH ANDROIDYes
    REGISTERED WARRANTYLimited Lifetime Compressor
    BASE WARRANTY5-year Parts/7-year Compressor
    BASE PARTS WARRANTY5-year Parts
    REGISTERED COMPRESSOR WARRANTYLimited Lifetime Compressor
    BASE COMPRESSOR WARRANTY7-year Compressor
    CONTAINS ELECTRONICSYes
    CONTAINS CHEMICALSYes
    CONTAINS AEROSOLYes
    CONTAINS COMPRESSED GASYes
    PROPOSITION 65 WARNINGYes
    NET DEPTH13.46 in
    NET HEIGHT26.50 in
    NET WIDTH35.04 in
    NET WEIGHT100.53 lbs
    GROSS DEPTH17.64 in
    GROSS HEIGHT29.33 in
    GROSS WIDTH40.94 in
    GROSS WEIGHT111.11 lbs



    DIY 4th Gen Wall Mount Air Handler - DIY-09-HP-WMAH-230C25 Specifications
    COOLING CAPACITY9000 BTU
    HEATING CAPACITY9000 BTU
    VOLTAGE208-230 V
    PHASE1
    CYCLE60 Hz
    MAX FUSE BREAKER15 A
    MIN CIRCUIT AMPACITY3 A
    MOUNT TYPEWall
    COLORWhite
    COLOR FAMILYWhite
    MAX COVERAGE AREAUp to 375 sqft
    REFRIGERANT TYPER-410A
    DECIBEL RATING35 dBA
    DECIBEL RATING LOW25 dBA
    DECIBEL RATING HIGH40 dBA
    INVERTERYes
    LIQUID LINE SIZE1/4 in
    SUCTION LINE SIZE1/2 in
    BLOWER MOTOR RPM1050/850/650
    FAN ONLY OPTIONYes
    QUIET MODEYes
    AUTO COOLYes
    WIFI COMPATIBILITYYes
    APP COMPATIBILITYYes
    WORKS WITH IOSYes
    WORKS WITH ANDROIDYes
    REMOTE CONTROL INCLUDEDYes
    ENERGY STAR CERTIFIEDYes
    AHRI CERTIFIEDYes
    REGISTERED WARRANTYLimited Lifetime Compressor
    BASE WARRANTY5-year Parts/7-year Compressor
    BASE PARTS WARRANTY5-year Parts
    REGISTERED COMPRESSOR WARRANTYLimited Lifetime Compressor
    BASE COMPRESSOR WARRANTY7-year Compressor
    HAS BATTERIESYes
    CONTAINS ELECTRONICSYes
    CONTAINS CHEMICALSYes
    CONTAINS AEROSOLYes
    CONTAINS COMPRESSED GASYes
    PROPOSITION 65 WARNINGYes
    RESTRICTED STATESGU;PR;VI
    NET DEPTH7.44 in
    NET HEIGHT11.69 in
    NET WIDTH31.57 in
    NET WEIGHT23.81 lbs
    GROSS DEPTH16.34 in
    GROSS HEIGHT13.98 in
    GROSS WIDTH36.02 in
    GROSS WEIGHT34.39 lbs
