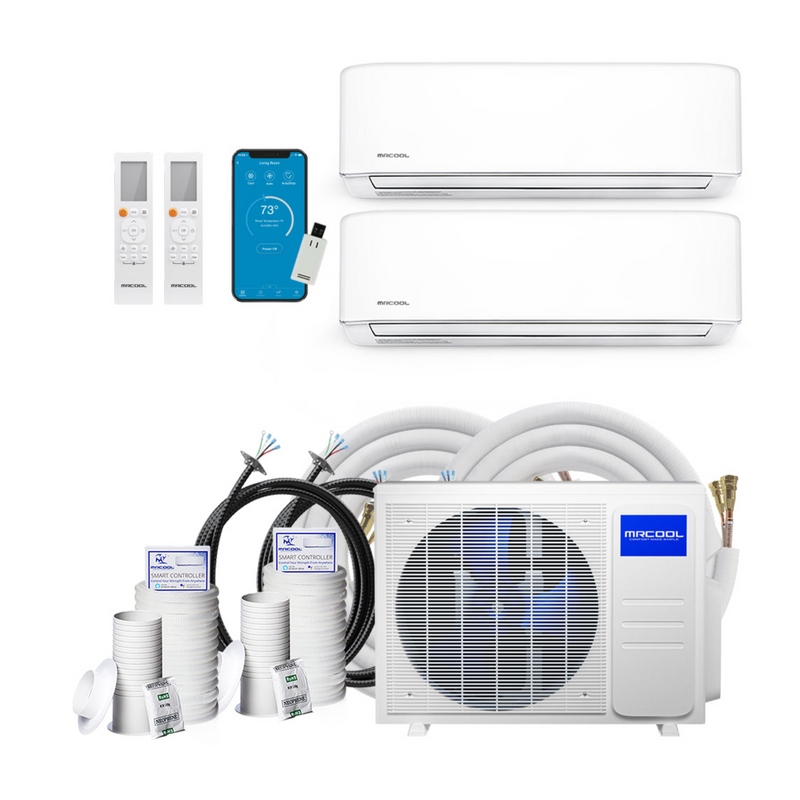

MRCOOL DIY 4th Gen 2-Zone 9K+12K BTU System

SKU DIYM218HPW01C00
by MRCOOL
Original price $2,798.00 - Original price $3,415.00
Original price
$2,798.00
$2,798.00 - $3,415.00
Current price $2,798.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

Experience ultimate comfort and convenience with the MRCOOL DIY 4th Gen 2-Zone 9K+12K BTU System. Its multi-zone technology empowers you with unparalleled flexibility and control, allowing you to personalize your comfort zones as you desire. Effortlessly install the ductless 9K+12K BTU system with your choice of 16 ft, 25 ft, 35 ft, or 50 ft pre-charged line sets, eliminating the need for special tools or training. Seamlessly control your indoor climate from anywhere using your Apple or Android smart device and an internet connection. The included DIYPro™ Cable ensures superior mechanical protection and durability, doing away with the need for electrical conduit. With innovative features such as air temperature tracking, leakage detection, low ambient cooling, auto restart, sleep mode, and louver position memory, the MRCOOL DIY® 4th Gen 2-Zone System is the epitome of cutting-edge comfort and efficiency.

Need a customized system? Contact Us.

*Smart phone not included.

    Order Processing and Shipping

    Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

    Bundle Specifications

    MRCOOL DIY 4th Gen 2-Zone 9K+12K BTU System BundlesComponents in BundleLine BTU
    DIYM218HPW01C00

    DIY-MULTI2-18HP230C

    DIY-09-HP-WMAH-230C25

    DIY-12-HP-WMAH-230C25

    DIY16-1412

    DIY16-1412

    16 ft + 16 ft9K + 12K
    DIYM218HPW01C07

    DIY-MULTI2-18HP230C

    DIY-09-HP-WMAH-230C25

    DIY-12-HP-WMAH-230C25

    DIY25-1412

    DIY25-1412

    25 ft + 25 ft9K + 12K
    DIYM218HPW01C13

    DIY-MULTI2-18HP230C

    DIY-09-HP-WMAH-230C25

    DIY-12-HP-WMAH-230C25

    DIY35-1412C

    DIY35-1412C

    35 ft + 35ft9K + 12K
    DIYM218HPW01C22

    DIY-MULTI2-18HP230C

    DIY-09-HP-WMAH-230C25

    DIY-12-HP-WMAH-230C25

    DIY50-1412C

    DIY50-1412C

    50 ft +50 ft9K + 12K

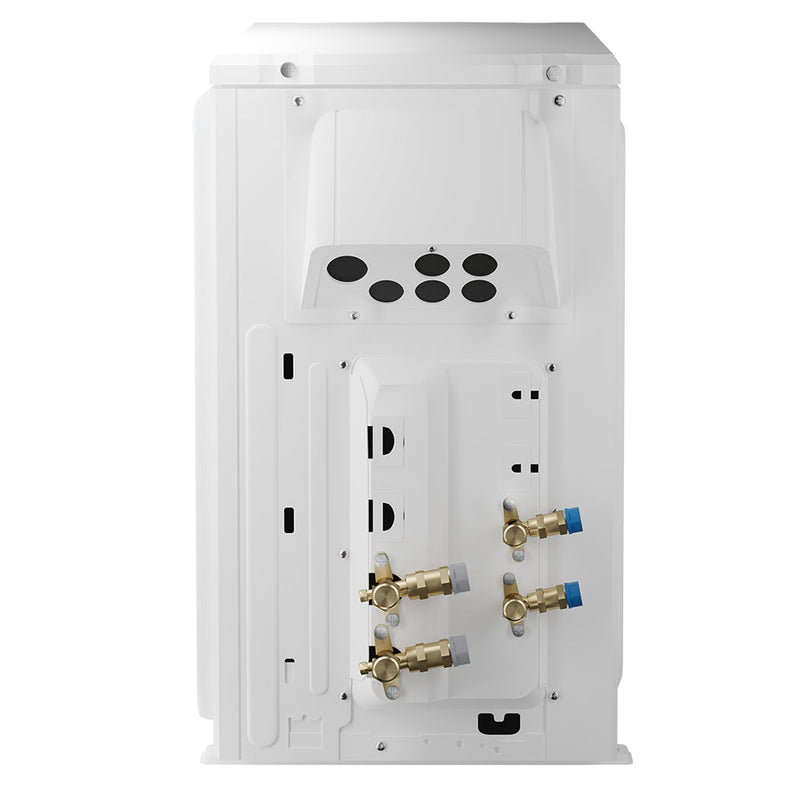

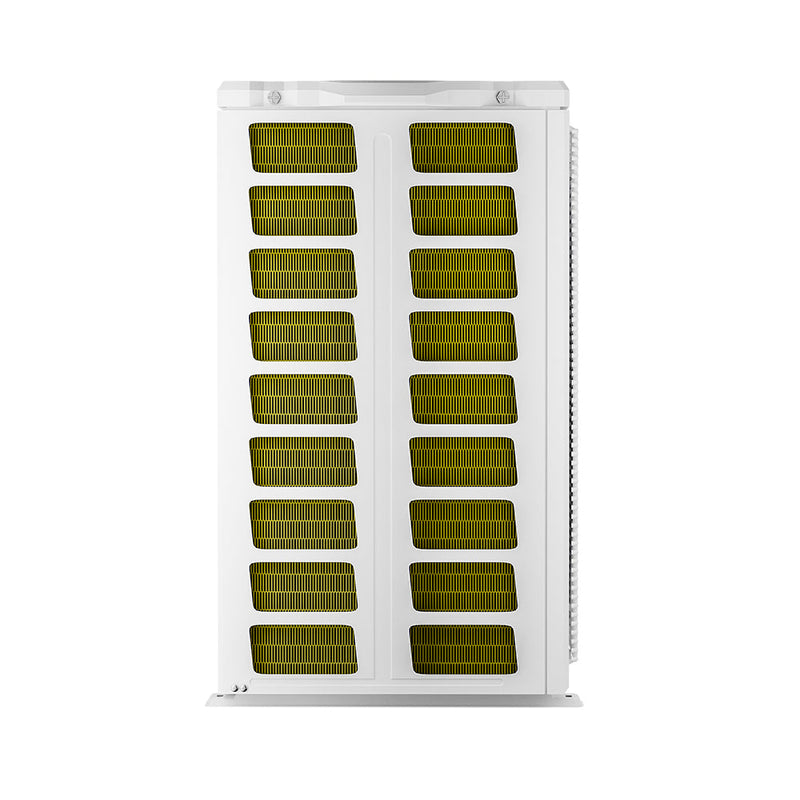

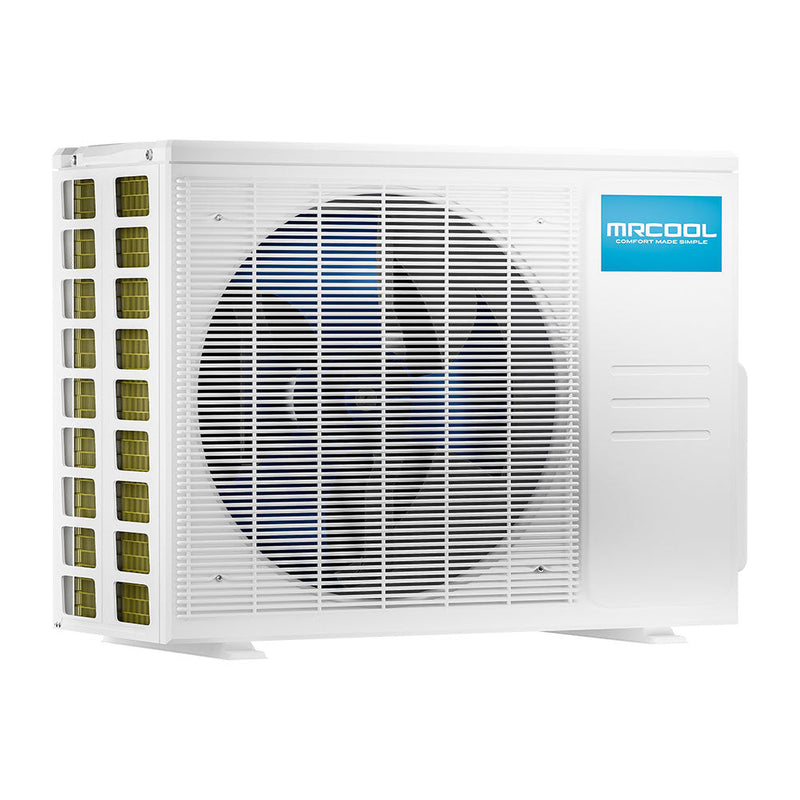

    MRCOOL® DIY 4th Gen Multi-Zone 2-Zone Condenser - DIY-MULTI2-18HP230C Specifications
    SEER21
    EER12.5
    HSPFHSPF4/HSPF5 : 10.6/8.6
    CFM1764.71
    COOLING CAPACITY18000 BTU
    HEATING CAPACITY19000 BTU
    VOLTAGE208-230 V
    PHASE1
    CYCLE60 Hz
    MAX FUSE BREAKER25 A
    MIN CIRCUIT AMPACITY18 A
    COLORWhite
    COLOR FAMILYWhite
    ZONE CAPACITY2
    REFRIGERANT TYPER-410A
    REFRIGERANT VOLUME65.26 oz
    DECIBEL RATING59 dBA
    INVERTERYes
    MIN AMBIENT COOL5F ~ 122F
    MIN AMBIENT HEAT-13F ~ 75.2F
    MAX LINESET LENGTH123 ft TOTAL
    LIQUID LINE SIZE1/4in
    SUCTION LINE SIZE1/2in
    COMPRESSOR MOTOR TYPETwin - Rotary
    CONDENSER FAN MOTOR RPM750/600/500
    WIFI COMPATIBILITYYes
    APP COMPATIBILITYYes
    WORKS WITH IOSYes
    WORKS WITH ANDROIDYes
    REGISTERED WARRANTYLimited Lifetime Compressor
    BASE WARRANTY5-year Parts/7-year Compressor
    BASE PARTS WARRANTY5-year Parts
    REGISTERED COMPRESSOR WARRANTYLimited Lifetime Compressor
    BASE COMPRESSOR WARRANTY7-year Compressor
    CONTAINS ELECTRONICSYes
    CONTAINS CHEMICALSYes
    CONTAINS AEROSOLYes
    CONTAINS COMPRESSED GASYes
    PROPOSITION 65 WARNINGYes
    NET DEPTH13.46 in
    NET HEIGHT26.50 in
    NET WIDTH35.04 in
    NET WEIGHT100.53 lbs
    GROSS DEPTH17.64 in
    GROSS HEIGHT29.33 in
    GROSS WIDTH40.94 in
    GROSS WEIGHT111.11 lbs



    DIY 4th Gen Wall Mount Air Handler SpecificationsDIY-09-HP-WMAH-230C25DIY-12-HP-WMAH-230C25
    COOLING CAPACITY9000 BTU12000 BTU
    HEATING CAPACITY9000 BTU12000 BTU
    VOLTAGE208-230 V208-230 V
    PHASE11
    CYCLE60 Hz60 Hz
    MAX FUSE BREAKER15 A15 A
    MIN CIRCUIT AMPACITY3 A3 A
    MOUNT TYPEWallWall
    COLORWhiteWhite
    COLOR FAMILYWhiteWhite
    MAX COVERAGE AREAUp to 375 sqftUp to 500 sqft
    REFRIGERANT TYPER-410AR-410A
    DECIBEL RATING35 dBA35 dBA
    DECIBEL RATING LOW25 dBA25 dBA
    DECIBEL RATING HIGH40 dBA40 dBA
    INVERTERYesYes
    LIQUID LINE SIZE1/4 in1/4 in
    SUCTION LINE SIZE1/2 in1/2 in
    BLOWER MOTOR RPM1050/850/6501050/850/650
    FAN ONLY OPTIONYesYes
    QUIET MODEYesYes
    AUTO COOLYesYes
    WIFI COMPATIBILITYYesYes
    APP COMPATIBILITYYesYes
    WORKS WITH IOSYesYes
    WORKS WITH ANDROIDYesYes
    REMOTE CONTROL INCLUDEDYesYes
    ENERGY STAR CERTIFIEDYesYes
    AHRI CERTIFIEDYesYes
    REGISTERED WARRANTYLimited Lifetime CompressorLimited Lifetime Compressor
    BASE WARRANTY5-year Parts/7-year Compressor5-year Parts/7-year Compressor
    BASE PARTS WARRANTY5-year Parts5-year Parts
    REGISTERED COMPRESSOR WARRANTYLimited Lifetime CompressorLimited Lifetime Compressor
    BASE COMPRESSOR WARRANTY7-year Compressor7-year Compressor
    HAS BATTERIESYesYes
    CONTAINS ELECTRONICSYesYes
    CONTAINS CHEMICALSYesYes
    CONTAINS AEROSOLYesYes
    CONTAINS COMPRESSED GASYesYes
    PROPOSITION 65 WARNINGYesYes
    RESTRICTED STATESGU;PR;VIGU;PR;VI
    NET DEPTH7.44 in7.44 in
    NET HEIGHT11.69 in11.69 in
    NET WIDTH31.57 in31.57 in
    NET WEIGHT23.81 lbs23.81 lbs
    GROSS DEPTH16.34 in16.34 in
    GROSS HEIGHT13.98 in13.98 in
    GROSS WIDTH36.02 in36.02 in
    GROSS WEIGHT34.39 lbs34.39 lbs
