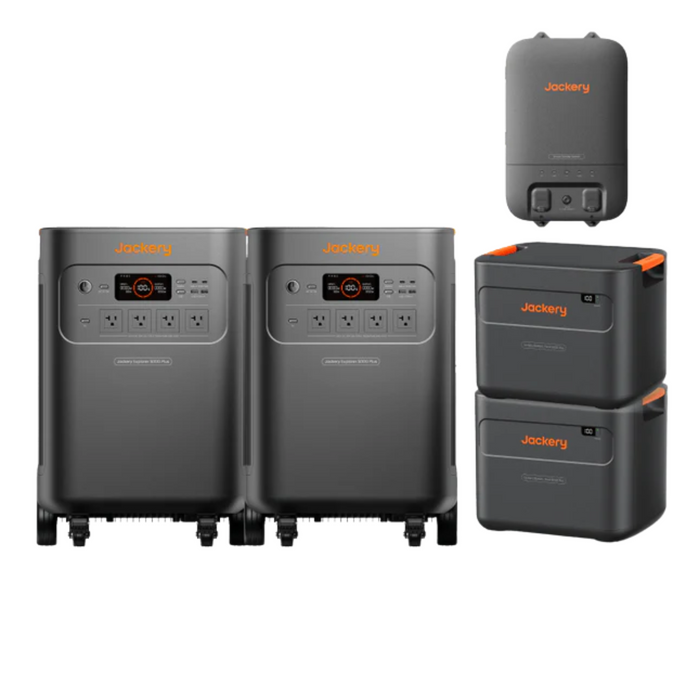

Jackery Whole-Home Backup Kit 5000 Plus (20kWh) - 60-505000-US00057

SKU 60-505000-US00057
by Jackery
Sold out
Original price $10,999.00 - Original price $10,999.00
Original price
$10,999.00
$10,999.00 - $10,999.00
Current price $10,999.00
Availability:
Out of stock

Jackery Whole-Home Backup Kit 5000 Plus (20kWh) - 60-505000-US00057 delivers reliable, eco-friendly backup power with impressive capacity and seamless operation. Designed to protect your home during outages, this powerhouse features a massive 20kWh battery capacity (expandable up to 60kWh), dual voltage output (120V/240V), and zero-emission indoor-safe performance. Whether you're powering sensitive electronics like Wi-Fi routers and desktop PCs or running high-demand appliances like dryers and ovens, this system ensures uninterrupted power with a 0ms online mode and robust 7200-14400W output. With smart app control, a Smart Transfer Switch, and five versatile charging methods including a 4000W solar input, it’s the ultimate whole-home energy solution that’s ready for storms, blackouts, and RV adventures alike.

Features:

  • 20kWh base capacity, expandable up to 60kWh for long-term backup
  • Dual voltage output: 120V & 240V for home appliances and RV compatibility
  • 0ms Online Mode ensures seamless power for sensitive electronics
  • Smart Transfer Switch allows automatic switchover for whole-home power
  • High output range: 7200W–14400W for heavy-duty devices
  • 5 charging methods including ultra-fast 4000W solar input
  • Fully charges in as little as 1.7 hours with Smart Transfer Switch or solar
  • Safe for indoor use with a zero-emission design
  • Smart app control for convenient monitoring and management
  • Durable backup performance: retains over 92% power after 1 year

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

CategoryDetails
Backup Capacity5–60kWh (supports devices up to 30 days)
Output Power7200–14400W (surge)
Voltage Output120V / 240V Dual Voltage
Charging Time1.7 hrs (Solar or Smart Transfer Switch), 3.5 hrs (AC)
Solar Input4000W Max
Charging Methods5 ways: AC, Solar, Smart Transfer Switch, High-PV, Low-PV
UPS Transfer Time0ms (Online), <20ms (Backup)
Dimensions (Power Station)16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm
Weight (Power Station)About 134.5 lbs (61 kg)
Battery Capacity45Ah / 112V DC (5040 Wh)
Cell ChemistryLiFePO4

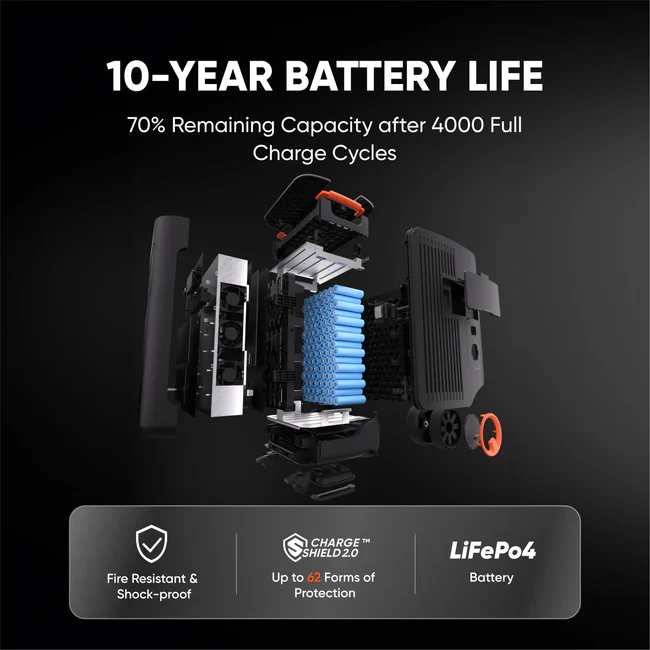

Battery Lifespan4000 cycles to 70%+ capacity
AC Output Ports(4x) 120V, 20A, 2400W
NEMA Output(1x) L14-30R/14-50, 120V/240V~60Hz, 30A, 7200W Max
USB-C Ports(2x) 100W Max
USB-A Ports(2x) 18W Max
Cigarette Lighter Port12V⎓10A
AC Expansion Port240V~60Hz, 30A, 7200W
DC Expansion Port80.5V–126V⎓41A Max
High-PV Input135V–450V⎓15A Max
Low-PV Input16V–60V⎓10.5A Max per port (2x), max 21A/1200W
Charge Temperature32–113°F (0–45°C)
Discharge Temperature5–113°F (-15–45°C)
Power Factor≥0.98
Inverter TopologyNon-isolated
Warranty5 Years
Jackery Battery Pack 5000 Plus
CategoryDetails
Capacity45Ah / 112V DC (5040 Wh)
WeightAbout 81.57 lbs (37 kg)
Dimensions16.5 x 13.5 x 13.2 in / 41.8 x 34.4 x 33.6 cm
Battery Lifespan4000 cycles to 70%+ capacity
Warranty5 Years
Charge Temperature32–113°F (0–45°C)
Discharge Temperature5–113°F (-15–45°C)
DC Expansion Port (Input)80.5V–126V⎓41A Max
DC Expansion Ports (Output)80.5V–126V⎓98A Max
Jackery Smart Transfer Switch
CategoryDetails
Dimensions22 x 14.7 x 7.87 in / 56 x 37.4 x 20 cm
WeightAbout 25.57 lbs (11.6 kg)
Operating Temperature-4°F–113°F (-20°C–45°C)
AC Voltage (Nominal)120V/240V~60Hz
Feed-In TypeSplit Phase
Max Input Current100A (Grid) / 60A (Power Station)
Max Output Current60A (Home Load) / 33.4A (Power Station)
Max Input Short-Circuit Current10KA
UPS Transfer Time≤20ms
Overvoltage CategoryIV
Enclosure TypeNEMA Type 1
Load Branches12
Main Circuit2 AWG
Branch Circuit14 AWG, 12 AWG, 10 AWG
CommunicationWi-Fi and Bluetooth
