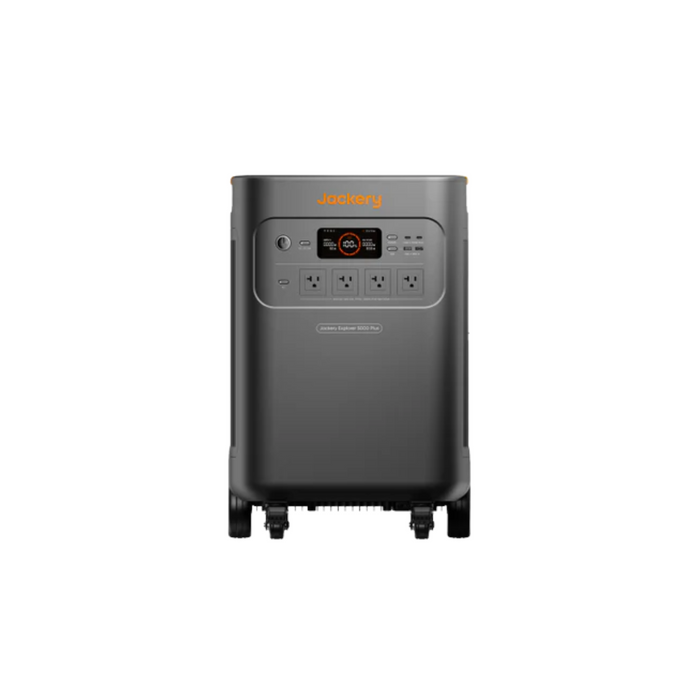

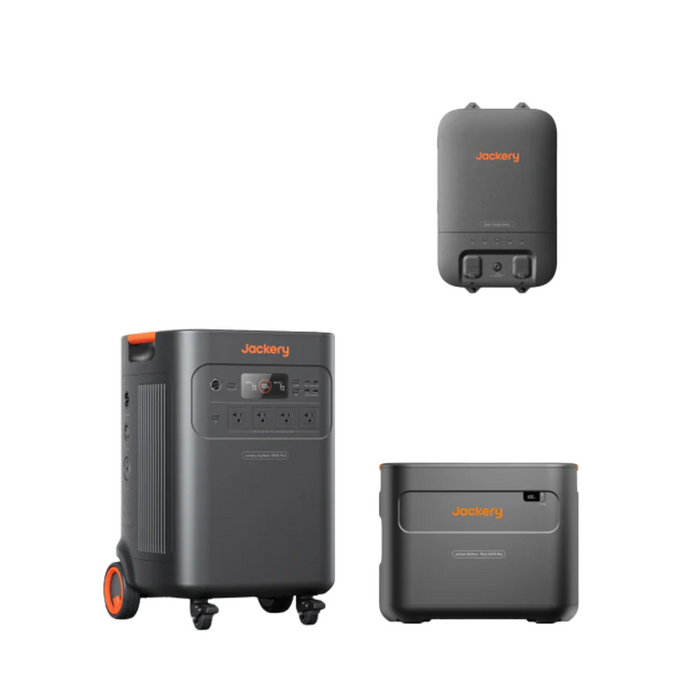

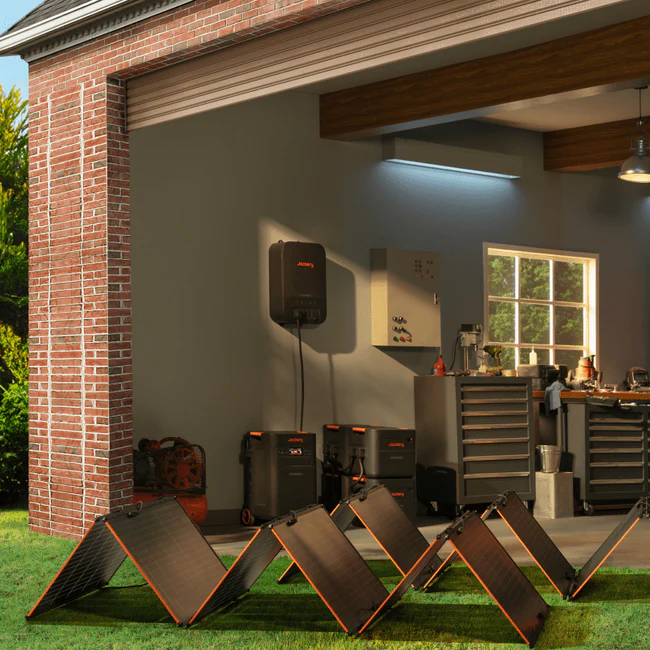

Jackery Solar Generator 5000 Plus & Smart Transfer Switch - 40-5050-USA112

SKU 40-5050-USA112
by Jackery
Original price $7,699.00 - Original price $7,699.00
Original price
$7,699.00
$7,699.00 - $7,699.00
Current price $7,699.00
Availability:
in stock

Jackery Solar Generator 5000 Plus - 60-5050-USA112 delivers robust, eco-friendly home backup power with a massive 5-60kWh expandable capacity, making it ideal for both home emergencies and off-grid adventures. With a seamless 0ms UPS switchover, your sensitive devices—like computers, routers, and fridges—stay protected during outages. This power station supports both 120V and 240V output, meaning you can run everything from kitchen appliances to power tools and portable AC units. Smart Transfer Switch compatibility ensures whole-room power without lifting a finger, while the smart app control and five versatile charging options—including 4000W solar input—make it one of the most convenient and future-ready solutions on the market. Whether you're preparing for storms or hitting the road in your RV, this power station keeps your essentials running, all with a safe, zero-emission design.

Features:

  • Power multiple essential devices for up to 30 days.
  • Supports heavy-duty appliances like dryers and ovens.
  • Keeps sensitive devices running without flicker.
  • 0ms Online Mode & 20ms Backup Mode to match power needs and conserve energy.

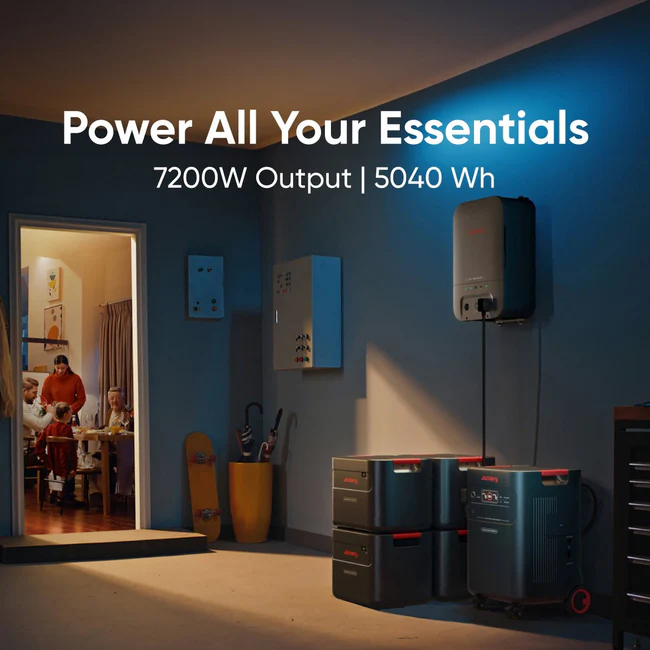

  • Seamlessly powers entire rooms during outages.
  • Run everything from a fridge to a portable AC or RV.
  • Up to 4000W input; fully charges in as fast as 1.7 hours.
  • No fumes, safe to run inside.
  • Holds 96.8% power after 3 months, 92.5% after 1 year.
  • Monitor and recharge anywhere through app controls

Order Processing and Shipping

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

CategoryDetails
ModelJackery Explorer 5000 Plus – 21-0001-000288
Battery Capacity45Ah / 112V DC (5040Wh)
Expandable Capacity5–60kWh (with add-on battery packs)
Battery ChemistryLiFePO4 (Lithium Iron Phosphate)
Cycle Life4000 cycles to 70%+ capacity
Output Power7200W continuous / 14400W surge
Voltage Output120V / 240V Dual Voltage
UPS Switching Time0ms (Online) / <20ms (Backup Mode)
Inverter TopologyNon-isolated
Power Factor≥0.98
WeightApprox. 134.5 lbs (61 kg)
Dimensions16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm
Operating TemperatureCharge: 32–113°F (0–45°C); Discharge: 5–113°F (-15–45°C)
Warranty5 Years
Output Ports
AC Output4x 120V, 20A, 2400W
NEMA L14-30R/14-50120V/240V~60Hz, 30A, 7200W Max
USB-C2x 100W Max (5V–20V, up to 5A)
USB-A2x 18W Max (5V–12V, 1.5–3A)
Car/Cigarette Lighter12V⎓10A
AC Expansion Port240V~60Hz, 30A, 7200W
DC Expansion Port80.5V–126V⎓41A Max
Input Ports
AC Charging120V~60Hz, 15A Max
Bypass AC Input/Output120V~60Hz, 12A Max; 240V~60Hz, 16.7A Max
AC Expansion Input240V~60Hz, 16.7A Max
DC Expansion Input80.5V–126V⎓98A Max
High PV Solar Input135V–450V⎓15A Max
Low PV Solar Input2x DC 8mm: 16V–60V⎓10.5A Max (double to 21A / 1200W Max)
Additional DC Input11V–16V (Working Voltage) ⎓8A Max (double to 8A Max)
AC Adapter3.5 Hours
Solar Charging (500X Panels)6.5–8.5 Hours
Smart Transfer Switch1.7 Hours (4000W Max)
Hybrid Charging (AC + Solar + STS)1.7 Hours (up to 4000W)
Car Adapter (12V)Not Supported

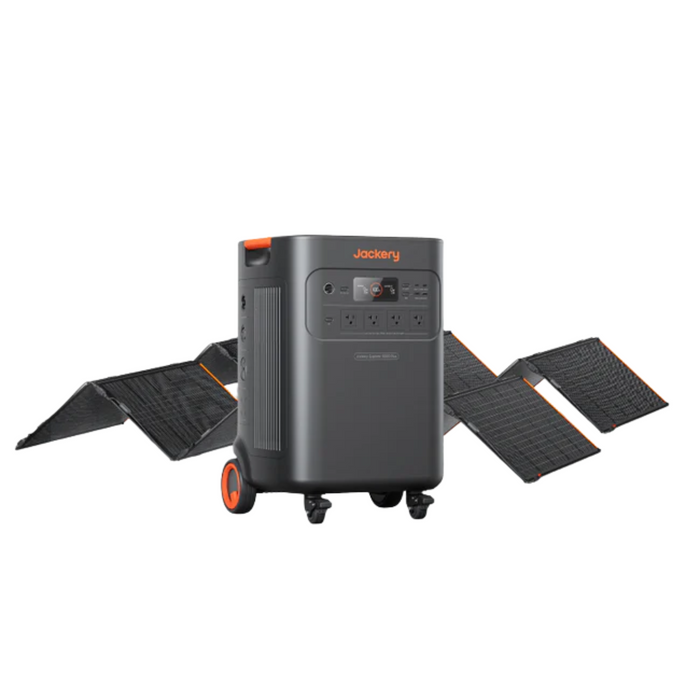

SolarSaga 500X Solar Panel
ModelSolarSaga 500X
Weight22.05 lbs ± 2.20 lbs (10.5 kg ± 0.5 kg)
Waterproof RatingIP68
Protection ClassClass II
Operating Temp Range-40 to 185°F (-40 to 85°C)
Warranty5 Years
Max System Voltage600V DC
Max Reverse Current15A
Bifaciality CoefficientPmax >80%, Voc >97%, Isc >80%
Voltage Temp Coefficient-0.26%/°C
Power Temp Coefficient-0.32%/°C
Solar Output – Standard Test Conditions (STC)
Peak Power (Pmax)500W ±5%
Open Circuit Voltage (Voc)48.5V ±5%
Short Circuit Current (Isc)13.02A ±5%
Power Voltage (Vmp)41.7V ±5%
Power Current (Imp)12.0A ±5%
Solar Output – BNPI (Bifacial Normal Plane Irradiance)
Peak Power (Pmax)545W ±5%
Open Circuit Voltage (Voc)49.2V ±5%
Short Circuit Current (Isc)13.86A ±5%
Power Voltage (Vmp)42.5V ±5%
Power Current (Imp)12.84A ±5%
SolarSaga 500X Dimensions
Folded39.21 × 20.71 × 3.82 in (996 × 526 × 97 mm)
Unfolded98.15 × 39.21 × 11.57 in (2493 × 996 × 294 mm)
