Emporia Level 2 48 AMP EV Charger UL Listed

Emporia Level 2 48 AMP EV Charger UL Listed

6 reviews
SKU EMEVSE1UL
by Emporia
$399.00 - $399.00
$399.00
$399.00 - $399.00
$399.00
Availability:
in stock
Availability:
in stock

Save 10% on select products with backtoschool at Checkout. Brand and product exclusions apply

Why Is This Product On Rise?

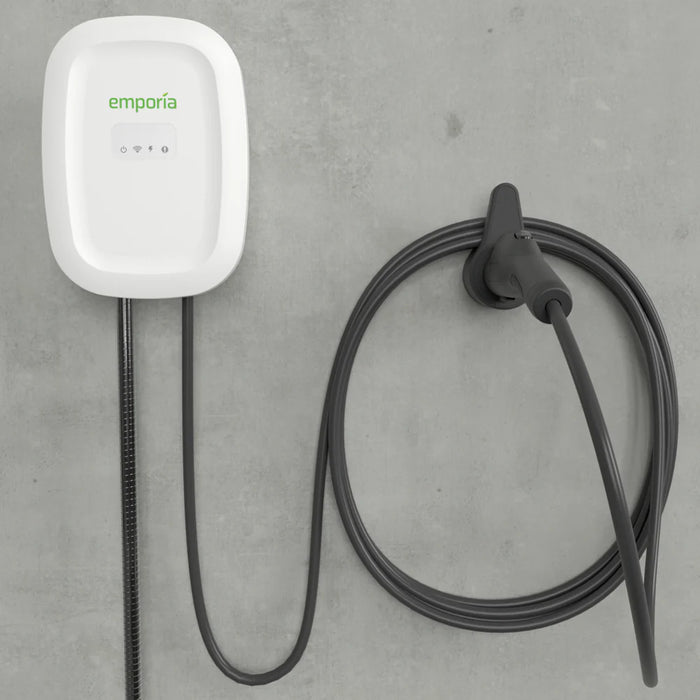

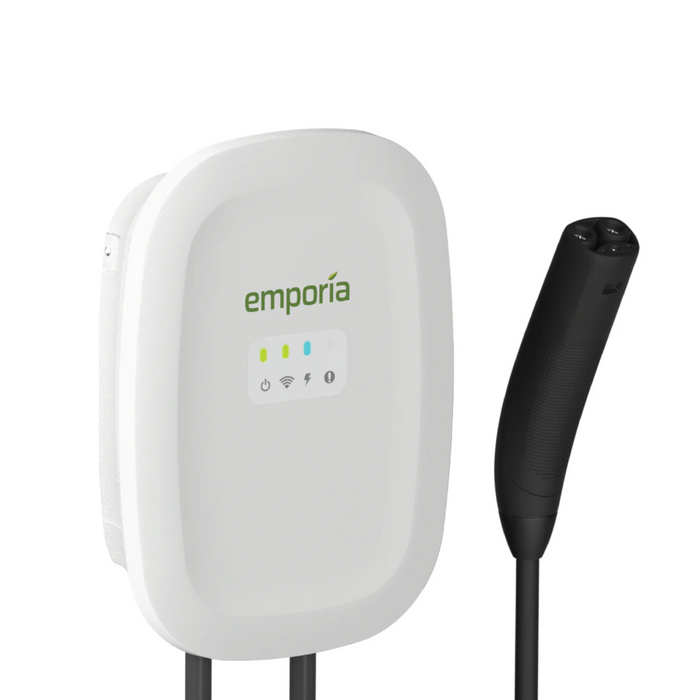

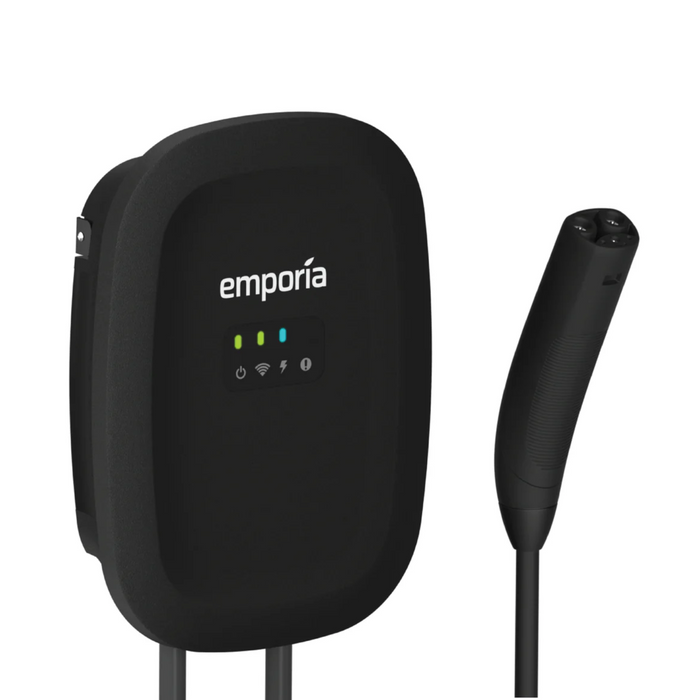

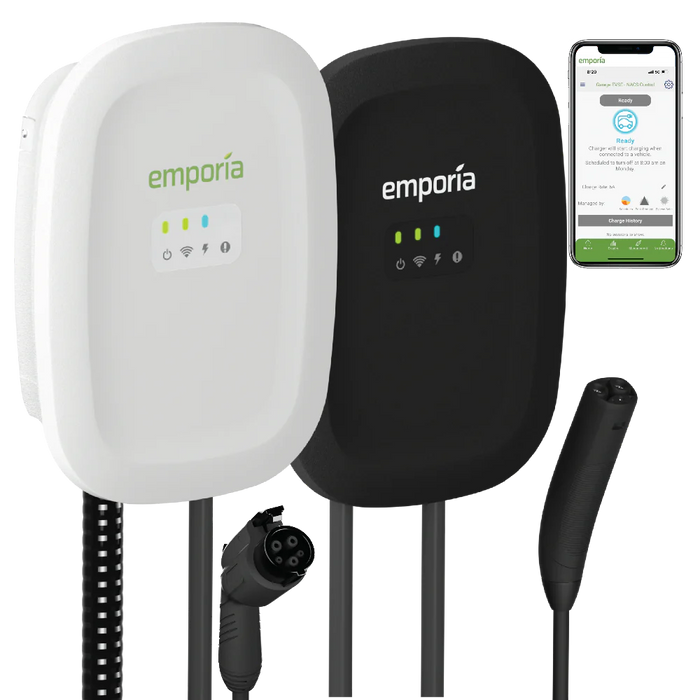

The Emporia EV Charging Station is a Level 2 electric vehicle charger that charges any EV up to 40 amps with NEMA 14-50P or up to 48 amps with hardwired installation. It has a 24' cable with an SAE J1772 connector, working with all-electric cars. Its watertight NEMA Type 4 enclosure is made to withstand the elements outdoors.

*The charger is compatible with any EV; the charger comes with an SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.

        Order Processing and Shipping

        Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Shipping times are subject to each carrier's daily cut-off time, and dependent upon warehouse turnaround. Learn more about our order processing & shipping times here.
        Carbon-neutral shipping with Shopify Planet
        Carbon neutral shipping on all orders
        3,964kg
        shipping emissions removed
        That's like...
        10,147
        miles driven by an average gasoline-powered car
        We fund innovations in...
        Direct Air Capture
        Bio Oil
        Mineralization

        Features and Specifications

        Features
        • Level 2 / 48 amp
        • Compatible with any EV (adapter required for Tesla)
        • Schedule charging with app
        • Track energy use with app
        • Integrated cable management
        • For residential and commercial
        • 2.4 GHz 802.11b/g/n WiFi
        • UL Listed
        • Easy to use and install
        TypeLevel 2 / 48A
        Input Voltage208 / 240VAC @ 50 / 60Hz
        Power Charge11.5kW (240V/48A) / 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A)
        Power WiringNEMA Type 14-50P (up to 40A) / Hardwired (up to 48A)
        Dedicated Breaker/Max Charge

        15A (2.9kW / 12A max charge)

        20A (3.8kW / 16A max charge)

        25A (4.8kW / 20A max charge)

        30A (5.8kW / 24A max charge)

        35A (6.7kW / 28A max charge)

        40A (7.7kW / 32A max charge)

        45A (8.6kW / 36A max charge)

        50A (9.6kW / 40A max charge)

        60A (11.5kW / 48A max charge) Hardwired Only

        70A (11.5kW / 48A max charge) Hardwired Only

        80A (11.5kW / 48A max charge) Hardwired Only

        Connector24’ cable SAE J1772 connector - Compatible with any EV (adapter required for Tesla)
        Charging Station dimensions12.6" x 9" x 3.4" (320mm x 230mm x 86mm)
        Charging Gun dimensions5.3" x 2.2" (135mm x 56mm)
        Required Breaker
        • Dedicated 50A+ dual pole for 40A
        • Dedicated 60A+ dual pole for 48A
        Power WiringNEMA Type 14-50P (up to 40A) with 12" cable compliant with 2017 NEC Section 625.17(A)(3) / Hardwired (up to 48A)
        EnclosureIP66 indoor/outdoor
        Ground Fault Interrupt15mA to 20mA trip sensitivity to protect against electric shock.
        Internal TemperatureCharging station internal temperature is continuously monitored and shut off if the board temperature exceeds 98° C.
        Missing Ground DetectionSafety ground is constantly monitored during operation. Charging is shut off if the ground is missing.
        Pilot SignalEV connector / cable is de-energized when exposed to a strain that could result in the exposure of live parts.
        Power interlockEV connector / cable is de-energized when uncoupled from EV
        Self CheckSequence performed during start up, every three hours, and before charging to ensure unit is working properly and safely upon power-up.
        Stuck Relay Detection Check to ensure relays are functioning properly and providing proper power gating.
        Surge DetectionConstantly monitors for power surges during operation. Charging is shut off if a surge is detected.
        Ventilation RequiredChecks for ventilation requests from EV and prevents charging if ventilation is not available.

        Downloads

        Spec Sheet download
