Default Charge Rate | 40A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand. |
---|
EMPORIA PROCONTROL | An online management system giving you total control to: - Limit access to your Emporia EV Charger
- Invite, approve, and remove drivers
- Control advanced energy management features
- Review and download reporting data for billing or
- reconciliation
|
---|
Type | Level 2 / 48A |
---|
Input Voltage | 208 / 240VAC @ 50 / 60Hz |
---|
Power Charge | 11.5kW (240V/48A) / 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) |
---|

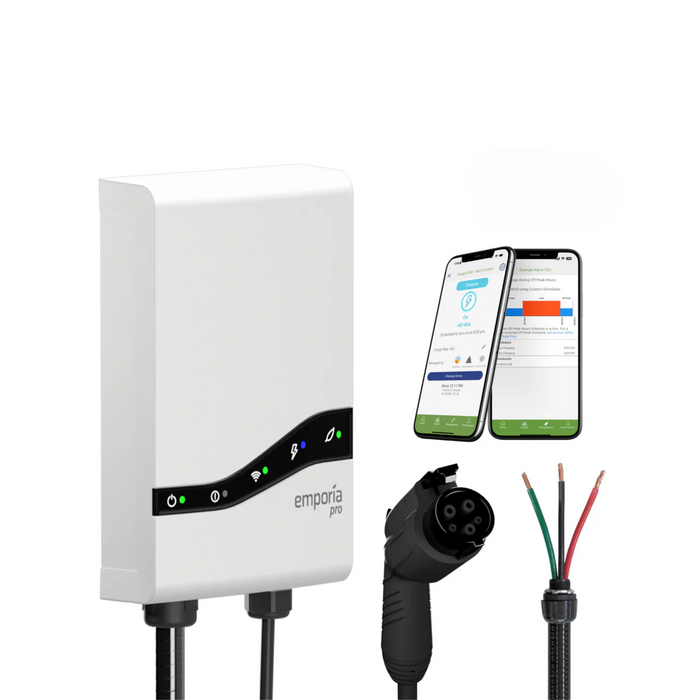

Power Wiring | NEMA Type 14-50P (up to 40A) / Hardwired (up to 48A) |
---|
Dedicated Breaker/Max Charge | 15A (2.9kW / 12A max charge) 20A (3.8kW / 16A max charge) 25A (4.8kW / 20A max charge) 30A (5.8kW / 24A max charge) 35A (6.7kW / 28A max charge) 40A (7.7kW / 32A max charge) 45A (8.6kW / 36A max charge) 50A (9.6kW / 40A max charge) 60A (11.5kW / 48A max charge) Hardwired Only 70A (11.5kW / 48A max charge) Hardwired Only 80A (11.5kW / 48A max charge) Hardwired Only |
---|
Connector | 24’ cable SAE J1772 connector - Compatible with any EV (adapter required for Tesla) |
---|
Charging Station dimensions | 12.6" x 9" x 3.4" (320mm x 230mm x 86mm) |
---|
Charging Gun dimensions | 5.3" x 2.2" (135mm x 56mm) |
---|
Required Breaker | - Dedicated 50A+ dual pole for 40A
- Dedicated 60A+ dual pole for 48A
|
---|
Power Wiring | NEMA Type 14-50P (up to 40A) with 12" cable compliant with 2017 NEC Section 625.17(A)(3) / Hardwired (up to 48A) |
---|
Enclosure | IP66 indoor/outdoor |
---|
Ground Fault Interrupt | 15mA to 20mA trip sensitivity to protect against electric shock. |
---|
Internal Temperature | Charging station internal temperature is continuously monitored and shut off if the board temperature exceeds 98° C. |
---|
Missing Ground Detection | Safety ground is constantly monitored during operation. Charging is shut off if the ground is missing. |
---|
Pilot Signal | EV connector / cable is de-energized when exposed to a strain that could result in the exposure of live parts. |
---|
Power interlock | EV connector / cable is de-energized when uncoupled from EV |
---|
Self Check | Sequence performed during start up, every three hours, and before charging to ensure unit is working properly and safely upon power-up. |
---|
Stuck Relay Detection | Check to ensure relays are functioning properly and providing proper power gating. |
---|
Surge Detection | Constantly monitors for power surges during operation. Charging is shut off if a surge is detected. |
---|
Ventilation Required | Checks for ventilation requests from EV and prevents charging if ventilation is not available. |
---|
