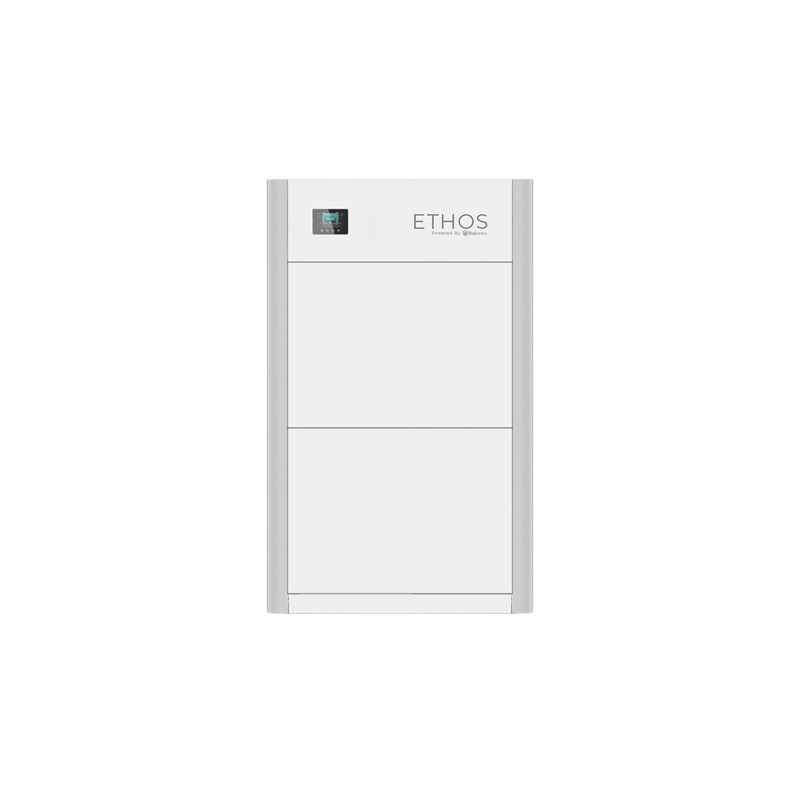

BigBattery ETHOS 48V – 5.1kWh Home Battery Backup - K0949

SKU K0949
Sold out
Original price $3,440.00
Original price $3,440.00 - Original price $3,440.00
Original price $3,440.00
Current price $2,990.00
$2,990.00 - $2,990.00
Current price $2,990.00
Availability:
Out of stock

BigBattery ETHOS 48V – 5.1kWh Home Battery Backup - K0949 delivers dependable energy storage in a modular, scalable design. Built with premium lithium cells, this UL-Certified system is designed for safety, long life, and the lowest cost-per-kWh energy independence in the USA. Each 5.12kWh module integrates seamlessly with the ETHOS controller, giving homeowners the flexibility to expand capacity as their needs grow. Backed by a 12-year warranty, the ETHOS platform provides a maintenance-free, high-performance backup solution for homes, cabins, and off-grid setups.

Features:

  • 48V 5.12kWh stackable lithium battery module
  • Seamless integration with ETHOS Control Box
  • Expandable and modular design for flexible scaling
  • UL-Certified for safety and reliability
  • Maintenance-free performance with 12-year warranty
  • Includes controller, power cable, and modules for easy setup
$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

SpecificationDetails
SKUK0949
GTIN-12 (U.P.C.)850061252074
System Voltage48V
Nominal Voltage51.2V
ChemistryLiFePO4
kWh Capacity10.24kWh
Ah Capacity200Ah
Charging Voltage Range55.6 – 57V
Max Charge Voltage57V
Operating Voltage Range48 – 57V
Suggested Low Voltage Cutoff48 – 50.8V
Cell Configuration16S 2P
Max Continuous Discharge Current200A
Max Continuous Power10240W
Max Discharge Peak Current300A (Max 5 seconds)
Max Charge Current200A
Charge Temperature Range32°F – 113°F (0°C – 45°C)
Discharge Temperature Range-4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range59°F – 95°F (15°C – 35°C)
Storage Temperature Range (SoC >50%)-4°F – 113°F (-20°C – 45°C) (Max 6 months)

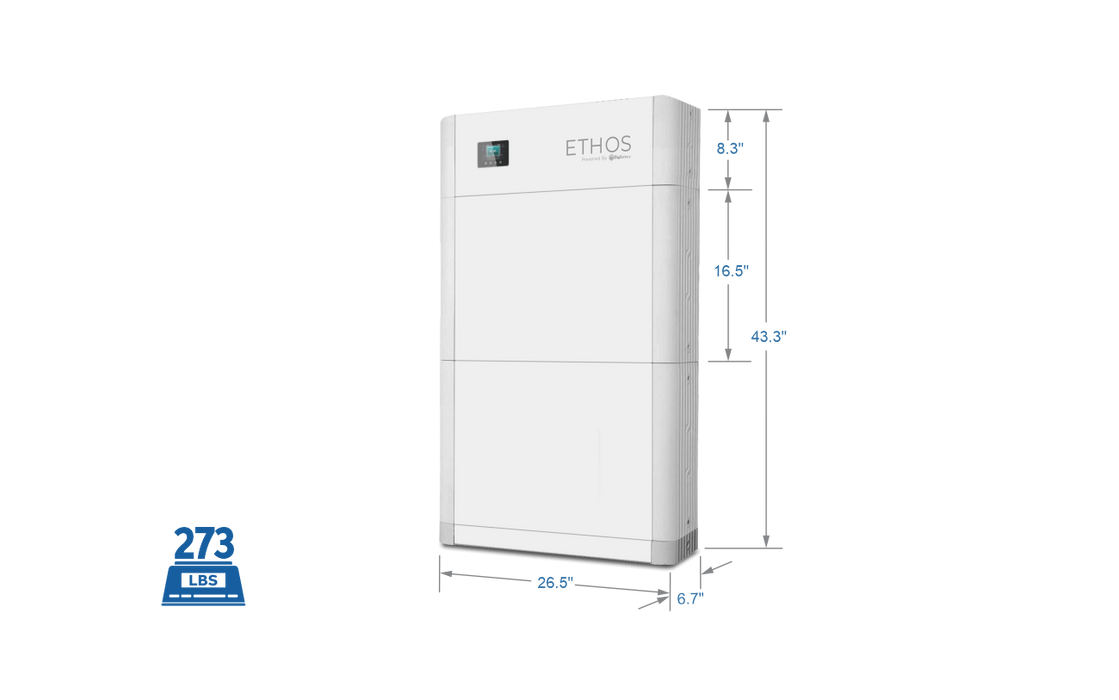

Weight273 lb (123.8 kg)
Depth6.7 in (170 mm)
Width26.5 in (674 mm)
Height43.3 in (1100 mm)
Max ConnectionsUp to (16) parallel connections per control box
Protection RatingIP65 / NEMA 4X
CommunicationsCANBus / RS485
CertificationsUL9540A, UL1973, & UN38.3
