BigBattery ETHOS 3x Expansion Kit - K0699

SKU K0699
Sold out
Original price $4,430.00
Original price $4,430.00 - Original price $4,430.00
Original price $4,430.00
Current price $3,850.00
$3,850.00 - $3,850.00
Current price $3,850.00
Availability:
Out of stock

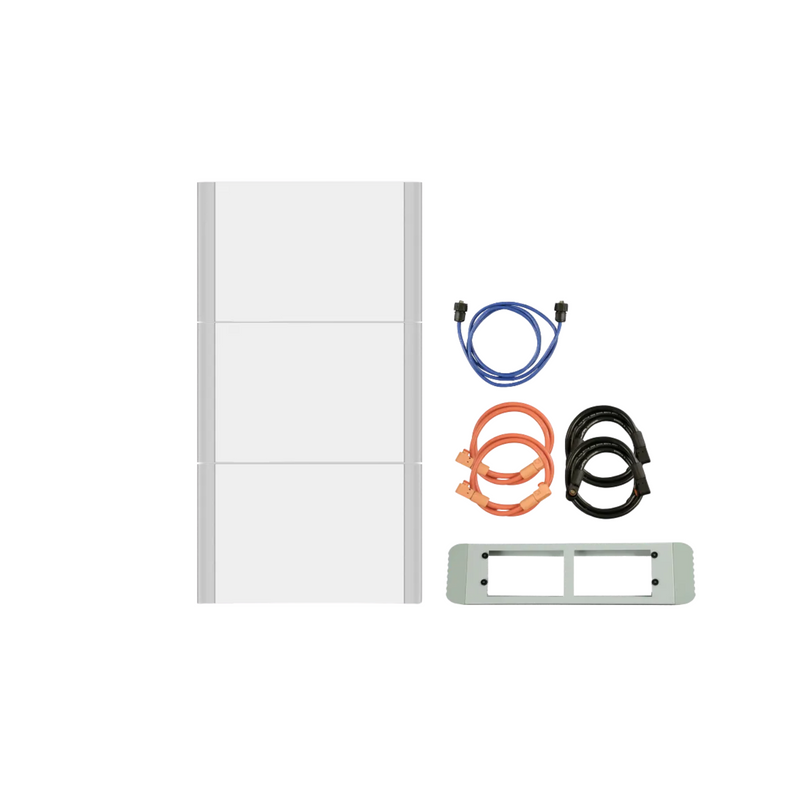

BigBattery ETHOS 3x Expansion Kit - K0699 expands your energy storage potential with an additional 15.36kWh of capacity, making it the perfect upgrade for homes or businesses with growing power needs. Designed to integrate seamlessly with your existing ETHOS system, this kit includes three 48V 5.12kWh stackable battery modules, boosting your total storage and enhancing system resilience. With essential components like the ETHOS rack base and parallel power and communication cables included, setup is simple and efficient. Backed by BigBattery’s industry-leading 12-Year Warranty, it’s a reliable investment in long-term energy independence.

Features:

  • Adds 15.36kWh of extra storage to your ETHOS system
  • Includes 3× 48V ETHOS 5.12kWh Stackable Battery Modules
  • Comes with rack base and all necessary cables for installation
  • Ideal for expanding residential or commercial backup power systems
  • Covered by a 12-Year Warranty from BigBattery
$
Price Match Promise

Found a lower price from a trusted retailer?

Request a price match

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

SpecificationDetails
SKUK0699
GTIN-12 (U.P.C.)850061252173
System Voltage48V
Nominal Voltage51.2V
ChemistryLiFePO4
kWh Capacity10.24kWh
Ah Capacity200Ah
Charging Voltage Range55.6 – 57V
Max Charge Voltage57V
Operating Voltage Range48 – 57V
Suggested Low Voltage Cutoff48 – 50.8V
Cell Configuration16S 2P
Max Continuous Discharge Current200A
Max Continuous Power10240W
Max Discharge Peak Current300A (Max 5 seconds)
Max Charge Current200A
Charge Temperature Range32°F – 113°F (0°C – 45°C)
Discharge Temperature Range-4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range59°F – 95°F (15°C – 35°C)
Storage Temperature Range (SoC >50%)-4°F – 113°F (-20°C – 45°C) (Max 6 months)
Weight273 lb (123.8 kg)
Depth6.7 in (170 mm)
Width26.5 in (674 mm)
Height43.3 in (1100 mm)
Max ConnectionsUp to 16 parallel connections per control box
Protection RatingIP65
CommunicationsCANBus / RS485
CertificationsUL9540, UL9540a, UL1973, & UN38.3
