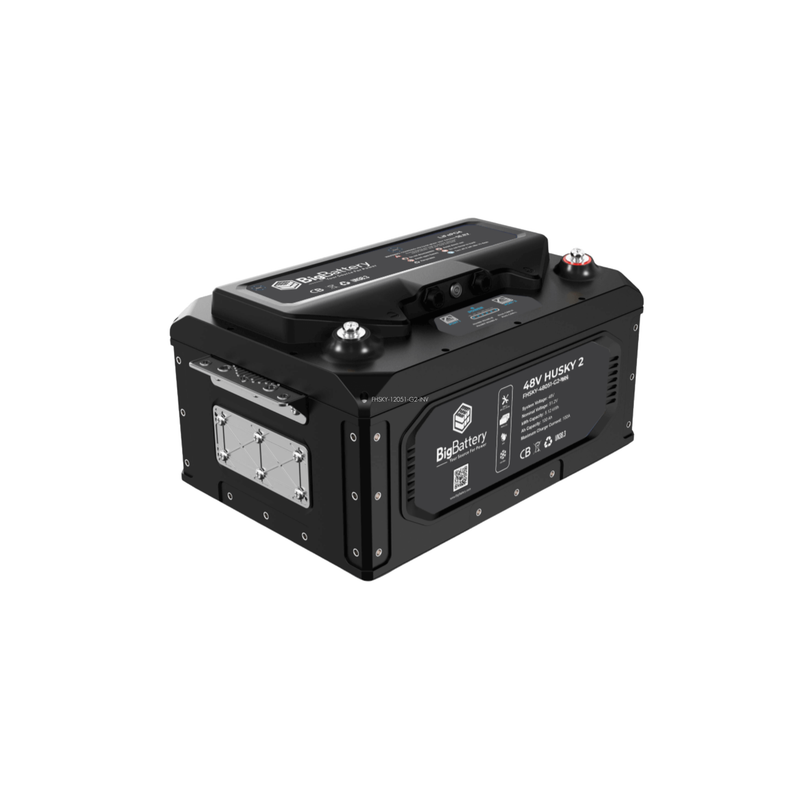

BigBattery 48V HUSKY 2 INV 5.12Kwh 100Ah LifePO4 Inverter - FHSKY-48051-G2-INV

SKU FHSKY-48051-G2-INV

Sold out

$2,060.00

$2,060.00 - $2,060.00

$2,060.00

$1,790.00

$1,790.00 - $1,790.00

$1,790.00

Availability:

Out of stock

BigBattery 48V HUSKY 2 INV 5.12KWh 100Ah LiFePO4 Inverter - FHSKY-48051-G2-INV is a powerful, all-in-one energy solution designed to meet the demands of residential, off-grid, or backup power systems. Featuring a 5.12kWh lithium iron phosphate (LiFePO4) battery paired with a built-in 5kW inverter and full communication capabilities, this unit delivers both storage and smart energy control in a compact, efficient package. With UL-certified cells, integrated BMS, and seamless inverter compatibility, the HUSKY 2 INV offers a reliable and scalable energy storage experience while ensuring long-lasting safety and performance.

Features:

5.12kWh capacity with 100Ah output at 48V
Integrated 5kW inverter with smart comms
LiFePO4 chemistry for extended cycle life
Scalable system: connect multiple units in parallel
LCD display and WiFi monitoring options
Compact, durable all-in-one design
UL1973, UN38.3, UL9540A certifications
Built-in Battery Management System (BMS)
Pre-wired and ready for plug-and-play installation

Specifications

Specification	Value
SKU	FHSKY-48051-G2-INV
System Voltage	48V
Nominal Voltage	51.2V
Chemistry	LiFePO4
kWh Capacity	5.12 kWh
Ah Capacity	100 Ah
Charging Voltage Range	55.6V – 57V
Max Charge Voltage	57.6V
Operating Voltage Range	48V – 57V
Suggested Low Voltage Cutoff	48V – 50.8V
BMS Cutoff Range	42V – 47V
Cell Configuration	16S
Max Continuous Discharge Current	150A
Recommended Continuous Discharge Current	100A
Max Continuous Power	7500W
Recommended Continuous Power	4000W
Max Discharge Peak Current	225A (Max 5 seconds)
Max Charge Current	100A
Charge Temperature Range	-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range	-4°F – 122°F (-20°C – 50°C)
Optimal Discharge Temp. Range	59°F – 95°F (15°C – 35°C)
Storage Temperature Range	-4°F – 122°F (Max 6 months)

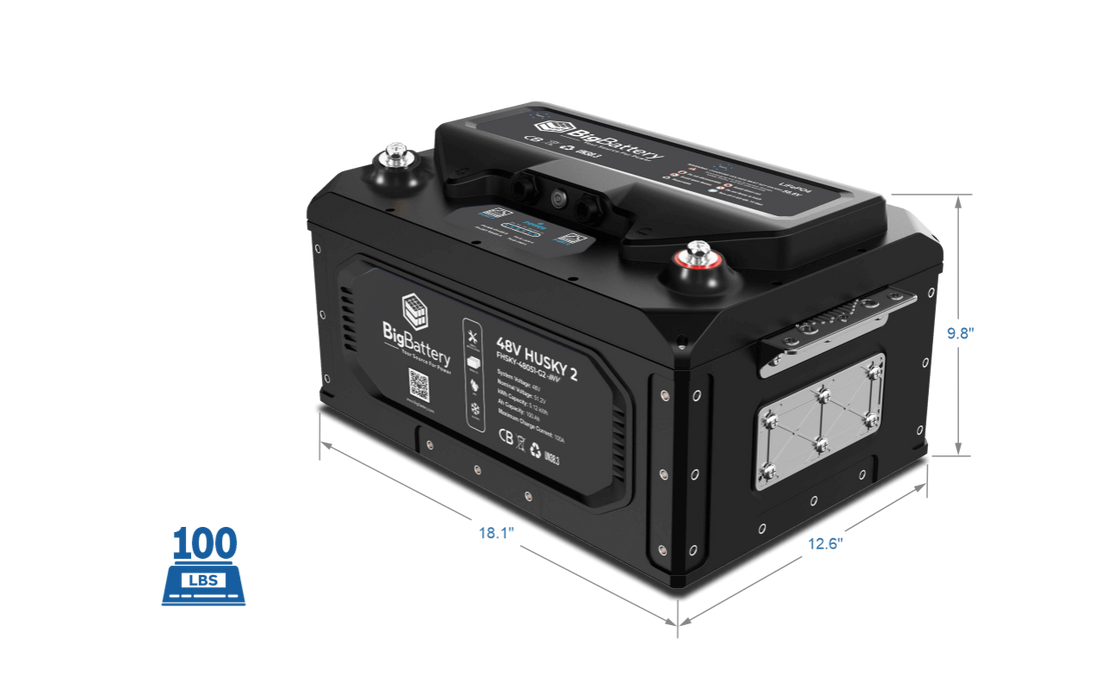

Dimensions (DxWxH)	12.6 x 18.1 x 9.8 in (320 x 460 x 249 mm)
Weight	100 lb (45.4 kg)
Max Connections	Up to 16 in parallel
Protection Rating	IP65 / NEMA 4X
Communications	CANBus / RS485
Heating Function	Yes
Inverter Communication Compatibility	Victron, Growatt, LuxPower, Schneider, Inhenergy, Voltronic, Sol-Ark, Deye, Megarevo, SMA, Solis, Afore, Studer

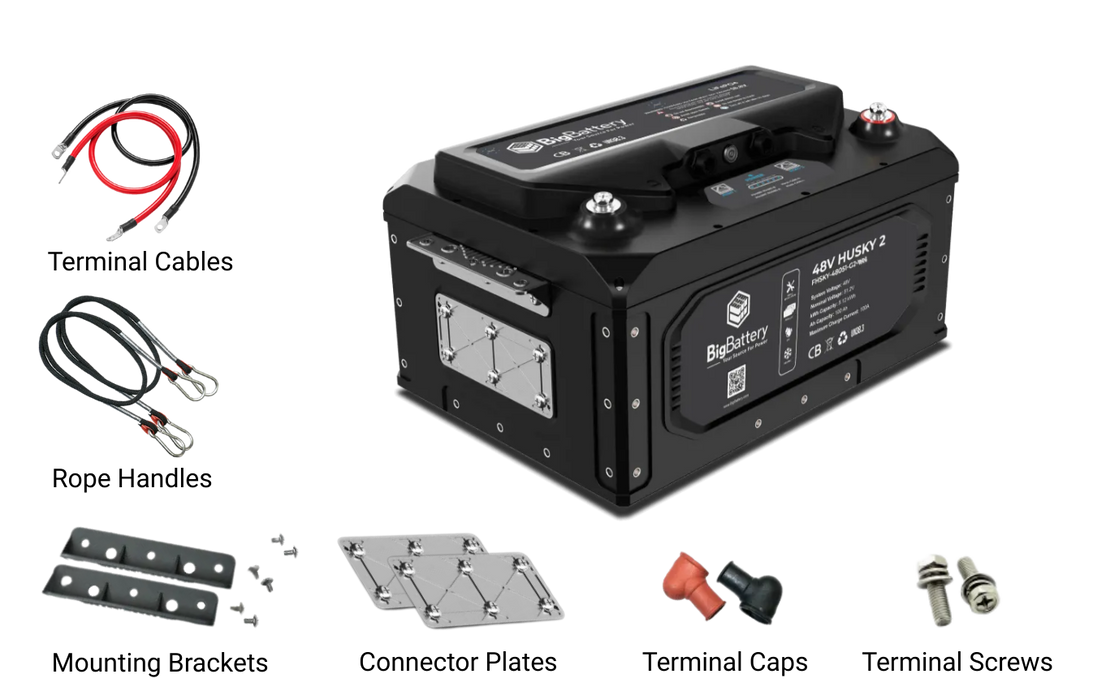

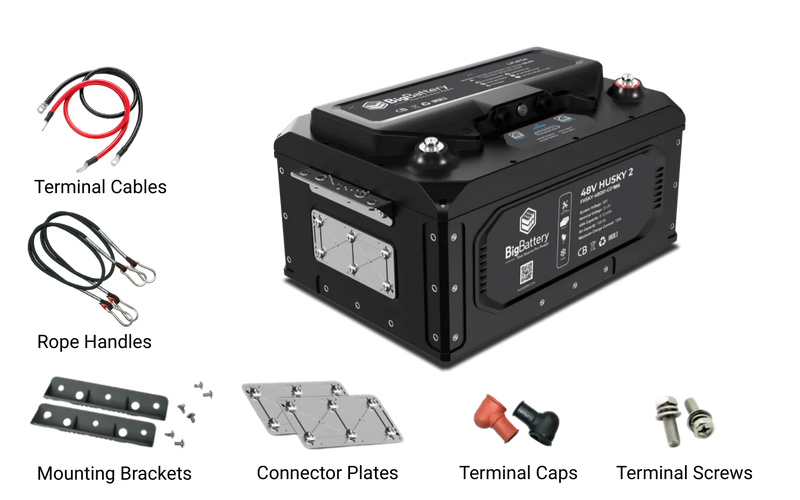

Included Components	2× Carrying Handles, 2× L Brackets, 2× M8 Screws, 1× Red & Black Terminal Rubber Cover, 1× 2AWG 3FT Ring Terminal Cable Set
