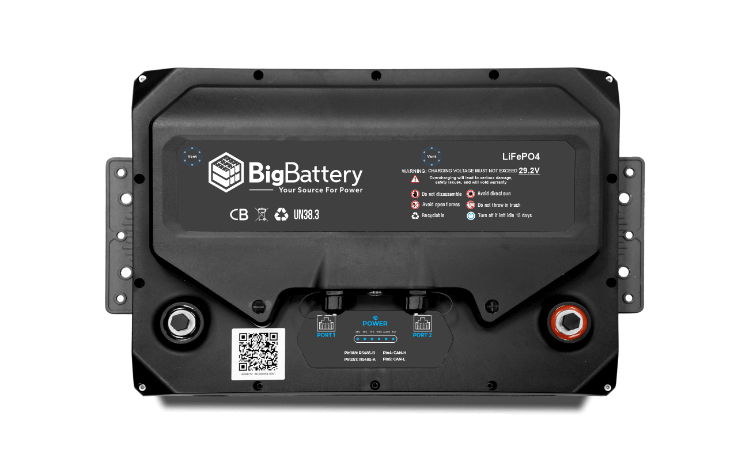

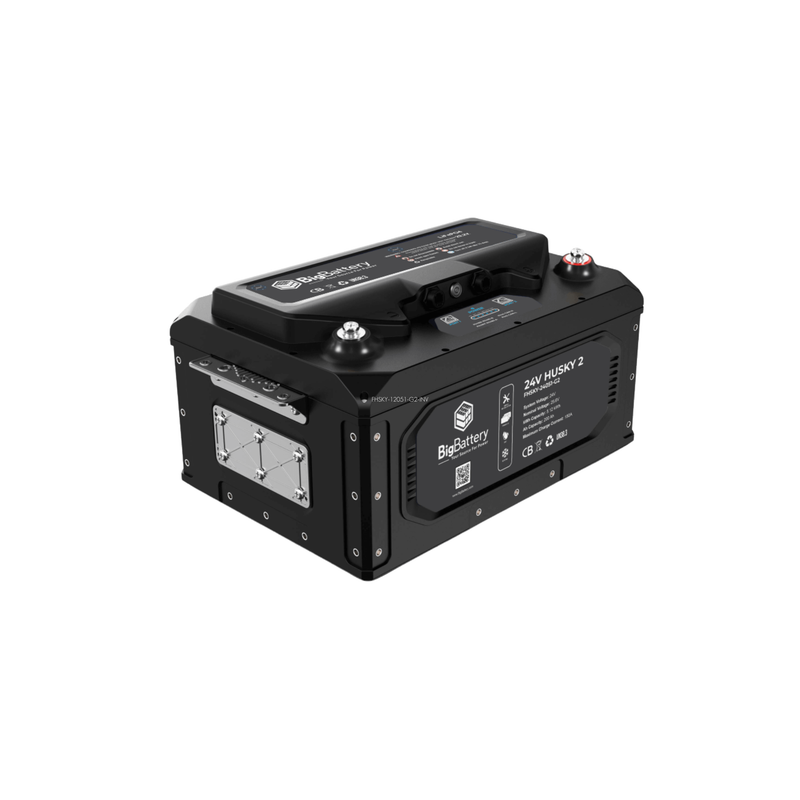

BigBattery 24V HUSKY 2 INV Lithium Battery 5.12Kwh 200Ah LiFePO4 Inverter - FHSKY-24051-G2-INV

SKU FHSKY-24051-G2-INV

Sold out

$2,060.00

$2,060.00 - $2,060.00

$2,060.00

$1,790.00

$1,790.00 - $1,790.00

$1,790.00

Availability:

Out of stock

BigBattery 24V HUSKY 2 INV Lithium Battery 5.12KWh 200Ah LiFePO4 Inverter - FHSKY-24051-G2-INV delivers reliable, high-capacity energy storage engineered for robust performance in off-grid and backup power systems. With an integrated 3kW inverter and LiFePO4 chemistry, this unit offers long cycle life, enhanced safety, and clean, efficient power—all in a compact and easy-to-install form. It’s perfect for home energy storage, RVs, and solar integrations where durability and power matter. This battery comes pre-equipped with everything you need for a smooth installation, including ring terminal cables and advanced BMS protection for peace of mind and optimal operation.

Features:

5.12kWh Capacity with 200Ah Output
Integrated 3kW Pure Sine Wave Inverter
Durable LiFePO4 Chemistry for Long Cycle Life
Built-in Advanced Battery Management System (BMS)
Easy Installation with 5/16" Ring Terminal Cables
Ideal for Home Backup, RVs, and Solar Systems
LCD Display for Real-Time Monitoring
Maintenance-Free and Eco-Friendly Design

Specifications

Specification	Details
SKU	FHSKY-24051-G2-INV
System Voltage	24V
Nominal Voltage	25.6V
Chemistry	LiFePO4
Capacity (kWh)	5.12 kWh
Capacity (Ah)	200 Ah
Charging Voltage Range	27.8V – 28V
Max Charge Voltage	29.2V
Operating Voltage Range	24V – 28.8V
Suggested Low Voltage Cutoff	24V – 25.4V
BMS Cutoff Range	21V – 23.5V
Cell Configuration	8S
Max Continuous Discharge Current	200A
Max Continuous Power	5120W
Max Discharge Peak Current	300A (Max 5 seconds)
Max Charge Current	150A
Charge Temperature Range	-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range	-4°F – 131°F (-20°C – 55°C)
Optimal Discharge Temp. Range	59°F – 95°F (15°C – 35°C)
Storage Temp. Range (SoC >50%)	-4°F – 113°F (Max 6 months)
Dimensions (DxWxH)	12.6 x 18.1 x 9.8 in (320 x 460 x 249 mm)
Weight	100 lb (45.4 kg)
Max Connections	Up to 16 in parallel
Protection Rating	IP65 / NEMA 4X
Communications	CANBus / RS485
Self-Heating Function	Yes

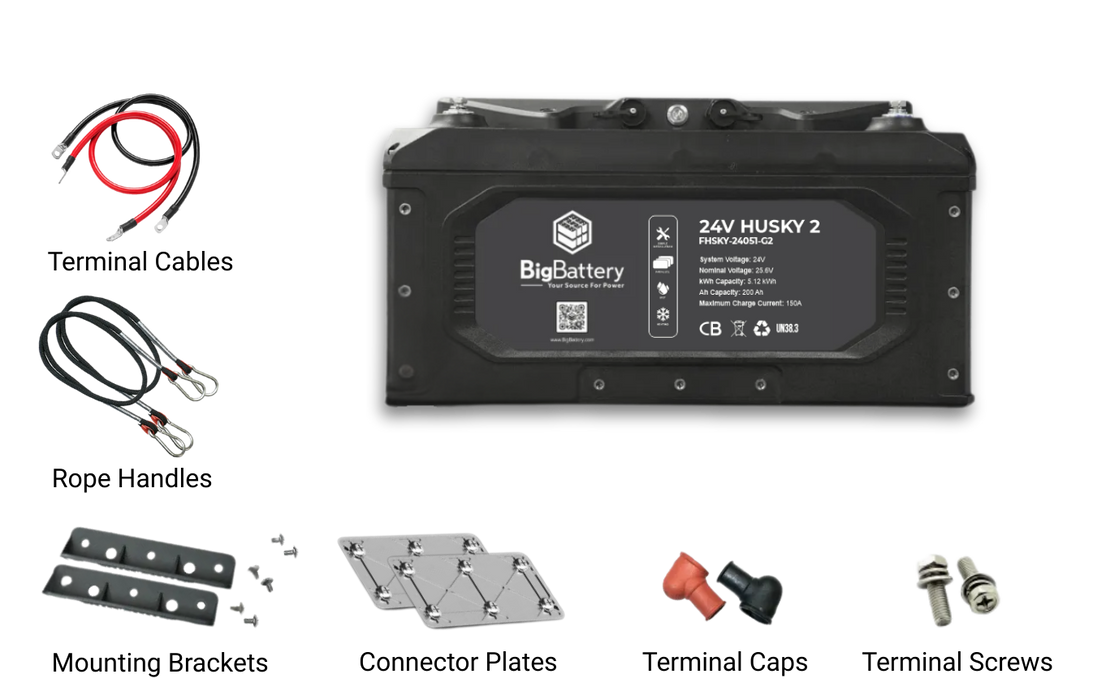

Included Components	2x Carrying Handles, 2x L Mounting Brackets, 2x M8 Screws, 1x Red & Black Terminal Rubber Cover, 1x 2AWG 3FT Ring Terminal Cables (CBL086)
