by Continental Fan

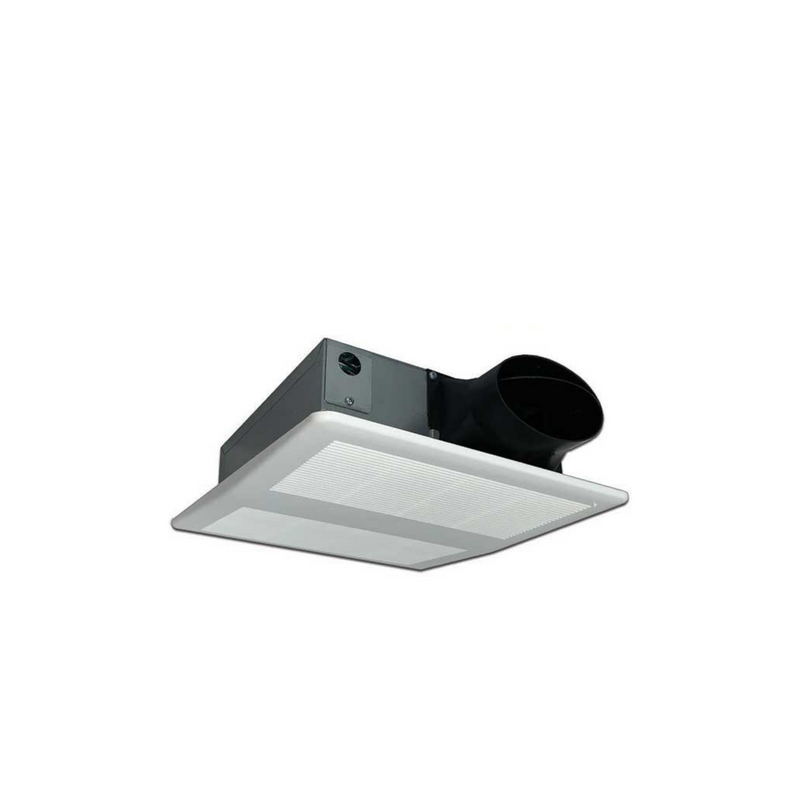

Continental Fan TF Tranquil Low Profile Bathroom Fan

SKU TF80N

$99.00 - $107.00

$99.00

$99.00 - $107.00

$99.00

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

The new TF-N Tranquil Bathroom Fans feature a low-profile design that accommodates tight space constraints and fits in a wall or ceiling. These in-ceiling fans are engineered to provide superior ventilation and efficient performance. A built-in damper prevents a backdraft, keeping tempered air in the home when the fan is not operating.

Features & Benefits of TF Low Profile Bathroom Fans

Low-profile, 3-3/8″ depth housing
Whisper-quiet operation
Superior ventilation and efficient performance
Galvanized steel housing
It May be mounted in a wall or ceiling
Clean, simple grille design
Built-in backdraft damper
Efficient AC motor
Single-phase; 120V, 60 Hz operation
Automatic reset thermal overload protection
It Fits 4″ oval duct

Quantity

Model Comparison

MODEL	TF80N	TF100N
CFM @ 0.1″ SP	80	100
SONES	0.7	1.5
WATTS	17.3	24.6
POWER RATING	120V / 60 Hz
DUCT DIA.	4″
GRILLE SIZE	13″ x 14″
HOUSING SIZES (L x W x H)	10.25″ x 10.25″ x 3.375″
WEIGHT	5.0 lbs

How much airflow is required?

HVI recommends ventilation rates based on 8 air changes per hour. For most bathrooms this works out to 1 cfm per square foot of area, with a minimum of 50 cfm.

A bathroom less than 100 square feet:
- Calculate 1 cfm per square foot of floor area. A minimum of 50 cfm is the required ventilation rate.
A bathroom larger than 100 square feet:
- To calculate the proper ventilation rate, add the cfm requirement for each fixture; toilet 50 cfm,shower 50 cfm, bathtub 50 cfm, jetted tub 100 cfm. Note: For proper sizing,the static pressure (SP) needs to be calculated.

What is HVI?

HVI, also known as the Home Ventilating Institute, is an independent non-profit organization that certifies fan performance characteristics and provides HVAC guidelines for consumers.
